Nobeltec TZ Navigator Furuno Radar Module - Digital Download TZ-101
The software download instruction and the unlock
code will be emailed to you after we receive the order online
Thanks to our partnership with FURUNO, the world’s leading marine electronics
manufacturer, TIMEZERO software offers exclusive, native compatibility (simple
Ethernet connection) with all the FURUNO DRS antennas as well as the commercial

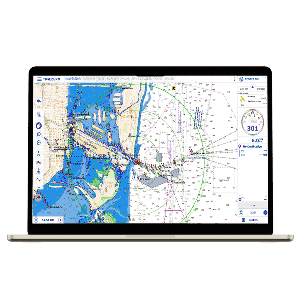

series of FURUNO FAR radars. The radar image can be overlaid directly on the
chart in order to have a better understanding of the data. TIMEZERO offers
the ability to take full control of the radar directly from a dedicated
workspace (Gain, Seaclutter, Rainclutter, etc.).
TIMEZERO can be connected to a Furuno NavNet network allowing full control of
the DRS radars (with or without an MFD on the network). This means that you can
display the radar image directly in TIMEZERO software, enjoy full control of the
Radar from your software, and overlay the radar image on your charts. Radar
overlay is an effective safety tool that allows you to understand your
surroundings in relation to your current position. The Furuno radar module is
sold as an option for TZ Navigator and is included standard in TZ Professional.
Furuno Compatibility
Furuno TZtouch2 & TZtouch3
-
Reception of all navigation
information (Position, COG/SOG, Heading, Wind, AIS, etc.) from the NavNet
Network
- Share
charts between the NavNet and TIMEZERO software
- Display
and control of the DRS Radar
- Display
and control of the Furuno Black Box Ethernet sounders
- TZ Cloud
compatibility (real time user objects synchonization)
Furuno NavNet 3D and TZT (1st
generation)
TZ Professional and TZ Navigator v4 are not anymore able to
synchronize marks and routes with NavNet3D and NavNet TZT (1st
generation) over the network (including synchronization of the active
route). Note that Radar/Sounder compatibility and sensor data through the
network (Position, Speed, Heading, AIS…) will still be supported between
TIMEZERO v4 and NavNet3D and NavNet TZT (1st
generation). If a TIMEZERO v4 user wants to exchange Route / Waypoint
with NavNet3D, the CSV file format can be used (exchanging data via SD-Card).
For exchanging data with NavNet TZT (1st
generation), the TZD file format can be used.
TIMEZERO v4 will only be able to synchronize with NavNet TZT2
after a firmware update of the MFD.
Furuno Radar FAR series
These commercial-grade radars have an
Ethernet connection that makes the connection to TIMEZERO possible, and enables
the following capabilities:
View and control the Furuno FAR Radar
from your PC
Acquire and display ARPA targets
Receive Position, COG/SOG, Heading data
from the FAR Network
Integrate TIMEZERO software with best-in-class FURUNO
radars and MFDs
The Furuno Radar Plus Pack allows the user to make the most of compatible
FURUNO radars and MFDs. Combine FURUNO hardware with TIMEZERO for a powerful
navigation solution.
The commercial-grade FAR 2xx7 series of radars can be integrated with TIMEZERO
software, responding to professional user needs.
Recreational users on the other hand, will be impressed by the advanced
integration available with the acclaimed NavNet 3D and TZtouch MFDs. The FURUNO
DRS (Digital Radar Sensors) that are on the NavNet network can be fully
integrated with TIMEZERO software, enabling the display, control and overlay of
the radar from within the software.
TIMEZERO software connects to the NavNet network and receives navigation data
directly from the network.
Combining the NavNet and TIMEZERO software systems results in an extremely fast
and user-friendly solution.
Included with TZ Trident, SportFishing and Catch
Features
When the FURUNO Radar Plus Pack is added to your TIMEZERO software
(Trident, SportFishing or Catch), a range of functionalities are unlocked,
between your FURUNO radar or MFD and software.
TIMEZERO navigation software can be connected to a Furuno NavNet3D or
TZtouch network allowing full control of the DRS radars (with an MFD present
on the network). This means that you can display the radar image directly in
TIMEZERO software, enjoy full control of the software from your software,
and overlay the radar image on your charts. Radar overlay is an effective
safety tool that allows you to understand your surroundings in relation to
your current position.
When TIMEZERO is connected to a NavNet3D network, the
following capabilities are enabled:
-
Reception of all navigation information (Position, COG/SOG, Heading,
Wind, AIS, etc.) from the NavNet3D Network
-
Real-Time synchronization of the Active Route among the PC and every
NavNet3D MFD display on the network
-
Exchange Routes and Waypoints from the PC to NavNet3D MFD(s) over the
network
-
Share charts between the NavNet3D and TIMEZERO software
-
Enable the Chart Server for the NavNet3D MFD(s)
-
View and control the DRS Radar (*)
When TIMEZERO is connected to a
NavNet TZtouch & TZtouch2 network, the
following capabilities are enabled:
-
Reception of all navigation information (Position, COG/SOG, Heading,
Wind, AIS, etc.) from the NavNet TZtouch & TZtouch2 Network
-
Real-Time synchronization of the Active Route between the PC and every
TZtouch & TZtouch2 MFD display on the network
-
Share charts between the NavNet3D and TIMEZERO software
-
Display and control of the DRS Radar (*)
(*) MFD must be present on the network
The Plus Pack also enables connection to a Furuno FAR2XX7 series
radar
when this optional Furuno Radar Plus Pack is unlocked. These
commercial-grade radars have an Ethernet connection that makes the connection
to TIMEZERO possible, and enables the following capabilities:
-
View and control the Furuno 2XX7 Radar from your PC
-
Acquire and display ARPA targets
-
Receive Position, COG/SOG, Heading data from the FAR2XX7 Network
Available TIMEZERO advanced feature
TIMEZERO Software v3
|
|
TZ Navigator v3
|
|
|
Optional
|
Optional
|
|
|
|
|
|
|
|
TZ Professional v3
|
|
|
Optional
|
|
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
|
