Furuno FAR1513 12kW Transmitter, 96nm Black Box Radar System without Monitor & Antenna & Signal Cable

Furuno FAR1513 12kW Transmitter, 96nm Black Box Radar System without Monitor & Antenna & Signal Cable




Availability: Usually ships the next business day

Brand New with Factory Warranty

Furuno FAR1513 12kW Transmitter, 96nm Black Box Radar System without Monitor & Antenna & Signal Cable
far1513List Price: $US 9,620.00Our Price: $US 8,095.00

12kW Easy to use Marine Radar with advanced capabilities, at a great value

FAR-1513-BB Marine Radar features advanced functionality in a small and easy to use package.

Auto Tuning (Sensitivity) Target Analyzer

Features

  • Target Analyzer? function

    The Targe Analyzer? function displays moving targets, stationary targets, rain, sea surface and targets closing in on your vessel in different colors. Spot hazardous targets directly, simply by their color. Target Analyzer? can improve situational awareness, hence increasing safety at sea.
  • Fast Target Tracking? (TT)

    It only takes a few seconds after a target has been selected, for a speed and course vector to be displayed. With accurate tracking information, estimating other vessels course and speed is made easier.
  • ACE function suppresses false echoes

    Quickly adjust the radar image with a single action. When Automatic Clutter Elimination (ACE) function is activated, the system automatically adjusts the clutter reduction lter and gain control according to the sea and weather conditions selected (Calm/Rough Sea/Hard Rain).
  • Customize the display according to your needs

    FAR-1513-BB offers impressive customizability and freedom when it comes to display. Choose how you want echoes to be displayed so that you can maximize visibility and efficiency.
  • Compact easy to use control unit

    Individual knobs for gain/rain/sea clutter suppression as well as RotoKey and a touch panel allow efficient, simple operation. An optional trackball unit as well as a regular USB mouse can also be used.
  • Customizable data display for efficient and simple operation

    Whether it be a close up window of approaching targets or target information, you can customize the display freely to show the information you need at hand.

  • Display Radar overlay on your connected GPS Chart Plotter

  • AIS connectivity built-in

    Connect a required AIS transponder to overlay AIS targets on the radar display. Up to 40 different targets can be tracked simultaneously.
  • High visibility MU-190 and MU-150HD Marine Display

    19" LCD MU-190 and 15" LCD MU-150HD are available as optional supply to fit the needs of your unique vessel. A high brightness display ensures great visibility in the most difficult of conditions.
  • Scalable Ethernet Network System

    The 100 Base-TX Ethernet is utilized to network two radar systems together without the need for extra devices. For convenience, you can control both radars from any of the connected displays.

Specifications

ANTENNA

Peak Output Power 12 kW
Type 1200 mm Open (4') or 1800 mm Open (6')
Frequency 9410 MHz ?30 MHz, P0N
Beam Width (Horizontal) 1.9? (XN12A), 1.35? (XN13A)
Beam Width (Vertical) 20?
Range Scales 0.125 - 96 NM
Antenna Rotation Speed 24 rpm (RSB-0070), 48 rpm (RSB-0073)
Weight XN12A: 25 kg
XN13A: 27 kg

DISPLAY

Display Unit Optional supply, 1024 x 768 (XGA)
Display Mode Head-up, STAB Head-up, North-up (TM/RM), Course-up, Stern-up
Other Mode / Functions Target Analyzer?, Fast Target Tracking? (TT), AIS, Echo Trails

ENVIRONMENT

Temperature Antenna unit: -25?C to +55?C (storage: +70?C or less)
Processor unit: -15?C to +55?C
Waterproofing Antenna unit: IP26
Processor unit: IP20 (IP22: option)
Control unit: IP22

POWER SUPPLY

Power Supply / Consumption Current Processor unit: 24 VDC: 5.0 A max. (24 rpm), 5.6 A max. (48 rpm)
Rectifier (RU-1746B-2, optional supply): 100-115/200-230 VAC, 1 phase, 50/60Hz

Equipment List

Standard

  • PROCESSOR UNIT
    RPU-024
  • CONTROL UNIT
    RCU-028
  • ANTENNA GEAR BOX
    RSB-0070
    RSB-0073
  • ANTENNA RADIATOR
    XN12A
    XN13A
  • STANDARD SPARE PARTS AND INSTALLATION MATERIALS
    ANTENNA CABLE (10/15/20/30 M), SPECIFY WHEN ORDERING

Option

  • DISPLAY UNIT MU-150HD
    MU-190
  • TRACKBALL CONTROL UNIT RCU-030
  • AD CONVERTER AD-100
  • STEPDOWN TRANSFORMER UNIT RU-1803
  • AC-DC POWER PR-240
    PR-850A
  • RECTIFIERRU-3423
    RU-1746B-2
    RU-3424
  • RADAR SIGNAL CABLE RW-4864 1M
    RW-4864 5M
    RW-4864 10M
    RW-4864 15M
  • CABLE ASSY. DVI CABLE FOR DISPLAY UNIT, DVI-D/D S-LINK 10M
  • SWITCHING HUB HUB-100
  • PROCESSOR UNIT IPX2 KIT OP03-238

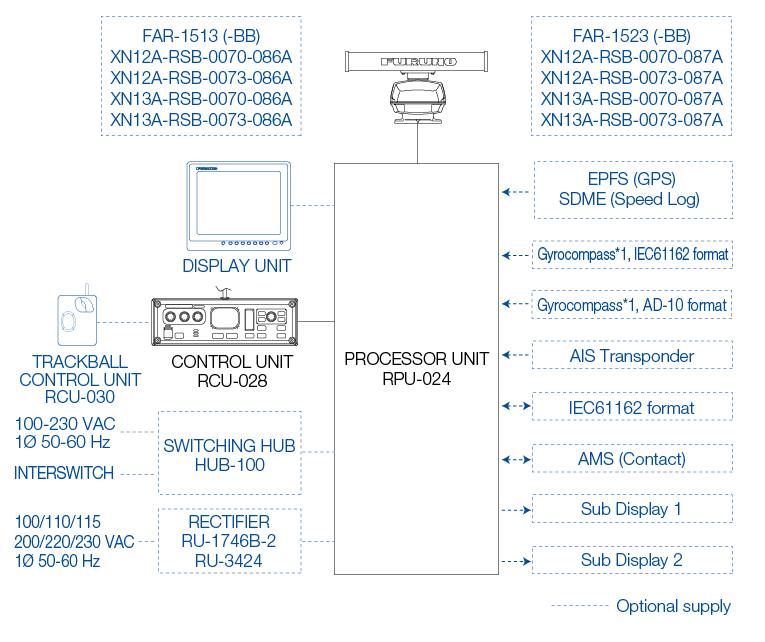

Interconnection Diagram
