Furuno FCV628 Fishfinder with 600W Bronze Thru Hull Triducer (Depth, Speed, Temp) 525ST-MSD

Furuno FCV628 Fishfinder with 600W Bronze Thru Hull Triducer (Depth, Speed, Temp) 525ST-MSD




Availability: Usually ships the next business day

Brand New with Factory Warranty

Use Promotion Code "freeshipping" to receive Free Shipping During Checkout

Furuno FCV628 Fishfinder with 600W Bronze Thru Hull Triducer (Depth, Speed, Temp) 525ST-MSD
fcv688-1List Price: $US 1,249.00Our Price: $US 859.00

High resolution fish echoes with RezBoost™ technology!

FCV-628 uses revolutionary new RezBoost™ technology, providing an incredible boost in resolution and target separation, utilizing a compact narrowband transducer.

Bottom Discrimination ACCU-FISH™ Auto Tuning (Sensitivity) Enhanced Sunlight Viewable Bonded LCD Polarized Friendly

Features

  • Dual-frequency fish finder equipped with revolutionary new RezBoost™ signal processing technology

    Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology.

    *The enhanced mode of RezBoost™ requires a RezBoost™ capable thru-hull or transom mount transducer.
  • ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

  • Bottom Discrimination - Analyze bottom structure

    Provides an at-a glance recognition of bottom composition with four types of graphical displays
    (Rocks/Sand/Gravel/Mud) when connected to a supported thru-hull or transom mount transducer.


  • White Line feature - Discriminate fish lying near the bottom

    The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish distinctly.

  • Configurable Alarm function (depth, fish echoes, etc.)

  • Share and display information on a chart plotter*

    FURUNO's TLL (Target Lat/Lon) output allows you to interface the FCV-628 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type).
    * Requires a chart plotter

  • Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

Specifications

DISPLAY

Display unit 5.7" TFT color LCD
Pixel number VGA 480 x 640

FISH FINDER

Frequency 50 and 200 kHz
Transducer 600 W
Range Scale 2-1200 m
Pulselength & PRR 0.1-3 ms, Max 3,000 pulse/min
Display Mode Single frequency (50 or 200 kHz), Dual frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH™, RezBoost™

OTHERS

Waterproofing IP56
Power Supply 12-24 VDC, 11-0.5 A
Size 207 (H) x 170 (W) x 132 (D)
Weight Bracket Mount: 1.3 kg
Flush Mount: 0.9 kg

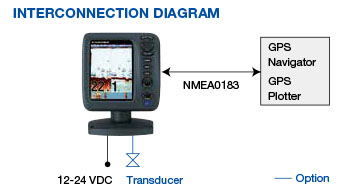

Interconnection Diagram
