JRC JMA-3336 Radar with 10.4" LCD Display &6Kw 72 NM, 3.9' Open Array

JRC JMA-3336 Radar with 10.4" LCD Display &6Kw 72 NM, 3.9' Open Array




Availability: Contact us for availability

Brand New with Factory Warranty

JRC JMA-3336 Radar with 10.4" LCD Display &6Kw 72 NM, 3.9' Open Array
jma3336List Price: $US 7,999.00Our Price: $US 6,299.00

Features

The JMA-3300 series is JRC's newest radar, featuring a 10.4-inch ultra bright LCD, and incorporates the latest digital signal processing for excellent target identification and detection in a compact design.

Display

The tough glass bonded LCD is backlit by white LED's giving 1000cd/m² of brightness, making the radar image amazingly sharp. A feature not previously found on this class of radar.



System-on-chip

JRC engineers custom designed the System-on-Chip (SoC) inside the new JMA-3300 series to be an extremely powerful tool. With such a small chip, weighing less than a sugar cube, performance remains at our high standards. At the same time, the SoC technology makes the compact radar very power efficient.

AIS and MARPA+

The new radar has the ability to display 50 AIS symbols, and 10 MARPA+ tracking targets as standard. The high quality of the display provides outstanding target definition and discrimination. The (second generation) MARPA+ continues JRC's successful MARPA+ technology first found in the previous JMA-2300 radar series. Our engineers continued developing and improving the technology, until now, with MARPA+, manual or automatic target tracking is even more reliable.

Semi-constaview

Based on JRC's patented technology found in the bigger radars, the new JMA-3300 integrates Semi-Constaview. This allows fast processing of targets, showing true trails in Head-Up mode, without interference of fixed targets, such as land or mass.

Sea trials

With Mount Fuji in the background, JRC engineers successfully tested the new JMA-3300 radar in Suruga Bay. See on the left side actual photos results of our SoC technology. Land echoes are clearly visible and smaller echoes are far more enlarged than bigger echoes, giving a better on-screen separation and identification.

MARPA+, Semi-Constaview, DirecTrak : function name

Easy user interface

Simple operation

Smooth and comfortable operation is guaranteed with the solid and responsive feel of the keys. A dedicated jog-dial is conveniently integrated as well as the function keys for one-touch access to GAIN, SEA and RAIN. The JMA-3300 also incorporates 4 soft-key switches just below the display that can be assigned by the user. Here you can specify commonly used functions, making it even simpler to navigate

Trails

Other ship's movement and speed can be monitored from length and direction of their trails, primarily serving for collision avoidance. It integrates four different trail length modes, which will show a ship's course instantly, a unique operational feature that allows for more flexibility.

Transparent menus

With the transparent (pop-up) windows, you can navigate through menus or view required data, such as own ship data or cursor data, without losing the complete radar image.

Languages

The JMA-3300 series allows you to switch between English, Japanese, French, German, Spanish, Italian, Portuguese and Norwegian.



USB

Updating your radar with the latest software is made easy with a conveniently integrated USB port on the front side of the display

Specs

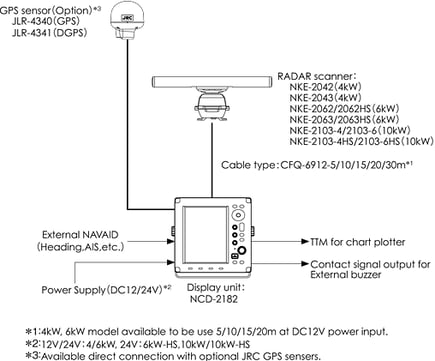

System diagram

System diagram

What's in the box

  • Display
  • Scanner
  • Cables
  • Spare parts
  • Operation guide/manual
  • Installation manual

Which cables

Display to scanner 5/10/15/20/30 m

Options

Options

Display cover

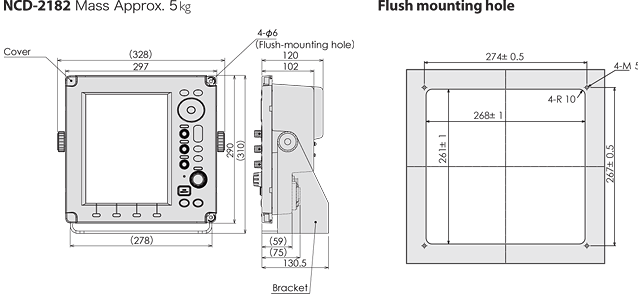

Dimensions (Display unit)

Dimensions (Display unit)

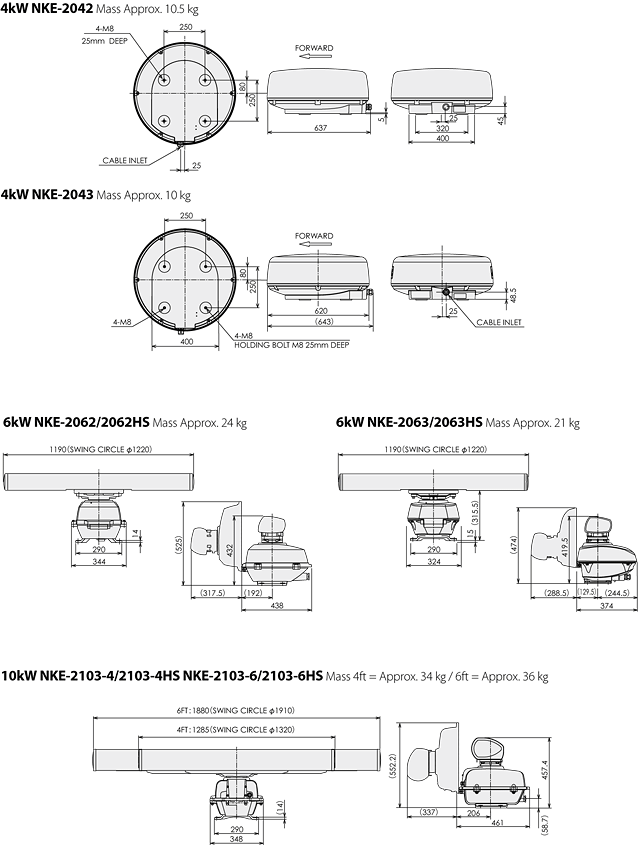

Dimensions (Scanner unit)

Dimensions (Scanner unit)

Specifications

Model JMA-
3314
JMA-
3334
JMA-
3316
JMA-
3316
HS
JMA-
3336
JMA-
3336
HS
JMA-
3340-
4
JMA-
3340-
4HS
JMA-
3340-
6
JMA-
3340-
6HS
Display color raster scan PPI
Scanners
  Model NKE-
2042
NKE-
2043
NKE-
2062
NKE-
2062
HS
NKE-
2063
NKE-
2063
HS
NKE-
2103-
4
NKE-
2103-
4HS
NKE-
2103-
6
NKE-
2103-
6HS
Transmitting frequency X-band (9410MHz ±30MHz)
Transmitting power 4kW 6kW 10kW
Scanner type radome open
Antenna length 2ft 3.9ft 4ft 6ft
Rotation speed 16-48rpm 16-
27rpm
27-
48rpm
16-
27rpm
27-
48rpm
16-
27rpm
16-
48rpm
16-
27rpm
16-
48rpm
Beam width 3dB H: 4°, V: 25° H: 2°, V: 30° H: 1.8°, V: 20° H: 1.2°, V: 20°
Pulse width/
repetition freq.
0.08µs / 2250Hz
0.25µs / 1700Hz
0.5µs / 1200Hz
1.0µs / 650Hz
0.08µs / 4000Hz
0.08µs / 2250Hz
0.13µs / 1700Hz
0.25µs / 1700Hz
0.5µs / 1200Hz
0.8µs / 750Hz
1.0µs / 650Hz
0.08µs / 2250Hz
0.25µs / 1700Hz
0.5µs / 1200Hz
1.0µs / 650Hz
0.08µs / 4000Hz
0.08µs / 2250Hz
0.13µs / 1700Hz
0.25µs / 1700Hz
0.5µs / 1200Hz
0.8µs / 750Hz
1.0µs / 650Hz
0.08µs / 2250Hz
0.25µs / 1700Hz
0.5µs / 1200Hz
0.8µs / 750Hz
1.0µs / 650Hz
Maximum range 48NM 72NM
Range scale 0.125, 0.25, 0.5, 0.75, 1.5, 3,
6, 12, 24, 48 NM
0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 72 NM
Display unit
  Model NCD-2182
Axial resolution less than 30m
Minimum detection range less than 40m
Azimuth resolution less than ±1°
Display Glass bonded 10.4-inch LCD display (640 by 480 pixels) 1000cd/m² by white LED backlight
Effective diamater more than 150mm
Presentation mode RM: North / Head / Course-up
TM: North / Course-up
Gain Auto / manual
Sea / rain Auto / manual
Trail indication 4 stages (example 1 minute to 1 hour or continuous)
Off center within 66% of PPI radius
Barge icon Available
MARPA+ acquisition mode Auto / manual
MARPA+ targets 10 targets
MARPA+ tracking 20NM
MARPA+ info To be selected from true heading, distance, COG, SOG, CPA, TCPA
Vector mode and length True/relative vector, adjustable from 1 to 60 minutes
Guard zone 2 zones
Alarms CPA/TCPA, new target, lost, system error
AIS targets (built-in) 50 targets
AIS info To be selected from MMSI, call sign, ship's name, COG, SOG, CPA, TCPA, heading, distance, longitude/latitude, status etc
Input (navaid) GGA, GNS, GLL, RMC, VTG, VBW, VHW, THS, HDT, HDG, HDM, DPT, DBT, MTW, ROT, RSA, VDM, VDO, ALR, VWT, VWR
Input (heading) IEC61162 (4800/38400bps - THS, HDT, HDG, HDM)
JRC-NSK format (JLR-20/30)
Gyro-sync/step (360x, 180x, 90x, 36x)*1
Input (speed) IEC61162 (4800bps - VBW, VHW)
Log-sync (360x, 180x, 90x, 30x)*1
Log-pulse (800, 400, 200, 100)*1
Output RSD, OSD, TTM, TLL, TTD, GGA, RMC, GNS, GLL, VTG, THS, HDT
Contact out 1 for external buzzer
Power supply DC12/24V -10/+30%*2 DC24V -10/+30%
Power consumption Approx. 60W typ.:
Approx. 85W
maximum
wind:
Approx.
230W
typ.:
Approx85W
maximum
wind:
Approx
180W
typ.:
Approx85W
maximum
wind:
Approx
230W
typ.:
Approx. 100W
maximum
wind:
Approx.
360W
Ambient conditions Temperature: -25° to 55°C (scanner) / -15° to 55°C (display unit)
Relative humidity 0% to 93% non-condensing
IP code: IP26 (scanner) / IP55 (display front panel)
Option
Installation cable(scanner to display unit) CFQ-6912-xx
(xx: 5/10/15/20/30m)*2
Gyro interface unit NCT-4106A
Display cover MTV304869
Connection cable for JLR-20 (10m) CFQ-5469

*1 : Optional Gyro interface unit NCT-4106A required.
*2 : Maximum cable length as 20m at DC12V operated

All specifications are subject to change without notification
