Nobeltec IR2-4.4 4Kw 4.5' Open Array With 10 Meter Cable

Nobeltec IR2-4.4 4Kw 4.5' Open Array With 10 Meter Cable




Availability: Usually ships the next business day

Nobeltec IR2-4.4 4Kw 4.5' Open Array With 10 Meter Cable
rhrof00004List Price: $US 7,999.00Our Price: $US 6,159.00
Whether you’re looking for a compact 2kW 20” radar solution or a 25kW 9’ open array, Nobeltec has a variety of radomes and open array units to fit your needs.

Marine Networking

If you’re looking to integrate your radar, software, and GPS unit on a PC or a network of PCs, you can use the InSight Radar 2 (IR2) to bring together the world’s best navigation software with the familiarity of traditional radar to create the ultimate navigation system. IR2 offers unparalleled chart plotting and radar abilities providing higher resolution and greater confidence.

IR2 surpasses traditional radar systems through its use of the award-winning VNS 11 and Admiral 11. These navigation programs make the IR2 easy-to-use, affordable to update and provide functionality not found on other radars. What’s more, InSight Radar 2 models can be connected to a vessel-wide network, providing all of your nav stations with radar and chart plotting data for true redundancy.

Features

  • Fully integrated with Admiral and VNS software
  • High resolution multicolor display
  • MARPA for advanced target tracking (requires heading sensor)
  • Chart overlay and stabilized radar presentation
  • One-of-a-kind multi-radar, multi-station network capabilities
  • Displays on any size computer monitor; viewing is not limited to a MFD display

Please Note

Please Note: Nobeltec radar and software sold separately.

Click here to download the Radar product brochure.



Nobeltec radar features
Nobeltec's radar solutions allow for many of your radar tuning features to be controlled directly from your computer.

Radar Features

V = Visual Navigation Suite
A = Admiral

Features V A

Full Screen Radar (PlanView) X X
Radar Overlay X X
SplitScreen Mode X X
Customizable Radar Toolbars (PlanView) X X
Off-Centering Radar Mode X X
Auto-Ranging X X
Auto-Gain X X
Auto-Sea Clutter X X
Pulse Control X X
Double Speed Mode (requires 24V)   X
Target Tracking (MARPA)   X
Multi-Monitor Radar Viewing   X
GlassBridge Network Support for Radar   X
Radar Info Panel in NavView   X
How Nobeltec radars work
Digital Radars are unique because they send radar output directly to a personal computer without the need for additional displays. Bringing the PC and radar together is normally no small task. With IR2 Radar Solutions, Nobeltec makes it easy for you.
The radar image is received by the radar transceiver and converted into a digital picture which is sent to the computer and displayed on Nobeltec Navigation Software. Heading and GPS information are sent to the computer using a standard NMEA interface.

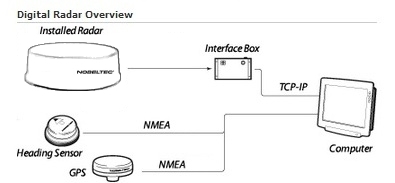

Digital Radar Overview

Digital radar overview
Nobeltec radar software features

Nobeltec radar solutions are sold separately from Nobeltec Admiral or Visual Navigation Suite. You have the choice of purchasing radar as a standalone unit or in conjunction with Admiral or VNS to provide everything you need to navigate safely.

Navigation Software Features

V = Visual Navigation Suite
A = Admiral

Features V A

Real-Time GPS Navigation X X
GPS Upload/Download Support X X
Quilting for seamless charts X X
Free Weather Overlay Support X X
Includes Tides & Currents Software X X
Customizable Toolbars and Nav Console X X
Course Up/North Up Chart Rotation X X
Autopilot Support X X
Twilight and Night Vision X X
Boundaries and Alarms X X
Chart Gridding X X
BSB 4.0 Chart Support X X
Complete AIS Support X X
GlassBridge™ Network Support   X
Multi-Monitor Support   X
Customizable Vessel Scaling   X
Track Line Coloring Using NMEA Data   X
World Chart Dongle Included   X
NavView User Interface   X
Vessel Management System Included   X
ARPA and MARPA Radar Support   X
What's in the box

Nobeltec provides you with everything you need to get your Nobeltec radar up and running.

Nobeltec Radar Includes

Radar Transceiver
Standard 10 meter radar cable
Ethernet crossover cable
Installer's Guide
Operations Manual






Minimum system requirements

Nobeltec offers several different radar models. Select a radar from the list below for specific radar information.

Minimum System Requirements* - higher system requirements may be appropriate if multiple advanced features are used concurrently:
  • Microsoft® Windows® 7, Vista™, XP Home/Professional (latest Service Pack may be required for Technical Support troubleshooting)
  • CPU: 1 GHz (Dual Core/ Dual Processor is supported)
  • Memory: 1 GB RAM
  • Hard Drive Space: 500 MB for NNS programs, plus 20 GB for charts and supplemental data
  • Display: 1024x768 resolution, 32-bit color video
  • Video Card: 64 MB RAM
  • DVD Drive
  • Serial or USB Input Ports for any directly connected instruments, such as GPS, Radar, etc.
  • USB port: At least one USB port (for Hardware Key)
  • Mouse or other pointing device
Recommended System Requirements
  • CPU: 2 GHz
  • Memory: 2 GB RAM (more if multiple features are used concurrently)
  • Video Card: 256 MB RAM and OpenGL for each monitor
  • Internet access for registration and to purchase software add-ons and charts
Radar warranty information


For US customers, Nobeltec and its manufacturers offer a limited two-year warranty on parts and a one-year warranty on labor for all Nobeltec IR2 hardware. All other customers are provided a two-year limited warranty on parts that are delivered to Nobeltec's hardware manufacturer.
Product documentation

IR2 Radar Solutions Brochure

Nobeltec provides a full-color brochure outlining many of the features and technical specifications listed on this page. Click below to download, view, and print.

Click here to download brochure. - 1.94 MB



IR2 Quick Start Guide

Nobeltec's quick reference guide for setting up your IR2 radar.

Quick Start Guide




Installation Guide

Installer's Guide



Operations Manual

This manual instructs you how to use the radar features in the InSight Radar versions of Nobeltec Admiral and VNS. A copy of this manual should have come with your radar if you purchased Admiral or VNS at the same time, but a duplicate copy can be obtained by clicking the link below.

Operations Guide



Radar Technical Specifications

Transceiver 54" open array
Rotation 24 RPM
Peak Power Output 4000 Watts
Transmitting Frequency 9410 +/- 30MHz
Beam Width 1.8° (Wide), 22° (Vertical)
Range Scales NM 1/8, 1/4, 1/2, 3/4, 1, 1 1/2, 2, 3, 4, 6, 8, 12, 16, 24, 48
Resolution Up to 1024 x 1024 pixels, 16 colors
Presentation Mode Course Up, North Up, Leg Up or Heads Up
Bearing Accuracy Better than 1%
Function FTC, Interference Rejection, Target Expansion, Auto Calibrate, EBL, VRM, Zoom, Overlay, Gain, STC, Trails
Echo Trail Intervals Continuous, 15, 30 sec., 1, 3, 6 min.
Guard Zone Omni directional – fully user defined
Min Detectable Range Better than 25 Meters at 1/8 NM range
Range Discrimination Better than 25 Meters
Range Accuracy Better than 8 Meters or .9% of max range of scale in use
Pulse Length .08 mSec/2000Hz (Short range)
.25 mSec/1000Hz (Medium range)
.8 mSec/500 (Long range)
IF Center Frequency 60 MHz
IF Band Width 15 MHz (20 MHz average) short and medium range, 5 MHz (3.0 MHz average) long range
Power Consumption 70 Watts or less
Voltage Supply 10.8 to 41.6 VDC
PC Interface 10/100 ethernet connection - Cat 5 or better
Cable Length Provided 2 Meters standard crossover ethernet. (Control box to PC.)
Operating Temperature -13° to 131° F (-25° to 55° C)
Wind Force 100 knots relative
Water Resistance IPX6 (IEC60945)
Transmission Speed Up to 460 kbs
Output Radar image video by proprietary protocol
Input Radar control by proprietary protocol
Dimensions, Weight 4.5' W x 17.7" H, 49 lbs.
