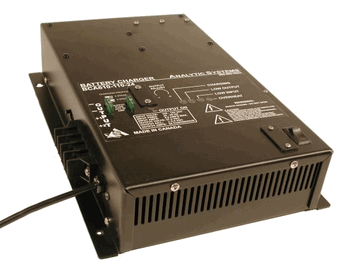

Analytic 17A, 32 V, 110 V AC, 60 Hz, 2 Bank, AC Battery Charger BCA610-110-32
BCA610 AC Battery Charger
NSN#
BCA610
BENEFITS
- Ultra-Quiet
- Power sensitive electronics without interference
- Rugged & Reliable
- Ensure years of safe and trouble free operation
- Fast & Accurate Charging
Benefits
- Ultra-Quiet
- Power sensitive electronics without interference
- Rugged & Reliable
- Ensure years of safe and trouble free operation
- Fast & Accurate Charging
The BCA1000 battery charger provides up to 1000 watts to charge a 12, 24, 32,
or 48 Volt battery system (1, 2 or Optional 3 banks) from a 110 or 220VAC
source. The batteries must share a common ground.
This all-new single board design incorporates state of the art switch mode
technology for unmatched efficiency and ultra-quite operation. Multiple stages
of filtering reduce radiated or conducted noise to very low levels. Extra
features include adjustable output voltage, audible and visual indicators for
low input voltage, low output voltage, over temperature and an equalize charging
cycle. Safety features include charger and battery over-temperature shutdown,
current limiting, short circuit protection with automatic recovery, input under
voltage shutdown, reverse battery hook-up protection, a dry contact alarm relay
output and output overvoltage crowbar.
Features
- Ideal as Global Marine Distress Safety System (GMDSS) power supply when
equipped with optional voltmeter and ammeter.
- Adjustable output voltage for charging standard or deep cycle lead-acid,
VRLA or Gel cell type battery
- Temperature compensated charging
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Can be left permanently connected
- Can function as a power supply
- Dry contact output fail relay
- User selectable 2 or 3 stage charging profile
- 3 Bank Option Available
- Audible & visual indicators for output overload, low input voltage, low
output voltage & over-temperature
- Over-temperature shutdown
- Short circuit protection
- Output over-voltage crowbar
- Inrush Current Limiting with solid state bypass
- Thermostatically controlled fan
- 3 year parts and labour warranty
Applications
- Marine & other rugged environments
- Automotive / RV
- Electric Utilities and Substations
- Base Station Power(Radio & Telecommunications)
- OEM Applications
- Field Work / Construction Sites
- Solar Power Systems
- Emergency Power Backup (UPS)
- Security Systems
- Charge any 12, 24, 32, or 48 Volt Battery System
Electrical [Input]
| Nominal Vac (ip) |
110 |
220 |
| Actual (Vac) |
105-125 |
210-250 |
| Input Amps (Max) |
14.6 |
7.3 |
| Input Circuit Breaker |
20A/ 15A(12V) |
10A/ 8A(12V) |
| Input Frequency |
45-65 Hz |
| Noise on Input |
< 50mV |
Electrical [Output]
| Output Nominal (op) |
12 |
24 |
32 |
48 |
| Output Volts (DC) |
13.6 ± 0.05 |
27.2 ± 0.05 |
36.3 ± 0.05 |
54.4 ± 0.05 |
| Absorption Voltage (Vdc) |
14.4 |
28.8 |
38.4 |
57.6 |
| Charging Amps |
60 |
40 |
30 |
20 |
| Absorption to Float(15%) |
9Amps |
6Amps |
4.5Amps |
3.0Amps |
| Output Adjustment(Vdc) |
± 1.0V |
| Output Fuses(AGC) |
40Amp x2 |
40Amp x2 |
40Amp x2 |
30Amp x2 |
| Battery Banks |
1 or 2 (3 Bank Option Available) |
| Battery Size( Amp Hrs.) |
240-360 |
160-240 |
120-180 |
80-120 |
| Output Crowbar |
16.0 ± 0.5V |
32.0 ± 1.0V |
42.7 ± 1.3V |
63.9 ± 2.0V |
| Output Ripple & Noise |
< 50 mV |
| Regulation (Line & Load) |
< +/- 0.5% |
| Temperature Comp. |
-30 mV/°C |
-60 mV/°C |
-80 mV/°C |
-120 mV/°C |
| Duty Cycle |
Continuous 100% for 24 hours per day |
| Efficiency |
> 75% @ Maximum Output |
| Stages |
2 or 3 (user selectable) |
Environmental Specification
| Operating Temp. Range |
-25° to +40°C @ maximum output
Derate Linearly 2.5% per °C from 40°C
(Optional -40°C extra wide temp. operation avail.) |
| Humidity |
0 - 95°C Relative Humidity
(non-condensing) with optional conformal coating |
| Audible Noise |
NONE - 0db @ 3 ft |
| Typical Service Life |
>10 years (87,600 hours) |
| Isolation |
Input-Case & input-output 1500VDC
Output - Case 500VDC(1500VDC @ 48V O/P) |
Mechanical Specification
| Length |
14.5 in/ 36.8 cm |
| Width |
9.9 in/ 25.1 cm |
| Height |
5.5 in/ 14.0 cm |
| Clearance |
1 inch (2.5 cm) all around |
| Material |
Marine Grade Aluminium |
| Finish |
Black Anodize / Powder Epoxy Coat |
| Fastenings |
All 18-8 Stainless Steel |
| Weight |
12.0 lb / 5.5 kg |
| Connections |
Four contact output terminals |
| Warranty |
3 years |
| Safety |
Built to meet UL458 & CSA22.2.107.1 |
|
