Furuno TZTL15F NavNet TZtouch2 15.6" Multi Function Display Chart Plotter/Fish Finder

Features

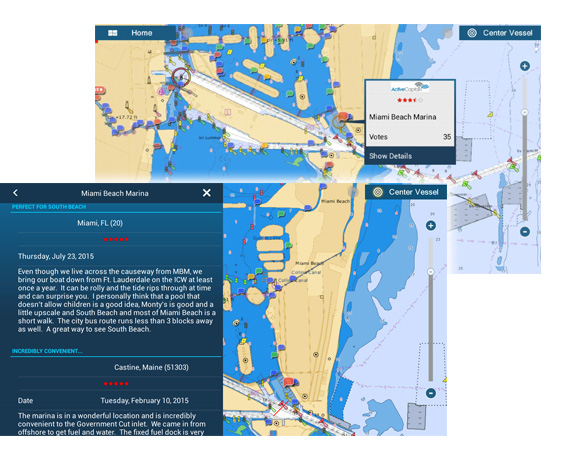

ActiveCaptain - Points Of Interest, directly on your NavNet TZtouch2

NavNet TZtouch2, the worlds first Multi Function Display with ActiveCaptain functionality*. Share the experience together with other boaters around the world, browse and discover new points of interest. With a community of 250,000 users, reliable and updated information on fuel prices, marinas and obstructions are all available at the tip of your fingers.

*Available in next software update, coming late 2015.
Built-in Fish Finder with RezBoost technology

The built-in Fish Finder is a dual-frequency (50/200kHZ), 600W/1kW power output sounder. It's the first product form FURUNO to incorporate the new revolutionary RezBoost technology. The RezBoost signal processing technology improves target resolution as well as target separation without the need to change out your transducer, or purchase expensive broadband transducers*.

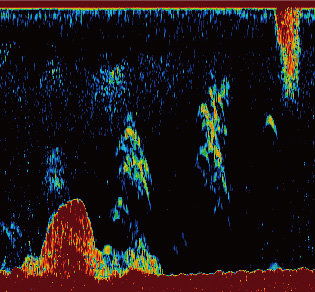

Conventional Signal Processing

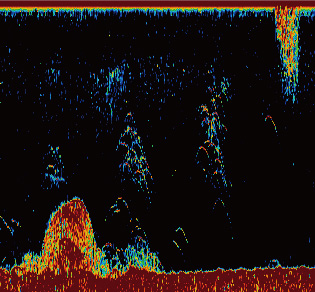

RezBoost Signal Processing

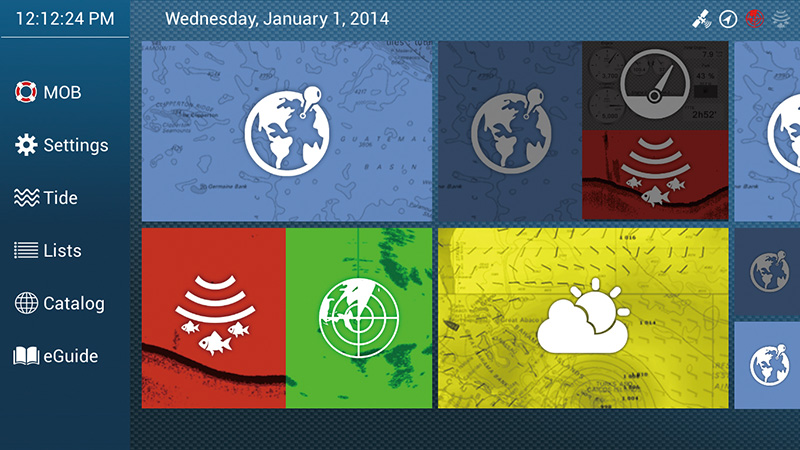

NavNet TZtouch2 features a graphical user inteface that has been renewed and refined, focusing on usability and ease of operation.

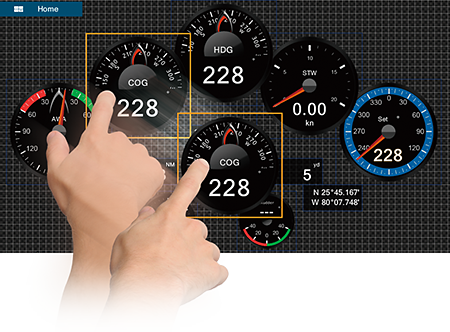

Instrument Display & Customization

An instrument display like nothing you have seen before. Totally customizable, totally simple.
NavNet Remote and NavNet Controller* apps for iOS and Android devices

*iOS version coming soon.
Built-in GPS antenna

A 56-channel GPS Receiver is built right into the display. You can still connect an external antenna for redundancy, but the primary GPS receiver is built-in, saving you money on additional equipment and installation cost.

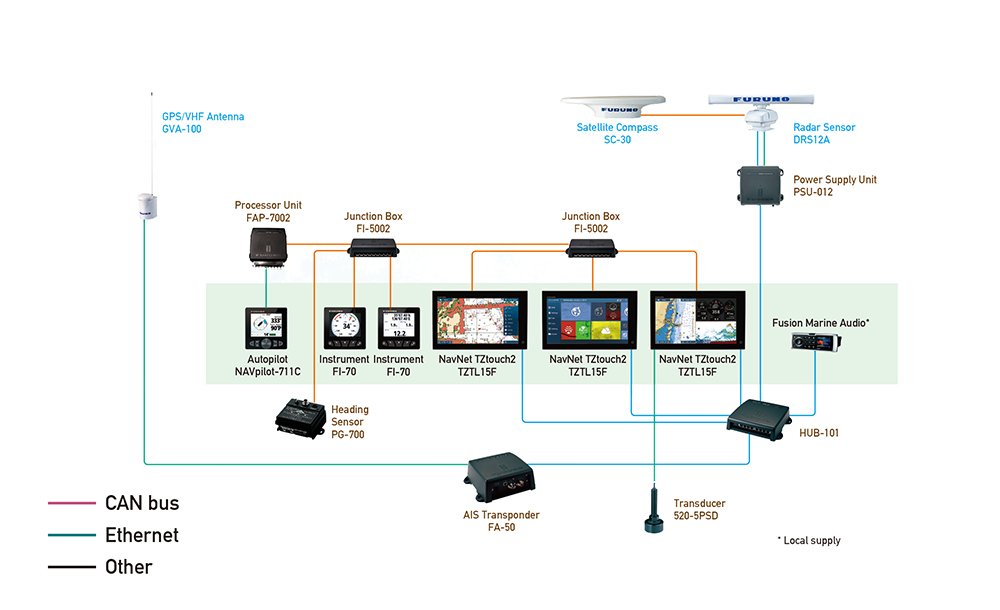

Designed to perfectly match the NavNet NAVpilot 711C and the FI-70 instrument on your helm

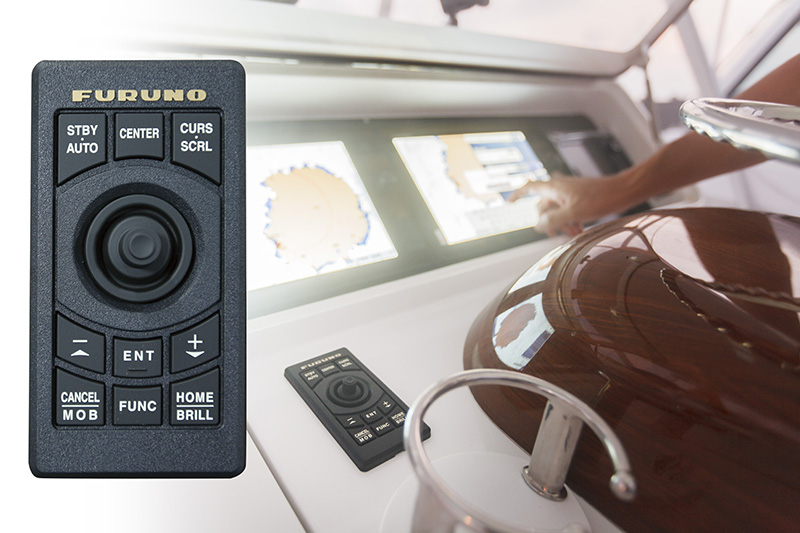

Compact, waterproof remote control unit for easy operation

Remote Control Unit (MCU-002) is a compact, waterproof and with a small footprint that is easy to install and operate anywhere on your vessel. The Remote Control Unit works as a supplement to the multi touch operation of NavNet TZtouch2.

Specifications

DISPLAY

Display Unit	15.6" Wide Color TFT multi touch LCD
Screen Brightness	1100 cd/? (typical)
Screen Resolution	FWXGA 1366 x 768 pixels
Language	English (US & UK), French, Spanish, German, Italian, Portugese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese (simplified Chinese characters), Japanese

PLOTTER

Chart	MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
Memory Capacity	30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)

RADAR

Display Mode	Head-up, North-up* *Heading input required.
Target Tracking	30 Targets* *Heading input required.

FISH FINDER (INTERNAL)

Transmit Frequency	50/200 kHz
Transmission Power	600 or 1kW* *Matching box MB-1100 required for some FURUNO transducers.
Display Mode	RezBoost, ACCU-FISH, Bottom Discrimination, A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom Lock

GPS / WAAS (INTERNAL)

Receiving Type	GPS: 56 Channels SBAS: 1 channel (C/A mode, WAAS)
Receiving Frequency	L1 (1575.42 mHz)
Accuracy	GPS: 10 m Max WAAS: 3 m Max MSAS: 7 m Max

INTERFACE

CAN bus	1 Port (NMEA2000)
NMEA0183	1 Integrated Output Port
LAN	1 Port (100 BASE-TX)
USB	1 Port (USB 2.0)
Video Output	1 Port (HDMI)
Video Input	2 Ports (NTSC/PAL)
AUX I/O	1 Port (External Event/MOB Input/Operator Fitness/Alarm Output)
SD Card Slot	1 Slot (Micro SDXC, rear) 2 Slots Card Unit (optional)
Wireless LAN	IEEE802.11b/g/n, Transmit Frequency: 2.4 GHz band
Transducer	1 Port
Waterproofing	IP56
Power Supply	12-24 VDC 3.6-1.8 A
Size	Flush Mount: 256 (H) x 410 (W) x 109 (D) mm Tabletop Mount (optional): 282 (H) x 444 (W) x 116 (D) mm
Weight	Flush Mount: 4.8 kg Tabletop Mount (optional): 5.5 kg
