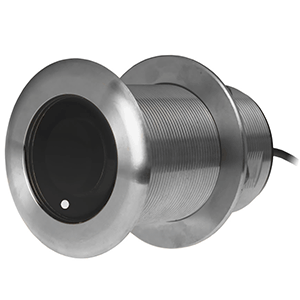

XSONIC SS75M Stainless Steel Thru-Hull Medium CHIRP Transducer - 12°
Element - 9-Pin
SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and
temperature transducer. The ceramic element is tilted for built-in deadrise
compensation, giving excellent echo returns for more accurate depth
- 600 W Thru Hull Medium CHIRP (80-130kHz)
- Depth/Temp (12° tilt)
- Black 9-pin connector
- Cable length 10M (33.0')
- Easy to install
CHIRP transducers enable bottom detection with 5 to 10 times greater detail
and resolution so precise it’s possible to distinguish between individual
baitfish, game fish, and underwater structures.
Calculates how deep the water is, so that you can avoid running aground,
while also incorporating a temperature sensor for accurate water temperature
CHIRP range is 80kHz-130kHz for good target detail in shallow water and
excellent bottom tracking in deep water.
Provides extremely accurate data.
The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
The low profile housing minimizes drag with just 5mm extending outside of the
Plug & Play Connection
Easily connect to NSSevo3
