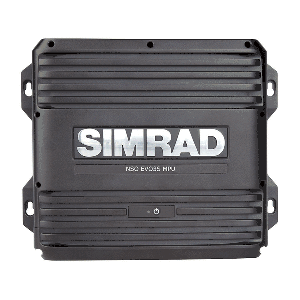

Simrad NSO evo3S MPU Processor
Simrad NSO evo3S MPU Only
Model: 000-15100-001
- Large-Screen Navigation
System
- Multi-TouchSensible (with
compatible display)
- Dual Independent Video
Output
- Full HD Video
- Performance Module
compatibility
- Cartography Choice
- Smaller, lighter design
- Quad-Core Processing Power
- Independent HDMI output
ports allow different setups on each display
- 2 x Quad core processors
- Dedicated processor per
monitor gives superior speed and chart draw performance
- Control both NSO evo3S MPU
monitors direct from your Ipad or Android Tablet.
- Multi zoom touch gestures
- Naviconics Depth Highlight
range
- Naviconics shallow water
highlight
- AIS Sarts
- Fusion Link Audio Device
Support
- Grib Weather
- Flir Camera integration
- GS25 Antenna Configuration
Specifications
|
Mechanical / Environmental |
| Casing |
ABS Plastic |
| Operating
Temp |
-15°C to
+55°C |
| water
ingress |
IPx2 |
| Weight |
1060g |
| dimensions
(overall) |
281mm (W) x
232mm (H) x 65.5mm (D) |
|
Electrical |
| Operating
voltage |
9 - 31.2 V
DC |
| Power
consumption |
45W (Max) |
| Low power
standby mode |
yes |
| Protection |
reverse
polarity and temporary over-voltage to 36V |
| Alarm
output current |
capable of
driving 10A relay coil |
| Processor |
iMX61 quad
core |
| RAM |
DDR3 1GB |
| Storage |
8GB Flash |
| Conformity |
CE, C-Tick,
HDMI |
|
Interfaces |
| ethernet |
3 ports
total - 1 & 2 are PoE (RJ45 socket) |
| NMEA 2000 |
1 port on
rear (Micro-C male) |
| Video input |
2 ports on
rear (BNC female. NTCS or PAL format) |
| Video
output |
1024x768 (XGA
4:3), 1280x720 (HD 16:9), |
| USB |
mass
storage, keyboard and mouse (Type A socket) |
| SD |
32GB (Full
size SD card socket) |
| NMEA 0183
baud rate |
4800, 9600,
19200, & 38400 (via proprietary cable) |
| NMEA 0183
via RS232 |
1200, 2400,
4800, 9600, 19200, 38400, 57600, 115200 |
| charting
support |
Navionics,
CMAP, Insight, NV Charts on SD |
What's in the Box:
- NSO evo3S MPU
- Power Cable
- RJ45-Yellow Round Ethernet
adapter cable RJ45M / 5PinF
- NSO evo2 NMEA0183/Touch
Monitor serial cable 2 m (6.5 ft) Eight core cable
- N2KEXT-6RD - 1.82 m (6-ft)
NMEA 2000® cable
- N2K-PWR-RD - NMEA 2000®
power cable. Includes power cable and 1 x T connector
- TR-120-KIT - Set of 1 male
and 1 female NMEA 2000® terminators
- N2K-T-RD - Micro-C
T-connector for connection of an additional network device x 2
- NSO evo2 Installation Kit
- Documentation
|
