Simrad NSO evo3S 24" MFD System Pack
Simrad NSO evo3S 24" MFD System Pack
Model: 000-15128-001
- iMX 8 Integrated six-core
processor for superior performance
- Ultra-sharp, Full HD display
- Seamless touchscreen control
of your entire connected SIMRAD® system
- Low-profile glass helm
styling
- Extended visibility with
six-panel split screen option
- Connect with smartphones,
tablets, and internet hotspots
- Integrate with an extensive
range of 3rd party technologies
Every NSO evo3S display features a iMX 8 integrated six-core processor
delivering category leading response times for incredibly smooth screen
transitions. With up to twice the CPU performance, you have instant access to
the information you need, as you need it, no matter the conditions. Create your
own custom helm layouts to suit any activity, and switch seamlessly between
layouts in an instant. Low-profile glass helm styling conceals and protects NSO
evo3’s powerful core, and complements any helm design from ultra-modern to
timeless classic.
NSO evo3S delivers the ultimate view with an ultra-bright display, available in
16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view
from anywhere in sight, even if you’re wearing polarised sunglasses. Experience
stunning clarity with Full HD resolution, and the option to combine up to six
panels in a split-screen layout. Intuitively navigate charts, define waypoints,
and take control of connected systems such as autopilot, radar, and sonar at a
touch.
Built-in wireless connectivity links NSO evo3S to your existing mobile devices
for remote viewing and control, and delivers easy online software upgrades via
any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking
provide almost limitless integration options, from vessel-wide display systems
to radar, sonar, and integration with an extensive range of 3rd party
technologies.
Specifications
|
Physical |
| Dimensions
24" WxHxD |
625.1 x 386
x 83 mm (24.61 x 15.29 x 3.27") With bracket: 648.9 x 388.5 x 212.5 mm
(25.55 x 15.29 x 8.37") |
| Weight 24" |
7.8 kg
(17.2 lbs.) |
| Compass
safe distance |
50 cm
(19.7") |
| Mounting
options |
Panel or
bracket mount (use optional heavy duty bracket (000-13547-001) |
|
Environmental |
| Operating
temperature range |
-15°C to
+55°C (5° F to 131° F) |
| Storage
temperature range |
-20°C to
+60°C (4°F to 140°F) |
| Waterproof
rating |
IPX6 on the
font (when panel mounted correctly with only the front exposed). Rear not
waterproof Shock-CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300
440-2, V1.4.1 |
|
Electrical |
| Supply
Voltage |
12/24 V DC
(10 - 31.2 V DC min - max) |
| Power
consumption (max) 24" |
80 W +- 4 W |
| Fuse rating
24 |
10 A @ 12 V
DC |
|
Connectivity |
| Ethernet |
3 x RJ 45,
1 Mbit ports. Adapt to 5 pin yellow using Adapter cable 000-11246-001 |
| Wireless |
Internal
802.11b/g/n |
| NMEA2000 |
1 x NMEA
2000 Micro-C port, 1 LEN |
| J1939 |
1 x J1939
Micro-C port |
| NMEA 0183 |
2x NMEA0183
(IEC61162-1), 2x NMEA0183-HS (IEC61162-2) |
| Composite
Video In |
2x
composite video (BNC) |
| HDMI In |
1x high
definition video (1080p, HDCP 1.4, HDMI-A) (Note: will not pass through HDMI,
HDCP from HDMI input port) |
| Internal
GPS |
NO |
|
Storage |
| External
storage |
1 x Micro
SD card slot or use optional USB dash mount card reader with 2 x Micro SD
slots. Max. card size 32GB. Larger if formatted to NTFS |
| Internal
storage |
16GB |
|
Display |
| Screen
resolution (all sizes) |
1920x1080 |
| Brightness |
1200 nits |
| Screen size
and type 24 |
MVA 24"
optically bonded TFT |
| Viewing
angles |
80°
top/bottom, 80° left/right |
| Control |
Full touch
screen (multi-touch), OP50 remote controllers |
|
Applications |
| Cartography |
Compatible
with C-MAP (MAX N, MAX N+), Insight, Navionics (Gold, NAV+ Platinum+) , NV
Digital (Raster US Charts): CMAP enhanced of U.S.A built in (Rest of world
charts required. world base map only) |
| Radar |
Compatible
with Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar |
| Sonar |
Compatible
with: SonarHub, S5100, StructureScan3D network echo sounder modules |
| Autopilot
Integration |
Full auto
pilot control and commissioning |
| Autopilot
steering modes |
Auto, Nav.,
No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV.
(*Boat type set to Sail) |
| Autopilot
manoeuvres turn patterns |
U-turn,
Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour
tracking |
| Weather |
SiriusXM
via WM-3 (USA only), GRIB |
| AIS |
Receive AIS
data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K) |
| Multimedia |
via
SonicHub2, FusionLink, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only) |

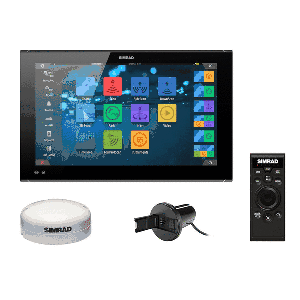

What's in the Box:
- NSO evo3S MFD 24"
- OP50 Remote - Portrait
- MI10 MicroSD Card Reader
- GS25 GPS Antenna
|
