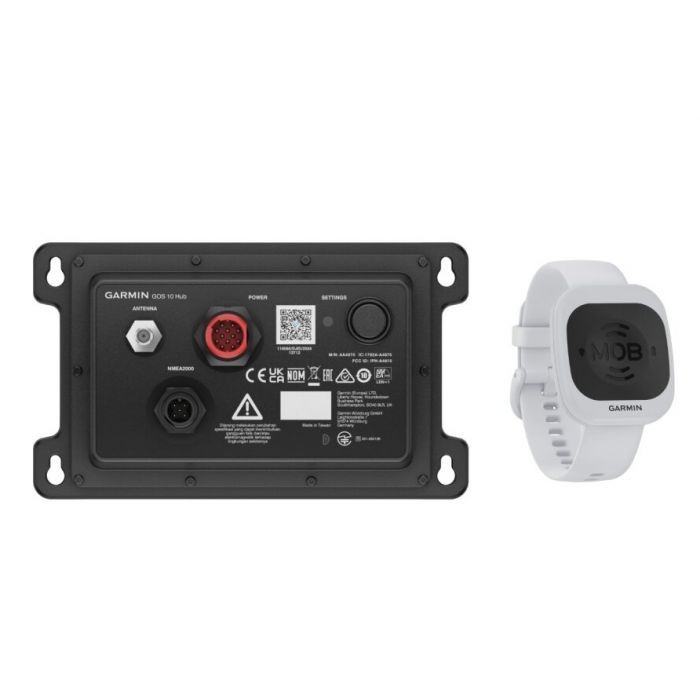

Garmin Onboard System Hub and One Tag
Model: 010-02908-00
- TAGS ARE WORN ON WRIST,
CARABINER OR KEY RING FLOAT
- TAGS ARE DESIGNATED AS
EITHER CAPTAIN OR PASSENGER
- SET MOB TAG AS CAPTAIN TO
ENABLE ENGINE CUTOFF
- TEMPORARILY UNPROTECT TAGS
WITH EASE
- THE GOS 10 HUB INCLUDES A
LOUD EXTERNAL ALARM
- TAG BATTERY LIFE EXCEEDS A
SEASON OF TYPICAL USE
Built so you can move freely and boat confidently, the Garmin OnBoard system
uses wireless tags instead of traditional tethered cords — integrating with your
compatible Garmin chartplotter.
CAPTAIN TAG: Captain MOB detection will trigger engine cutoff, a MOB waypoint on
the chartplotter and an audible alarm on the MFDs and hub.
WIRELESS: WIRELESS: The wearable MOB tags are part of a wireless MOB system,
letting you move untethered while still being monitored.
PASSENGER TAG: Passenger MOB detection will trigger a MOB waypoint on MFDs plus
an audible alarm on the MFDs and hub.
ENGINE CUTOFF SYSTEM: Should a captain tag trigger an MOB event, the system will
cut power to the engines — letting the captain return to the vessel.
CAPTAIN OR PASSENGER TAGS: Through the Garmin chartplotter interface, you can
designate each tag as either captain or passenger, changing their MOB action.
WAYPOINTS: When paired to your compatible Garmin chartplotter, a waypoint will
be marked at the location where the MOB tag lost connection with the vessel.
AUDIO ALARM: The GOS 10 hub includes a loud external alarm, alerting you to a
MOB event.
PAIR MULTIPLE TAGS: Provide peace of mind for up to 8 tags at a time.
VAST COMPATIBILITY: This product will work with any boat that has an engine
cutoff switch.
Specifications
|
General |
| Number of
tags supported |
8
simultaneous passengers and captains |
| User
interface |
Compatible
Garmin chartplotter |
| MOB alarm |
External
beeper and MFD alert |
| Engine
cutoff |
Yes |
| View MOB
details on MFD |
Yes |
| View tag
status on MFD |
Yes
(battery life, signal strength, protection status) |
| Manage tags
on MFD |
Yes
(arm/disarm, captain/passenger) |
| Wireless
engine kill |
Yes |
|
GOS Hub |
| Dimensions
(HxWxD) |
91.55 mm x
155.12 mm x 48.47 mm |
| Weight |
171.7 g |
| Wireless
range |
66 ft (up
to 20 m) |
| Supply
voltage range |
10-32 V |
| Operating
temperature range |
-15 C to 70
C |
| Typical
power consumption |
50mA @ 12 V
or 0.6 W |
| NMEA 2000
LEN |
1 |
| Engine
compatibility |
Inboard,
outboard, sterndrive from all major manufacturers |
| Engine
interface |
Hardwired,
in-line connection to ignition harness |
| Number of
engines supported |
Up to 4
close-to-stop or 2 open-to-stop engines |
| Water
rating |
IPX6 and
IPX7 |
|
Compass-safe distance |
5 cm |
|
MOB Tag |
| Dimensions
(HxWxD) |
43.94 mm x
38.60 mm x 11.96 mm |
| Weight |
21.5 g |
| Wireless
range |
66 ft (up
to 20 m) |
| Battery
type |
CR 2032
coin cell |
| Battery
life |
> 1,200
hours of connected time |
| View tag
status on MFD |
Yes
(battery life, signal strength, protection status) |
| Water
rating |
IEC 60529
IPX8 (5 ATM) |
| Attachment |
Wrist strap
or carabiner |
What's in the Box:
- GOS 10 Hub
- 12-pin fused power and
engine cut-off harness with external buzzer
- External antenna for
wireless connection to MOB tags
- NMEA 2000 tee and 6 ft drop
cable
- White wireless MOB tag
- CR2032 coin cell battery
- White 20 mm quick release
band
- Carabiner with 20 mm quick
release attachment
- Floating foam keychain
- Installation hardware
- Documentation
