Garmin Signal VHF 220 Marine VHF Radio With Built-In AIS Receiver

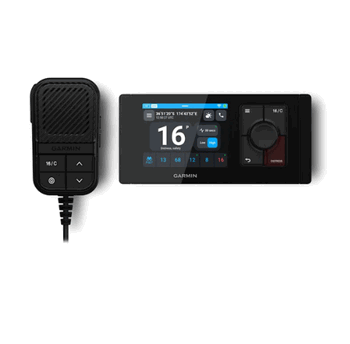

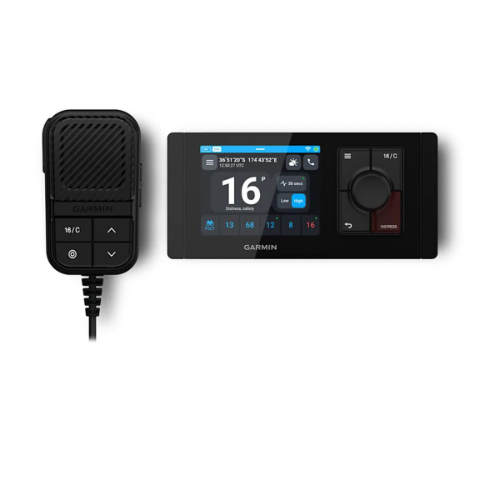

Garmin Signal™ VHF 220 Marine VHF Radio with Built-in AIS Receiver

Model: 010-02951-01


• BUILT-IN CLASS B AIS SOTDMA RECEIVER
• 3.5-INCH COLOR TOUCHSCREEN DISPLAY
• CRYSTAL-CLEAR COMMUNICATION WITH ADAPTIVE NOISE CANCELLATION
• INTUITIVE CLASS D DIGITAL SELECTIVE CALLING (DSC)
• INCLUDES FIST MIC WITH BUILT-IN SPEAKER
• COMPACT DESIGN TAKES UP MINIMAL SPACE AT THE HELM



Stay aware on the water with built-in AIS receive capabilities. This feature shows you range, course, speed and the crossing situation of other AIS-equipped vessels around you to help you navigate.



The compact and modern design features edge-to-edge glass and takes up minimal space at the helm.



Eliminate unnecessary radio noise with automated squelch. If you miss a radio message, you can replay it with VHF audio playback. When you need to maintain watch on multiple channels, advanced watch modes make it easy.



Quickly transmit a distress signal to nearby vessels with the distress button, which uses Class D DSC to automatically send crucial information that can help emergency responders. You can also use the intuitive DSC features to quickly initiate contact with other AIS-equipped vessels; simply select the vessel on the AIS plotter view, and call them with a tap of a button.



Configure the radio, program the MMSI number, and get over-the-air software updates with the ActiveCaptain® smartphone app via built-in Wi-Fi® connectivity.



Installation is simple since VHF/DSC/AIS features only require a single VHF antenna and the GPS antenna/receiver is built into the unit. Chartplotter integration is seamless via the NMEA 2000® network and Garmin BlueNet™ Network.



Advanced noise cancellation uses machine learning algorithms to eliminate wind, wave and engine noise for our cleanest audio experience.



Radio activity is constantly monitored to eliminate unnecessary noise and static. You also have the option for manual fine-tuning.



All VHF channels are continuously scanned for activity in the background, allowing you to maintain watch over channel 16 and all your favorite preset channels simultaneously.



Didn’t catch that message? Replay it with VHF audio playback, and listen to audio messages for up to 3 minutes on any channel.



Specifications


General
Unit size	Head Unit: 75 x 160 x 104 mm (3.0" x 6.3" x 4.1") Fist Mic: 100 x 60 x 31 mm (3.9" x 2.4" x 1.2")
Weight	Head Unit: 655 g (1.45 lbs) Fist Mic: 245 g (0.54 lbs)
Operating voltage	9.6 - 32 VDC
Water rating	IPX7
Display Type	color IPS LCD, capacitive touch
Display Size	3.5" (89 mm)
Display resolution	640 x 480 pixels
Inland waterways (ATIS)	Yes
Backlight	1,000 nits
Multi-language interface	Yes
VHF Features
Adaptive noise cancellation	Yes
Audio record and playback	Yes
Auto squelch	Yes
Dual/Tri watch	Yes
Presets watch	Yes
NOAA weather alert	Yes
NOAA weather watch	Yes
Loud hailer	Yes
Loudhailer listen back	Yes
Intercom support	Yes
AIS target display	Yes
AIS collision and MOB alarms	Yes
VHF Radio
Region	All U.S., Canadian and International marine channels; NOAA weather channels
Max antenna gain	6 dBi
DSC
Class	Class D
AIS
Class	AIS RX only
GNSS
Integrated GNSS receiver	Yes
Integrated GNSS antenna	Yes
Constellations	GPS, GLONASS, BeiDou, Galilleo
Navigation rate	10 Hz
Networking & Connections
Garmin Marine Network	GMN 1.0/2.0
Wireless Connectivity	Access point for mobile phones, 802.11b/g/n, integrated antenna
Wireless security	WPA2 Personal
External GNSS antenna connector	SMA
Ant connector	SO-239 (50 Ω)

What's in the Box:

• Garmin Signal™ VHF 220 head unit
• Fist mic
• Sun cover
• Head unit power and external audio cable with fuse (2 m)
• Fist mic power cable with fuse (2 m)
• Drop cable for NMEA 2000® network (2 m)
• Mounting hardware
• Mounting template
• Documentation
