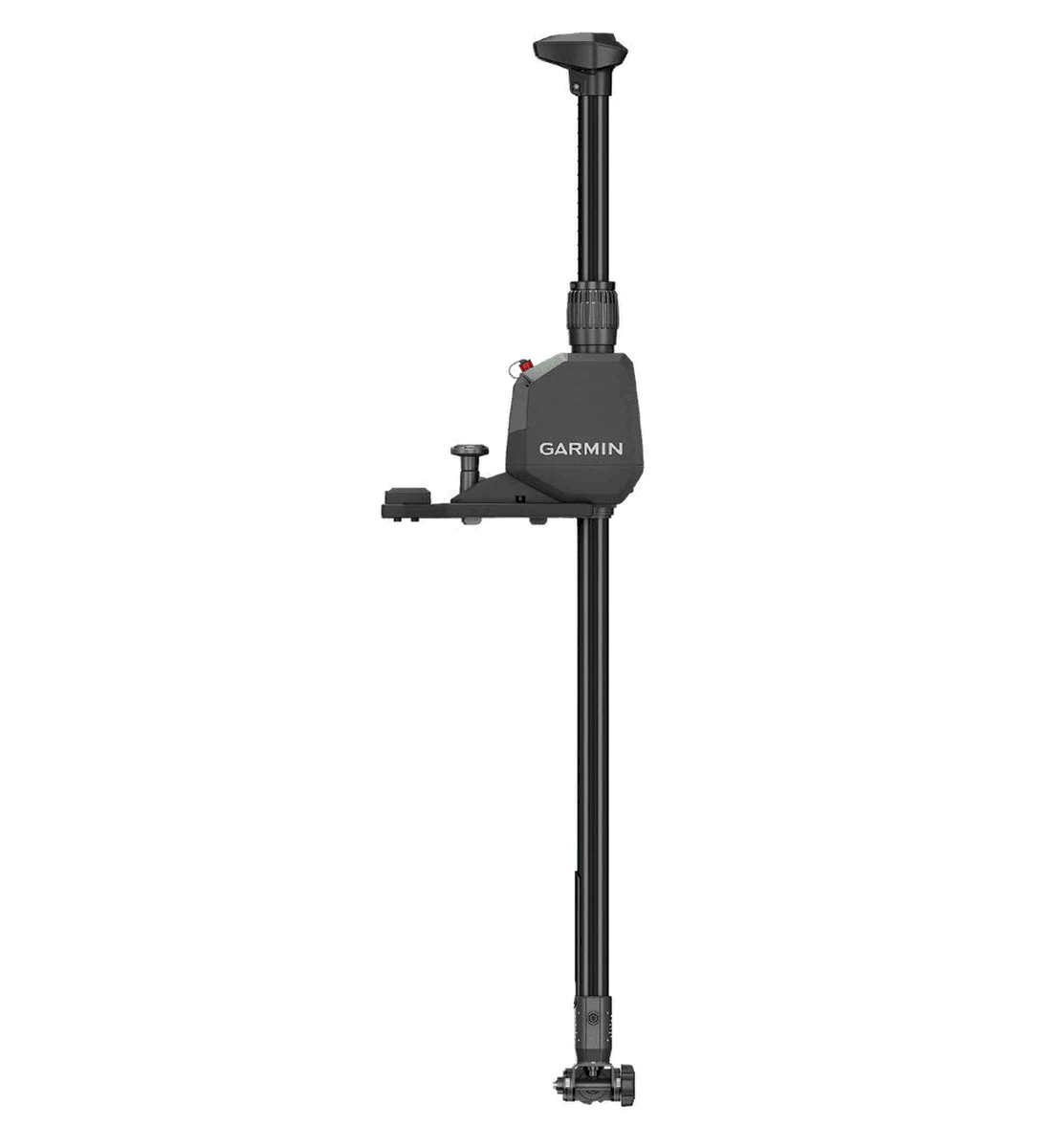

Garmin Spy Pole 42in Motorized Pole Mount

Model: 010-03012-00


• TRUE MOTION: With True Motion technology and your GT360UHD, scans stay true to location as your boat moves.
• SPYLOCK: Lock your LiveScope sonar on any point of interest, such as a brush pile, rock mound or waypoint.
• SPYSCAN: Automatically sweep Spy pole back and forth in any direction to simplify your search for fish and structure.
• SPYLINK: Synchronize with the speed and direction of your Force or Force Pro trolling motor, then control Spy with your Force pedal while in anchor lock.

TAKE FULL COMMAND OF YOUR UNDERWATER VIEW: Mount your transducers to Spy pole, the revolutionary motorized sonar control, to precisely and wirelessly maneuver LiveScope™ and GT360UHD transducers.

INTUITIVE POSITIONING: Keep your boat where you want it and have full control of your LiveScope sonar from a range of control modes, including SpyLock™ point locking technology, SpyScan™ search mode and SpyLink™ control mode.

MULTIPLE MOUNTING OPTIONS: Easily mount Spy pole to your Force or Force Pro trolling motor — or mount it directly to your boat’s deck and enjoy smooth dismount with a quick-release system.

CONTROL AT YOUR FINGERTIPS: Attach the included remote to your rod or use it as a handheld to maneuver Spy pole with a simple turn of the wrist or the press of a button.

FOOT CONTROL: Use the included low-profile, easy-to-use foot control to position Spy pole, keeping your hands free to fish.

CHARTPLOTTER INTEGRATION: Configure and control Spy pole with your compatible Garmin chartplotter.

ONEVU SONAR: Mount the GT360UHD transducer to see OneVu sonar with True Motion technology. Add LiveScope to unlock an additional live overlay in 3D mode.

Specifications


General
For use in	freshwater, brackish water and saltwater
Mount style	quick-release, reversible
Electric steering	Yes
Shaft length (from shaft cap to shaft end)	42in
Adjustable shaft depth	Yes
Water rating (components above water)	IPX7
Warranty	3-year, limited lifetime on shaft
Mounting location	Force, Force Pro (included); Deck and Gunnel (accessories required)
Deck stabilizer rod	Yes (included)
Dogbone stabilizer	Compatible, required with 2 or more transducers (not included)
Electrical Features
Power Input	Wired 2 m (6.6 ft) cable
Power usage	18 W typical; 70 W max
Fuse	8 A
Transducer Support
LiveScope adjustable perspective bottom mount	Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5°
Supported LiveScope transducers	LVS32, LVS34, LVS62 (max of one with internal cable routing)
OneVu scanning transducer support	Yes
Internal cable routing	Yes
Quick-release cable kit	Yes
Connections
Compatible chartplotters	Wireless
Compatible Force trolling motors	Wireless
Control accessories	Wireless
Maximum connections	5 gesture remotes 1 foot control 1 heading sensor 1 trolling motor 1 chartplotter network
Foot Control
Dimensions	7.8" x 5.8" x 1.8"
Wireless communication	Yes
Power supply	2 AA batteries (not included)
Battery life (typical use)	1 full season
Water rating	IPX7
Programmable buttons	Yes (2)
Status indication	LED light
Quick-release mount	Yes
Gesture Remote
Dimensions	1.25" diameter x 0.5" thickness
Wireless communication	Yes
Power supply	CR2032 battery (included)
Battery life (typical use)	1 full season
Water rating	IPX7
Programmable buttons	Yes (3)
Status indication	LED light
Quick-release mounting options	2 rod, hat, handheld with lanyard
Floats	Yes (with handheld only)
Steering	Yes (swing and twist)
Heading Sensor
Dimensions	3.5" x 2.0" x 1.0"
Wireless communication	Yes
Voltage	10 V-45 V
Power input	Wired, 2 m (6.5 ft) cable
Power usage	0.1 W typical; 1 W max
Fuse	1 A
Water rating	IPX7
Status indication	LED light
Input Voltage	10 V-45 V

What's in the Box:

• Spy pole with 42" shaft. 42" is recommended for 50" Force® or Force Pro trolling motors
• Garmin GT360UHD transducer and mount (included with bundles only)
• Mounting plate for Force Pro trolling motor (includes trolling motor kickstand)
• Gesture remote (includes four different mounting options and CR2032 lithium coin cell battery)
• Foot control (includes mount)
• Power cable
• Quick-release cable management kit
• Wireless heading sensor
• Adjustable perspective bottom mount for LiveScope transducers
• Dogbone stabilizer (included with bundles only)
• Hardware
• Documentation
