ECHOMAP™ Ultra 2 Ice House System with ECHOMAP™ Ultra 2 166sv Chartplotter &
LiveScope™ Plus System
GARMIN NAVIONICS+ MAPPING
Get coverage for more than 25,000 lakes with preloaded coastal and inland
mapping.
CUSTOM COMBOS
Create custom pages that combine sonar and maps on your display.
BUILT-IN SONAR
See below and around your boat with built-in sonar capabilities, whether
you’re on the ice or the open water.
ECHOMAP ULTRA 2 16-INCH
This chartplotter features a 16-inch full HD IPS display with touchscreen, mapping and HDMI output, so you can display sonar on your TV or external display.

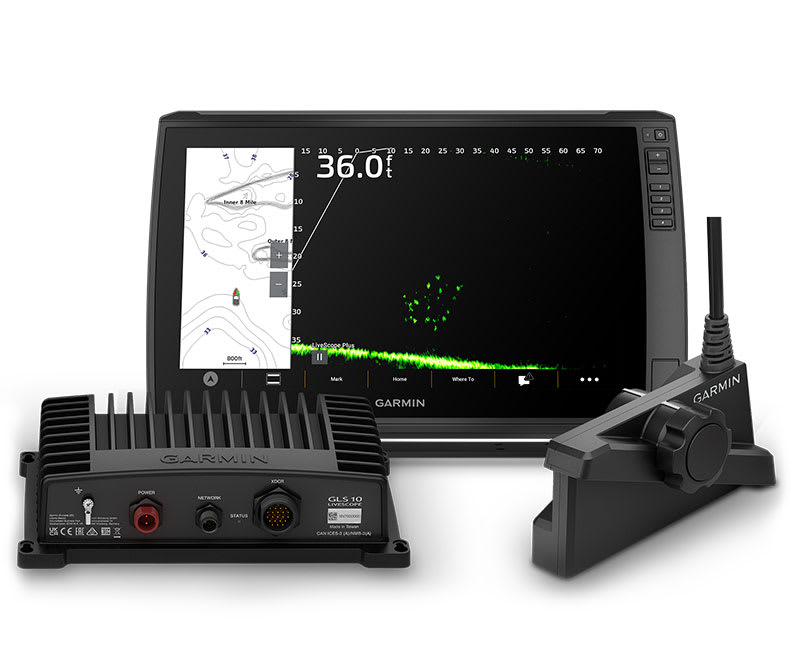

ICE HOUSE SYSTEM
Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.
LIVESCOPE MODES
With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.
OUTFIT YOUR ICE HOUSE
Upgrade your on-ice experience with the ECHOMAP Ultra 2 16-inch chartplotter,
LiveScope Plus System, and everything else you’d want to help you catch more
fish.
ECHOMAP ULTRA 2 16-INCH
This chartplotter features a 16-inch full HD IPS display with touchscreen,
mapping, and HDMI output, so you can display sonar on your TV or external
display.

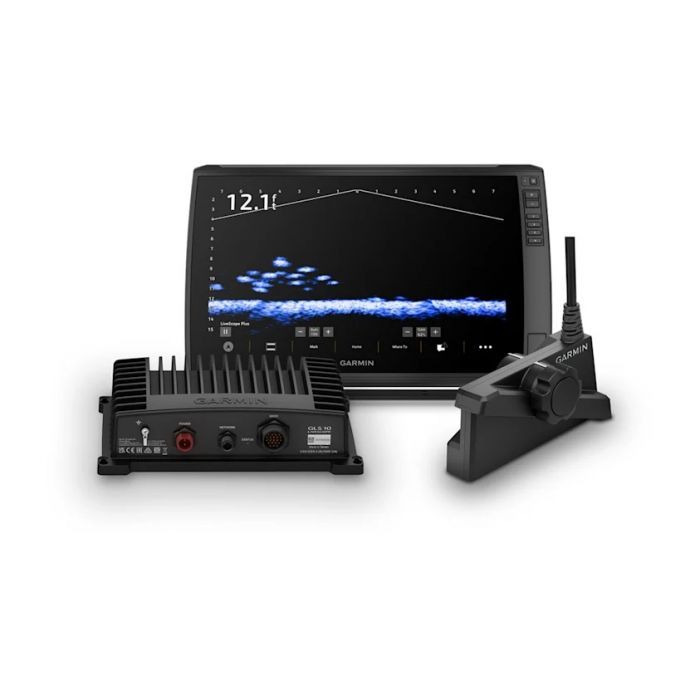

ICE HOUSE SYSTEM
Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer,
which features a transducer cable that stays flexible — even in freezing
conditions.

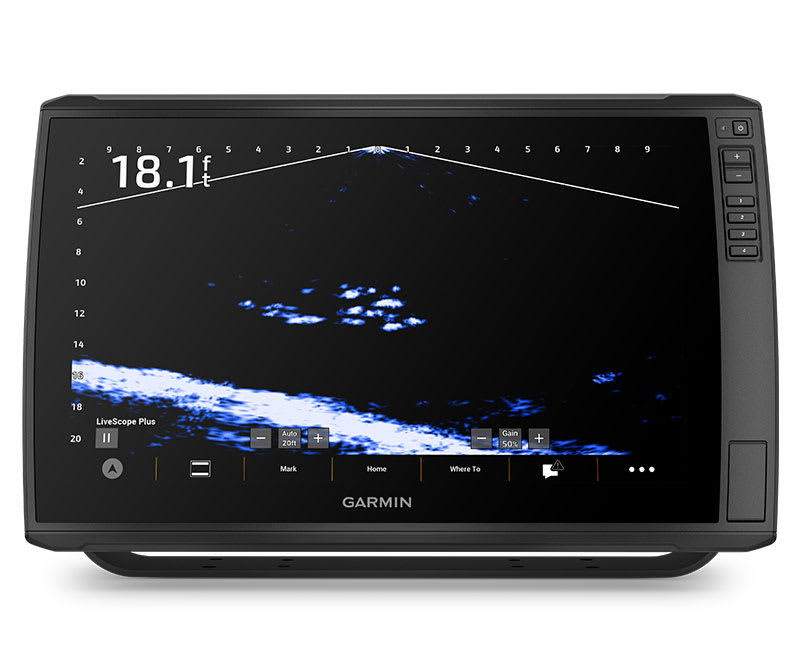

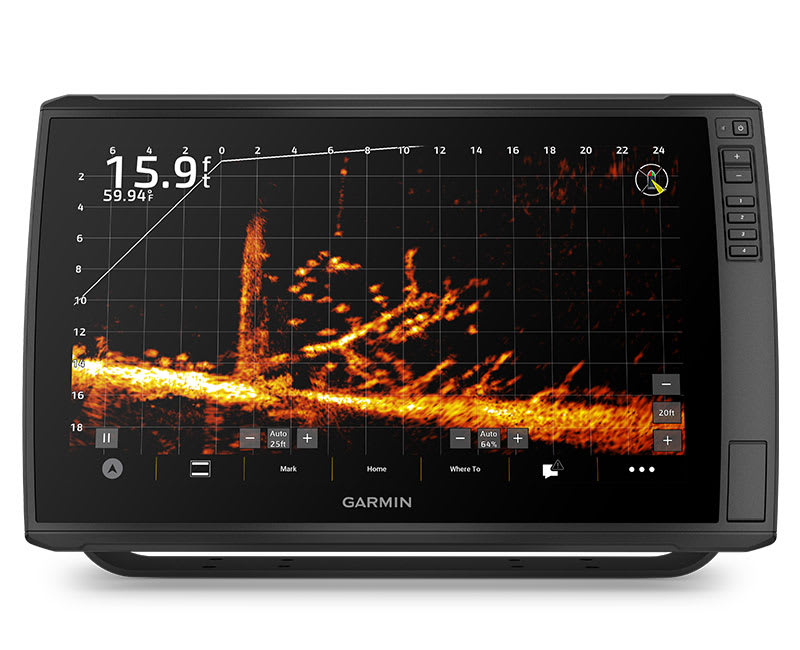

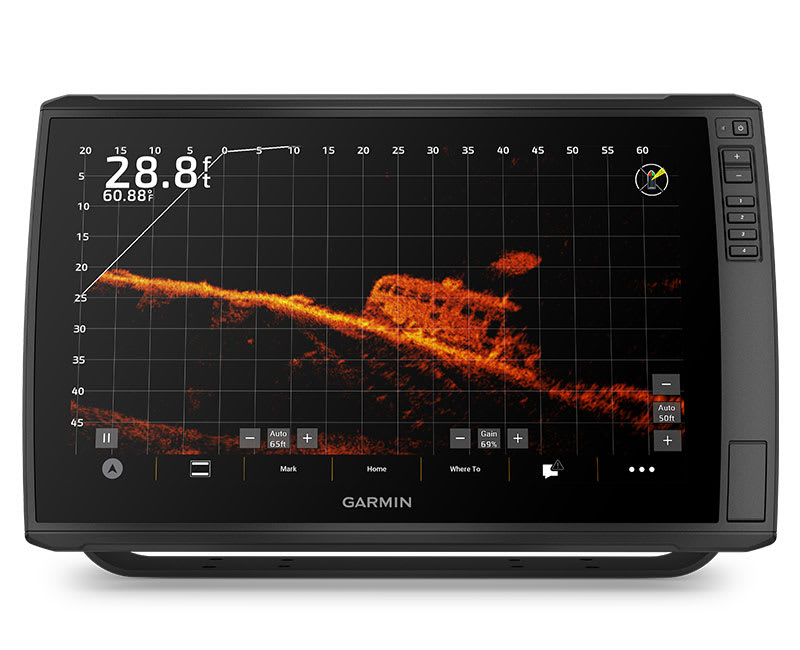

LIVESCOPE MODES
With an included 0-degree pole mount, the transducer can quickly switch between
LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

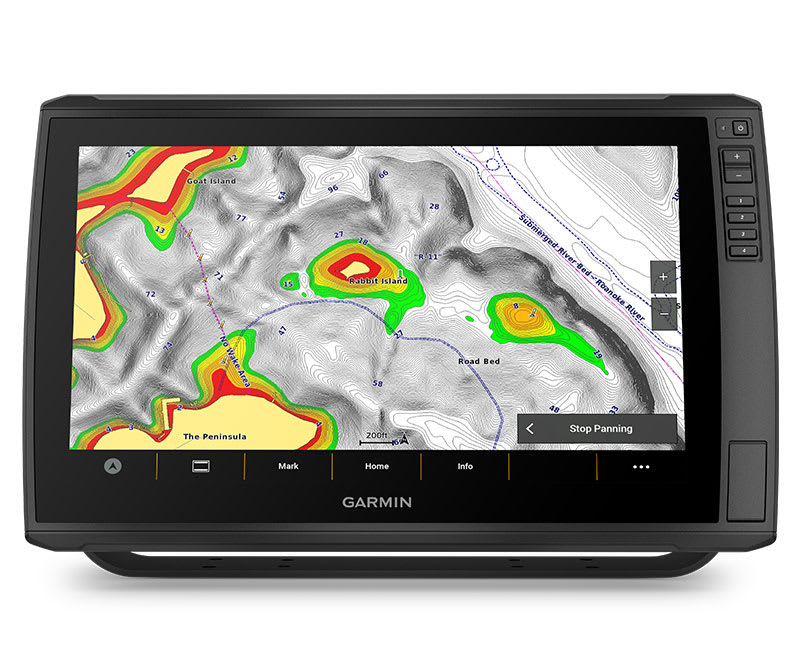

GARMIN NAVIONICS+ MAPPING
Get coverage for more than 25,000 lakes with preloaded coastal and inland
mapping.
CUSTOM COMBOS
Create custom pages that combine Sonar and maps on your display.
BUILT-IN SONAR
See below and around your boat with built-in sonar capabilities, whether you’re
on the ice or the open water.
Features:
-
16" Full HD IPS touchscreen display
-
Share to your TV or external display via HDMI output
-
Livescope Forward and Livescope Down Modes
-
Preloaded with Garmin Navionics+ Mapping of 25,000 Inland and Coastal Lakes
|
General
|
|
Dimension
|
16.9" x
10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
|
|
Weight
|
9.5 lbs
(4.31 kg)
|
|
Water
rating
|
IPX7
|
|
Touchscreen
|
Yes
|
|
Display
Type
|
FHD, IPS
|
|
Display
Size
|
13.6" x
7.7"; 15.6" diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)
|
|
Display
resolution
|
1920 x 1080
pixels
|
|
Input
|
Touchscreen
with Keyed Assist
|
|
Maps & Memory
|
|
Accepts
Data Cards
|
2 microSD
cards
|
|
Waypoints
|
5000
|
|
Track
points
|
50,000
|
|
Tracks
|
50 saved
tracks
|
|
Navigation
Routes
|
100
|
|
Ice Fishing Details
|
|
Included
transducer
|
LiveScope
Plus System with LVS34-IF
|
|
Transducer
holding feature
|
Pole mount
|
|
Sonar Features
|
|
Power
output
|
600 W
|
|
Traditional
sonar (dual frequency/beam)
|
Built-in
(single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
|
|
ClearVu
|
Built-in
260/455/800/1000/1200 kHz
|
|
SideVu
|
Built-in
260/455/800/1000/1200 kHz
|
|
Panoptix™
sonar
|
Yes
|
|
LiveScope
|
Yes
|
|
Connections
|
|
NMEA 2000®
ports
|
1
|
|
Video
output ports
|
1 HDMI
|
|
Garmin
Marine Network Ports
|
2
|
|
12-pin
transducer ports
|
12-pin
scanning sonar
|
|
Bluetooth
pairing
|
Yes
|
|
ANT
(Connectivity)
|
Yes
|
|
Garmin
Wi-Fi network (local connection)
|
Yes
|
|
Input
Voltage
|
9 to 18 Vdc
|
What's in the Box:
- ECHOMAP™ Ultra 2 166sv with
preloaded Garmin Navionics+™ Inland, Coastal and Offshore Mapping for U.S. or
Canada
- LiveScope™ Plus LVS34-IF
transducer
- GLS™ 10 black box sonar
module with power and network cables
- Ice fishing pole mount
- 0° shaft mount
- Power and network cables
- Hardware
- Documentation
