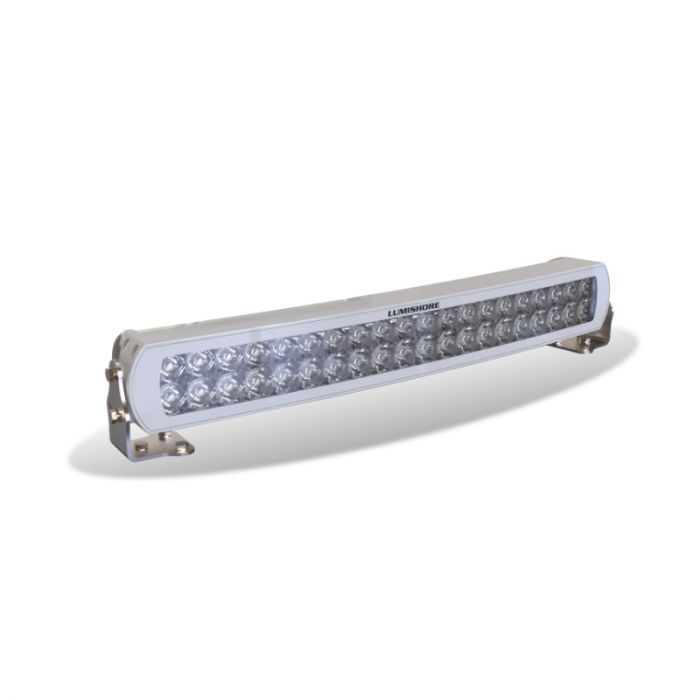

Lumishore 20in Curved Lightbar White LED, White
Housing 12/24vDC
Model: 010-04462-00
Designed to offer a high-intensity light source, Lumishore Light Bars cover a
wide spread area.
The 20'' (60cm) Light Bar generates a powerful 15,000 fixture lumens of crisp,
white light to illuminate the hardest to see places.
Designed to withstand extreme marine environments, completely water tight (IP68
compliant) and constructed with marine-grade powder coated aluminium. These
sleek, low profile lights enhance your boat's fit-out, even when not in use.
Suitable for T-Tops, helm roofs, fishing towers and bow platforms.
Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command
Center.
Specifications
| Available
colors |
White (5500
K) |
| Lumens |
33,750 |
| Fixture
Lumens |
15,000 |
| Number &
Type Of LED |
40 x 10W
White LED |
| LED Power
HICOB Array |
Yes |
| Typical LED
Life |
50,000+
Hours |
| User
Control Options |
On/Off
Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command
Center |
| Electrical
Installation |
Simple 2
Wire Connection (3 Wires when used with EOS-LUX Command Center) |
| Housing
Type |
Powder
Coated Aluminium Body with Makrolon Lens |
| Driver |
Internal |
| Supply
Voltage Range |
10.5—31 V
DC |
| Max Current
Draw 12/24V |
12.8 A/6.4
A |
| Beam Angle |
9° - 20°
Letterbox Beam (Vert - Horiz) |
| Water
Ingress Protection Rating |
IP68 |
| Warranty |
3 Years |
What's in the Box:
- One (1) Light Bar - Curved
20"
- Stainless steel bracket and
fasteners
