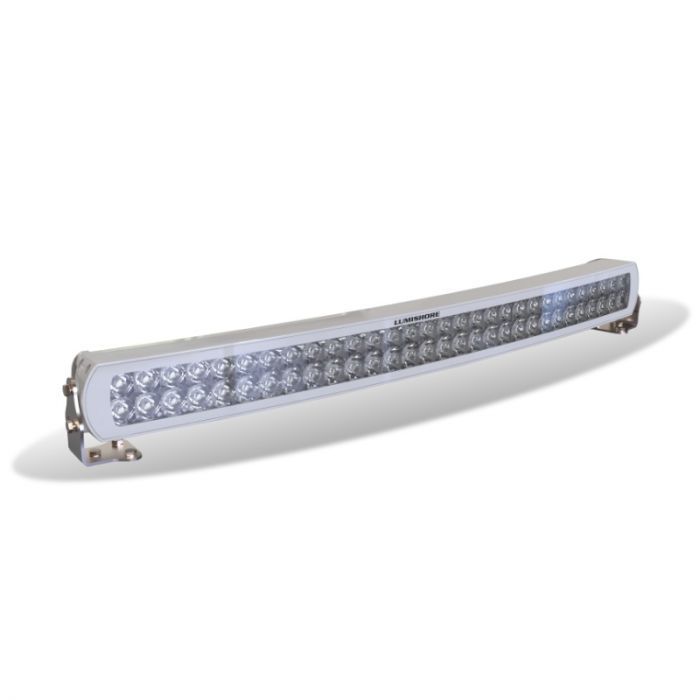

Lumishore 30in Curved Lightbar White LED, White
Housing 12/24vDC
Model: 010-04463-00
Lumishore's new collection of Light Bars are designed to offer a high-intensity
light source, covering a wide spread area.
The 30'' (80cm) Light Bar delivers an incredible output (23,760 fixture lumens)
of crisp, white light to illuminate your boat deck and beyond. Available in 20",
30", 40" and 50" models, allowing for versatile placement onboard.
Designed to withstand the harshest marine environments, completely water tight
(IP68 compliant) and constructed with marine-grade powder coated aluminium.
Suitable for T-Tops, helm roofs, fishing towers and bow platforms.
Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command
Center.
Specifications
| Available
colors |
White (5500
K) |
| Lumens |
53,460 |
| Fixture
Lumens |
23,760 |
| Number &
Type Of LED |
60 x 10W
White LED |
| LED Power
HICOB Array |
Yes |
| Typical LED
Life |
50,000+
Hours |
| User
Control Options |
On/Off
Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command
Center |
| Electrical
Installation |
Simple 2
Wire Connection (3 Wires when used with EOS-LUX Command Center) |
| Housing
Type |
Powder
Coated Aluminium Body with Makrolon Lens |
| Driver |
Internal |
| Supply
Voltage Range |
10.5—31 V
DC |
| Max Current
Draw 12/24V |
19.3 A/9.6
A |
| Beam Angle |
9° - 32°
Letterbox Beam (Vert - Horiz) |
| Water
Ingress Protection Rating |
IP68 |
| Warranty |
3 Years |
What's in the Box:
- One (1) Light Bar - Curved
30"
- Stainless steel bracket and
fasteners
