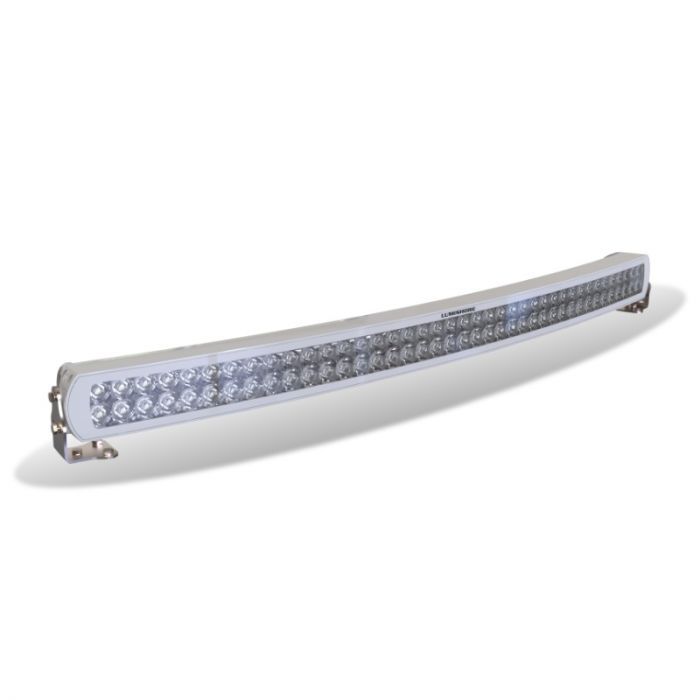

Lumishore 40in Curved Lightbar White LED, White
Housing 12/24vDC
Model: 010-04464-00
Lumishore's new collection of Light Bars are designed to offer a high-intensity
light source, covering a wide spread area.
The 40'' (100cm) Light Bar delivers class-leading performance, generating a
powerful 31,680 fixture lumens of crisp, white light to illuminate your boat
deck and beyond.
Designed to withstand the harshest marine environments, completely water tight
(IP68 compliant) and housed in marine-grade powder coated aluminium. These
sleek, low profile Light Bars enhance your boat's fit-out, even when not in use.
Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command
Center.
Specifications
| Available
colors |
White (5500
K) |
| Lumens |
71,280 |
| Fixture
Lumens |
31,680 |
| Number &
Type Of LED |
80 x 10W
White LED |
| LED Power
HICOB Array |
Yes |
| Typical LED
Life |
50,000+
Hours |
| User
Control Options |
On/Off
Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command
Center |
| Electrical
Installation |
Simple 2
Wire Connection (3 Wires when used with EOS-LUX Command Center) |
| Housing
Type |
Powder
Coated Aluminium Body with Makrolon Lens |
| Driver |
Internal |
| Supply
Voltage Range |
10.5—31 V
DC |
| Max Current
Draw 12/24V |
25.7 A/12.8
A |
| Beam Angle |
9° - 45°
Letterbox Beam (Vert - Horiz) |
| Water
Ingress Protection Rating |
IP68 |
| Warranty |
3 Years |
What's in the Box:
- One (1) Light Bar - Curved
40"
- Stainless steel bracket and
fasteners
