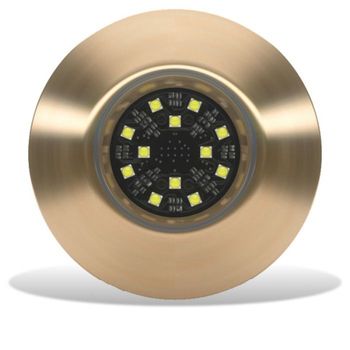

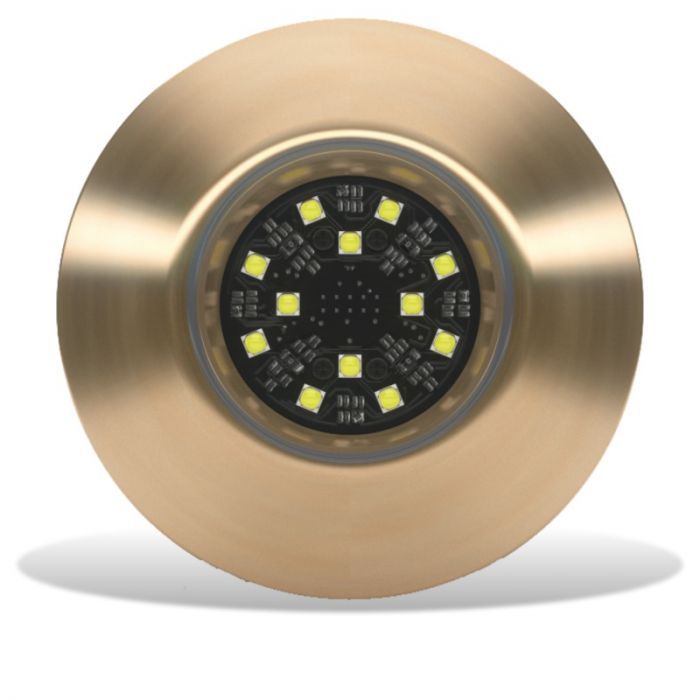

Lumishore ORA TIX404 Thru-Hull Mount Underwater
White LED Bronze Housing 12/24vDC
Model: TIX404
The TIX404 packs a powerful 5,100 fixture lumens into a compact, low profile
interchangeable thru-hull, with an ultra-wide 110° beam angle.
Available in single color white.
TIX models feature an internal LED array and integrated driver for the ability
to service from inside the hull and to simplify installation.
Easily controlled by a standard on/off switch.
Suitable for transom, side and bottom mounting.
Specifications
| AVAILABLE
LED COLORS |
SINGLE
COLOR (WHITE) |
| LUMENS |
11,475 |
| VERIFIED
FIXTURE LUMENS (WHITE) |
5,100 |
| NUMBER OF
HIGH POWER LEDS |
WHITE - 12
x 10W |
| LED POWER -
HICOB ARRAY |
YES |
| TYPICAL LED
LIFE |
50,000+
HOURS |
| BEAM ANGLE
(DEGREES) |
110° |
| DRIVER |
INTERNAL
DRIVER |
| SUPPLY
VOLTAGE |
10.5-31 V
DC |
| MAX CURRENT
DRAW |
4.0 A / 2.0
A |
| HOUSING
TYPE |
MARINE
BRONZE BODY, BOROSILICATE GLASS LENS |
| USER
CONTROL OPTIONS |
ON/OFF
SWITCH |
| WARRANTY |
3 YEARS |
What's in the Box:
- One (1) ORA TIX404 Light
with Built-in Driver
