Lumishore Eclipse CL30 Blue Courtesy Light 12/24vDC
Model: CL30

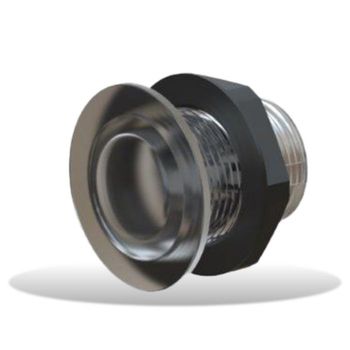

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm
stations and other design elements of a boat.
Constructed of a durable clear acrylic body, completely water sealed and IP67
rated.
Available in single color blue and two other color options.
Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small, discreet
and easy to install with a 2 wire hookup, flush mountable and fit almost
anywhere onboard.
Specifications
| Color |
Blue |
| LED Type |
3 x 0.5W
Blue LEDs |
| Customer
Control Options |
On/Off
Switch or ECLIPSE Command Center |
| Electrical
Installation |
Simple 2
Wire Installation |
| Supply
Voltage Range |
12V DC Only
(10 - 15V DC) |
| Max Current
Draw (12V DC) |
0.1A |
| Ingress
Protection |
IP67 |
| Front
Diamater (Bezel) |
33mm (1.3") |
| Depth |
30.0mm
(1.180") |
| Hole
Diameter for fitting |
25.4mm
(1.0") |
| Mechanical
Installation |
Panel Mount |
