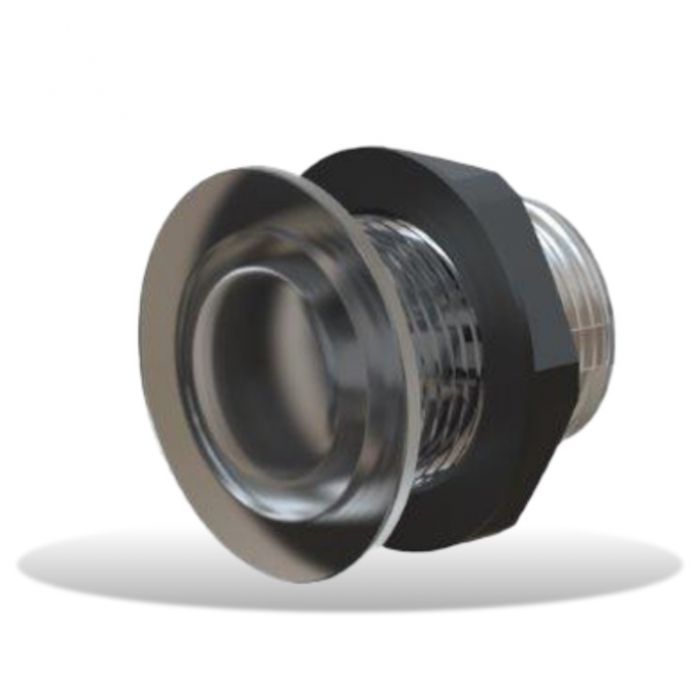

Lumishore Eclipse CL30 White Courtesy Light
12/24vDC
Model: CL30
ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm
stations and other design elements of a boat. Available in single color white
and two other color options.
Constructed of a durable clear acrylic body, completely water sealed and IP67
rated.
Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small and
discreet and easy to install (2 wire hookup), flush mountable and fit almost
anywhere onboard.
Specifications
| Color |
White (5000
K) |
| LED Type |
3 x 0.5W
White LEDs |
| Customer
Control Options |
On/Off
Switch or ECLIPSE Command Center |
| Electrical
Installation |
Simple 2
Wire Installation |
| Supply
Voltage Range |
12V DC Only
(10 - 15V DC) |
| Max Current
Draw (12V DC) |
0.1A |
| Ingress
Protection |
IP67 |
| Front
Diamater (Bezel) |
33mm (1.3") |
| Depth |
30.0mm
(1.180") |
| Hole
Diameter for fitting |
25.4mm
(1.0") |
| Mechanical
Installation |
Panel Mount |
| Warranty |
3 Years |
