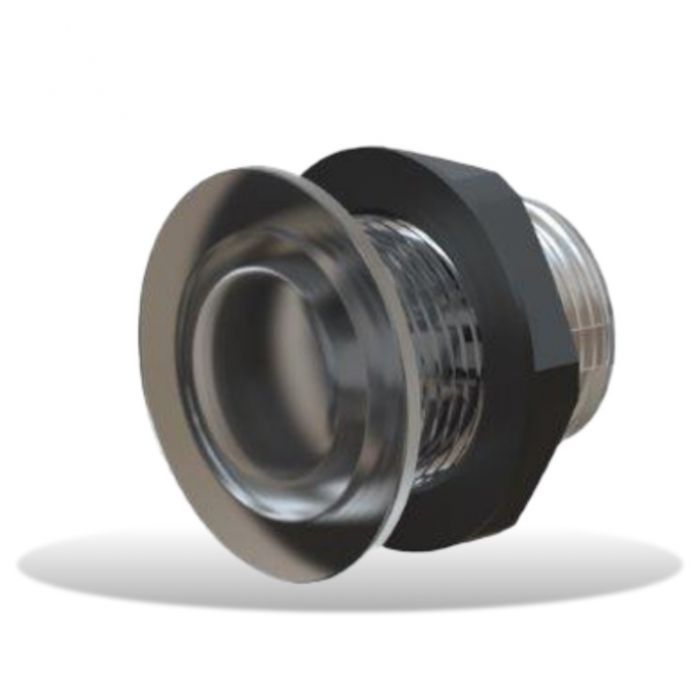

Lumishore Eclipse CL30 Blue & White Courtesy Light
12/24vDC
Model: CL30
ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm
stations and other design elements of a boat. Available in dual color blue and
white and two other color options.
Constructed of a durable clear acrylic body, completely water sealed and IP67
rated.
Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small, discreet
and easy to install with a 2 wire hookup, flush mountable and fit almost
anywhere onboard.
Specifications
| Available
Colors |
Blue and
White (5000 K) |
| LED Type |
3 x 0.5W
Blue LEDs / 3 x 0.5W White LEDs |
| Customer
Control Options |
On/Off
Switch or ECLIPSE Command Center |
| Electrical
Installation |
Simple 2
Wire Installation |
| Supply
Voltage Range |
12V DC Only
(10 - 15V DC) |
| Max Current
Draw (12/24V DC) |
0.1A |
| Ingress
Protection |
IP67 |
| Front
Diamater (Bezel) |
33mm (1.3") |
| Profile |
3.5mm
(0.137") |
| Hole
Diameter for fitting |
25.4mm
(1.0") |
| Mechanical
Installation |
Bulkhead
Panel Mount (with marine adhesive) |
| Warranty |
3 Years |
