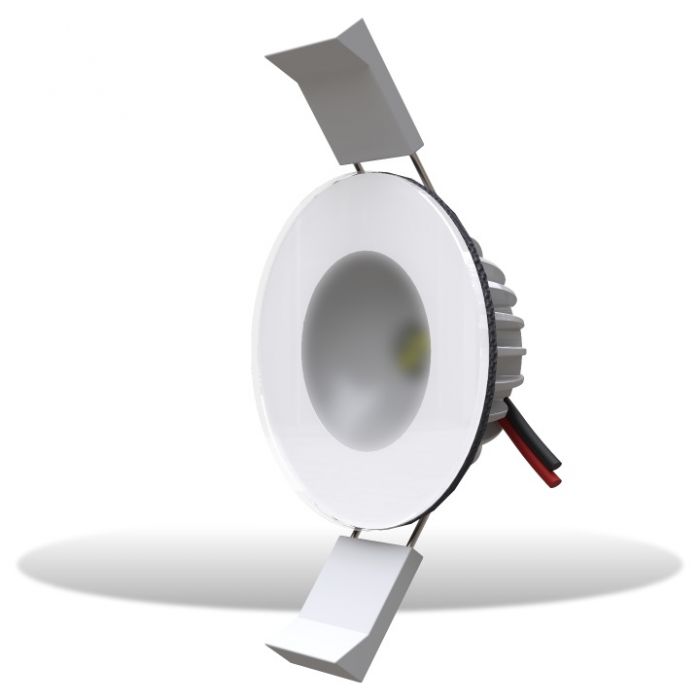

Lumishore Eclipse DL55 Blue & White Down Light
12/24vDC White Housing
Model: 010-04475-00
Lumishore’s ECLIPSE Downlights provide excellent illumination to enhance a
variety of indoor or outdoor overhead spaces onboard.
Constructed of a durable aluminium body with a glass front, completely water
sealed and IP67 rated.
Simple to install (2 wire hookup) with a shallow depth profile of only 21mm
(0.83").
Available in dual color blue and white, single color blue or white, and White +
RGB. Choose from a black or white finish to complement your boats aesthetic.
Specifications
|
Colors
|
Blue &
White (5000 K)
|
|
LED Type
|
2 x 3W Blue
LEDs / 2 x 3W White LEDs
|
|
Customer
Control Options
|
On/Off
Switch or ECLIPSE Command Center
|
|
Electrical
Installation
|
Simple 2
Wire Installation
|
|
Supply
Voltage Range
|
12V DC Only
(10 - 15V DC)
|
|
Max Current
Draw (12/24V DC)
|
0.4A
|
|
Ingress
Protection
|
IP67
|
|
Front
Diamater (Bezel)
|
64.0mm
(2.519")
|
|
Profile
|
3.5mm
(0.137")
|
|
Hole
Diameter for fitting
|
50.8mm
(2.0")
|
|
Mechanical
Installation
|
Stainless
Steel Spring Clips
|
|
Warranty
|
3 Years
|
