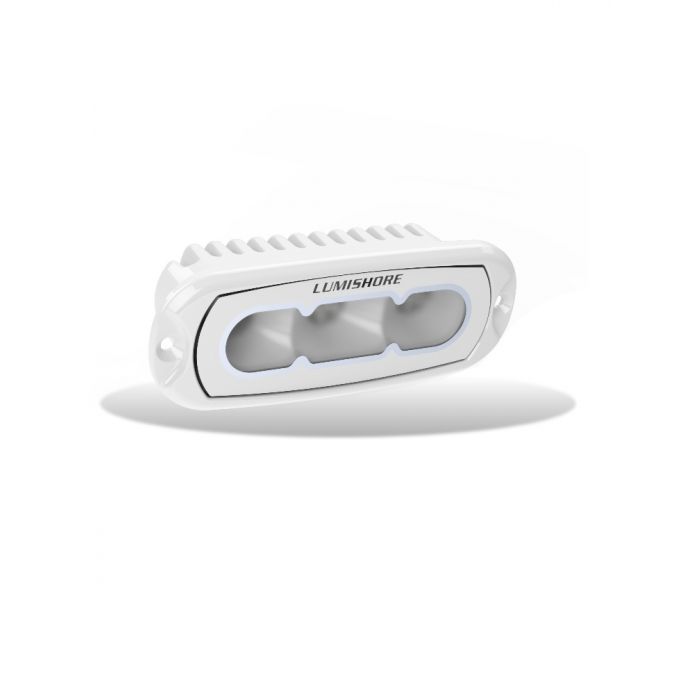

Lumishore ECLIPSE 4in Flood LED Light Flush Mount
White Finish
Model: 60-0519 / 010-04499-00
Delivering 1,500 fixture lumens of crisp white light, the ECLIPSE 4" Flush Fit
Flood Light is built for flush mounting on cabin tops, T-tops, arches, transoms,
and radar pedestals.
Its wide 70°—90° oval beam ensures bright, even coverage for deck lighting,
cockpit visibility, or added security. Designed for the harshest marine
environments, with IP68 protection and a marine-grade powder-coated aluminium
housing. Dimmable as standard.
Specifications
|
Color
|
White (5500
K)
|
|
Fixture
Lumens (White)
|
1,500
|
|
Number &
Type Of LED
|
3 x 10W
White LED
|
|
Control
Options
|
On/Off
Switch (Third party supplied), ECLIPSE Command Center, EOS-LUX Command
Center or Compatible MFD
|
|
Electrical
Installation
|
Simple 2
Wire Connection
|
|
Supply
Voltage Range
|
10.5—31 V
DC
|
|
Max Current
Draw 12/24V
|
1.7 A/0.9 A
|
|
Beam Angle
|
70° - 90°
Oval Beam
|
|
Water
Ingress Protection Rating
|
IP68
|
|
Warranty
|
3 Years
|
