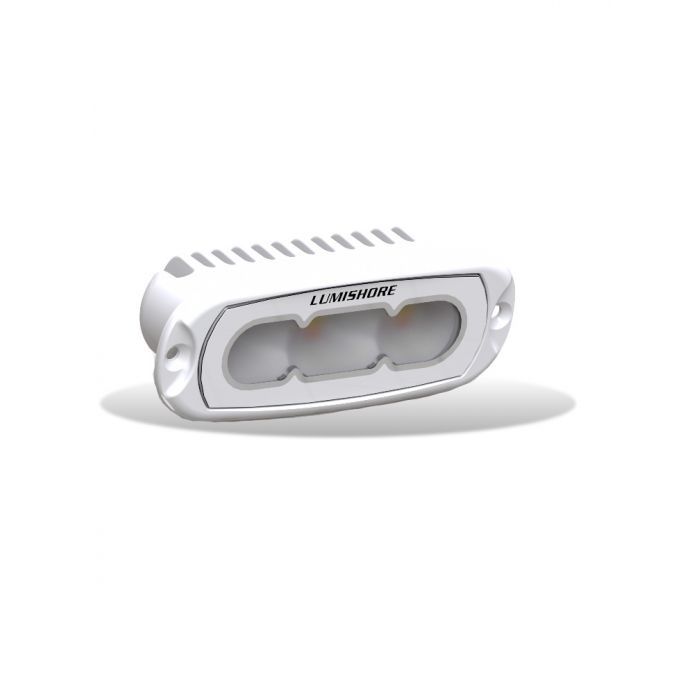

Lumishore LUX 4in Flood LED Light Flush Mount White
Finish
Model: 60-0520 / 010-04500-00
Lumishore’s 4" Flush Fit Flood Lights deliver powerful CRGBW illumination in a
sleek, low-profile unit. Designed for decks, cockpits, and exterior mounting
points like T-tops, arches, and transoms, they offer a wide oval beam (70°—90°)
and smooth, blended colors — including both warm and cold white, plus red,
green, and blue.
Built for harsh marine environments with an IP68 rating and marine-grade
aluminum housing. Control via switch, MFD, or Lumishore Display — with dimming
as standard.
Specifications
| Available
colors |
White Color
Temperature Tunable (2700K to 6500K) and Full Spectrum RGB |
| Lumens |
2,360 |
| Fixture
Lumens |
1,050 |
| Number &
Type Of LED |
Warm White,
Cold White, Red, Green and Blue (5 Channel) |
| LED Power
HICOB Array |
Yes |
| Typical LED
Life |
50,000+
Hours |
| Warranty |
3 Years |
| Electrical
Installation |
Simple 3
Wire Connection (see installation manual) |
| Housing
Type |
Powder
Coated Aluminium Body with Frosted Lens |
| Driver |
Multi-Channel Internal |
| Supply
Voltage Range |
10.5—31 V
DC |
| Max Current
Draw 12/24V |
1.7 A/0.9 A |
| Beam Angle |
70° - 90°
Oval Beam |
| Water
Ingress Protection Rating |
IP68 |
