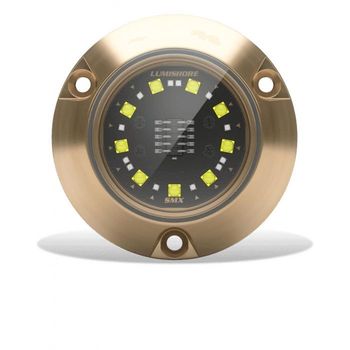

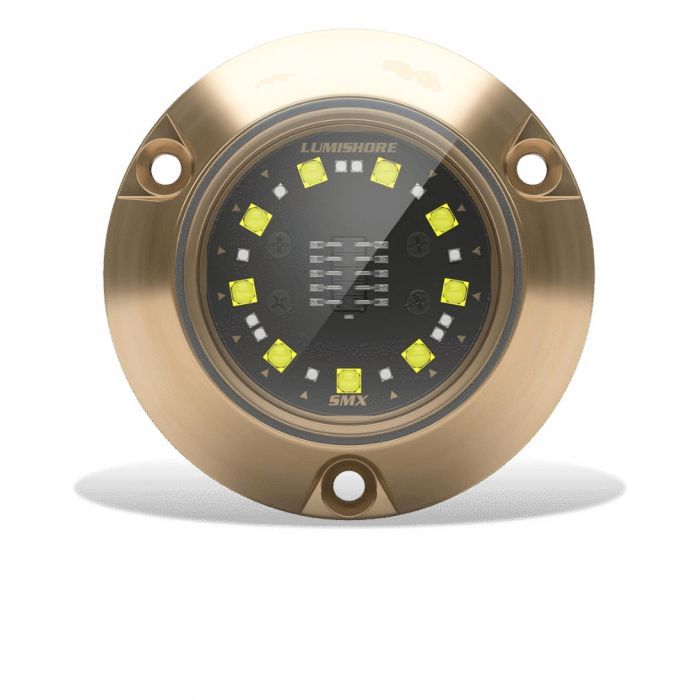

Lumishore ECLIPSE SMX24 Surface Mount White LED
Model: 60-0532 / 010-04503-00
Specifically designed for smaller boats, the SMX24 - White offers unmatched
light output and optics for a light of its compact size. Flooding the water with
3,100 fixture lumens of light in a 90° beam.
It's built-in driver and simple 2-wire connections make the installation of this
light easier than ever.
Suitable for stepped hulls, transoms, and hull side installations.
Controlled by an ON/OFF switch or the ECLIPSE Command Center.
Specifications
|
COLOR
|
WHITE
|
|
LUMENS
|
6,975
|
|
VERIFIED
FIXTURE LUMENS (WHITE)
|
3,100
|
|
NUMBER AND
TYPE OF LEDS
|
White — 9
5W
|
|
LED POWER -
HICOB ARRAY
|
YES
|
|
TYPICAL LED
LIFE
|
50,000+
HOURS
|
|
BEAM ANGLE
(DEGREES)
|
90°
|
|
DRIVER
|
MULTI-CHANNEL INTERNAL DRIVER
|
|
SUPPLY
VOLTAGE
|
12 V DC
ONLY
|
|
MAX CURRENT
DRAW
|
2.5A 2.5A
2.5A
|
|
HOUSING
TYPE
|
MARINE
BRONZE BODY/ GLASS LENS
|
|
USER
CONTROL OPTIONS
|
STANDARD
ON/OFF SWITCH OR ECLIPSE COMMAND CENTER
|
|
DIMMING
CONTROL
|
YES
|
|
WARRANTY
|
3 Years
|
