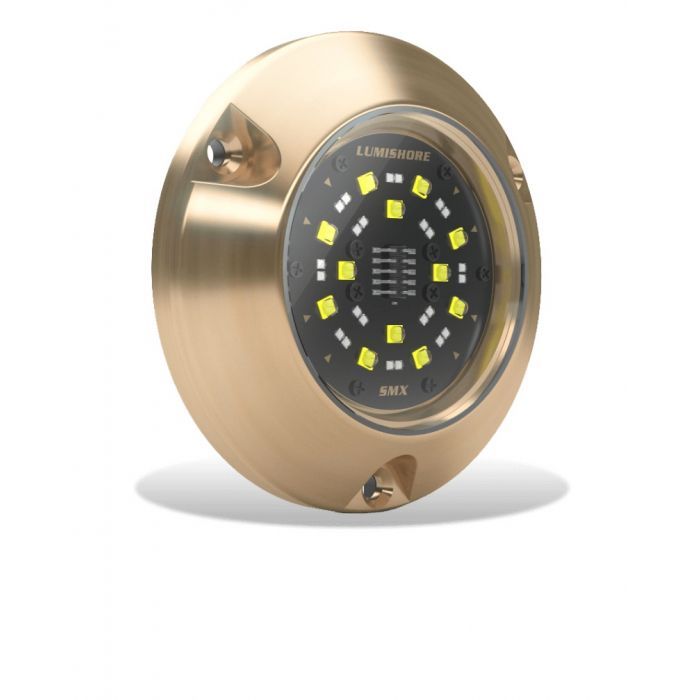

Lumishore ECLIPSE SMX54 Surface Mount Blue/White
LED
Model: 60-0534 / 010-04505-00
2-lights-in-1 (blue and white) in a single high-powered bronze surface mount
fixture without sacrificing brightness; both colors run at full power!
Lumishore's SMX54 delivers 7,500 fixture lumens in a wide 90° beam of light.
Control the SMX54 with a standard on/off switch, SUPRA i-Connect Hub & Switch or
ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull sides of nearly any type of boat.
Specifications
| AVAILABLE
LED COLORS |
DUAL COLOR
(BLUE & WHITE) |
| LUMENS |
16,875 |
| VERIFIED
FIXTURE LUMENS (WHITE) |
7,500 |
| NUMBER AND
TYPE OF LED |
White — 12
5W / Blue —24 3W |
| LED POWER -
HICOB ARRAY |
YES |
| TYPICAL LED
LIFE |
50,000+
HOURS |
| BEAM ANGLE
(DEGREES) |
90° |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY
VOLTAGE |
12/24 V DC |
| MAX CURRENT
DRAW |
5.9A / 2.8A |
| HOUSING
TYPE |
MARINE
GRADE BRONZE / GLASS LENS |
| USER
CONTROL OPTIONS |
ON/OFF
SWITCH, I-CONNECT HUB & SWITCH OR ECLIPSE COMMAND CENTER |
| LIGHTS
SYNCHRONIZED |
YES |
| COLOR FADE
CYCLE |
YES |
| FADE
w/BRIGHTNESS ADJUST |
YES (NOT
WITH ON/OFF SWITCH) |
| FIXED
STROBES |
YES |
| STROBE
w/SPEED ADJUST |
YES (NOT
WITH ON/OFF SWITCH) |
| SYSTEM
MEMORY |
YES (NOT
WITH ON/OFF SWITCH) |
| Warranty |
3 YEARS |
