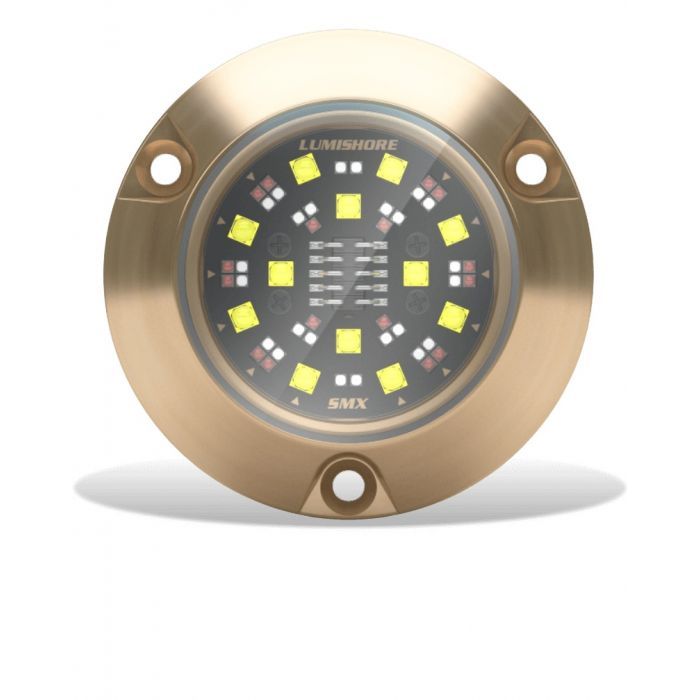

Lumishore SMX94 RGBW Surface Mount
Model: 60-0535 / 010-04506-00
As well as efficiency and performance, the SMX94 is unmatched in ease of
installation due to its built-in driver and simple 2-wire connections.
Enjoy full-spectrum RGBW color change lighting, that packs a powerful 6,000
fixture lumens into a wide 90° beam.
Control the SMX94 with a standard on/off switch to cycle through colors; toggle
to pause on any color in the spectrum or the ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull side installations.
Specifications
|
AVAILABLE
LED COLORS
|
FULL COLOR
SELECT (RGBW)
|
|
LUMENS
|
13,500
|
|
VERIFIED
FIXTURE LUMENS (WHITE)
|
6,000
|
|
NUMBER AND
TYPE OF LED
|
White—12 5W
/ Green—12 3W / Blue—12 3W / Red—16 3W
|
|
LED POWER -
HICOB ARRAY
|
YES
|
|
TYPICAL LED
LIFE
|
50,000+
HOURS
|
|
BEAM ANGLE
(DEGREES)
|
90°
|
|
DRIVER
|
Multi-Channel Internal Driver
|
|
SUPPLY
VOLTAGE
|
12/24 V DC
|
|
MAX CURRENT
DRAW
|
3.5A/1.75A
|
|
HOUSING
TYPE
|
MARINE
GRADE BRONZE / GLASS LENS
|
|
USER
CONTROL OPTIONS
|
STANDARD
ON/OFF SWITCH OR ECLIPSE COMMAND CENTER
|
|
Warranty
|
3 YEARS
|
