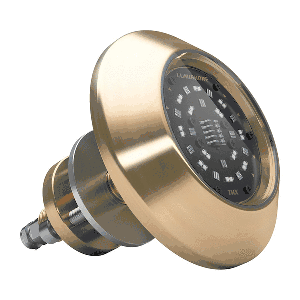

Lumishore ORA THX204 Thru-Hull Mount Blue LED
Model: THX204 / 010-04514-00
Lumishore's ultra-slim thru-hull THX204 has a small hull cut out requirement of
only 5/8" (16.5mm). Blue LED
The THX204 features 6,100 fixture lumens and an ultra-wide 110°beam angle,
allowing the light to saturate deep into the water.
With a simple 2-wire installation and no external drivers, it's one of the
easiest thru-hull lights to install and is suitable for transom, side hull or
bottom installations.
Control the THX204 by a standard on/off switch.
Specifications
| COLOR |
BLUE |
| LUMENS |
13,725 |
| VERIFIED
FIXTURE LUMENS (WHITE) |
6,100 |
| NUMBER AND
TYPE OF LED |
Blue — 24 x
3W High Power LED |
| LED POWER -
HICOB ARRAY |
YES |
| TYPICAL LED
LIFE |
50,000+
HOURS |
| BEAM ANGLE
(DEGREES) |
110° |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY
VOLTAGE |
12/24 V DC |
| MAX CURRENT
DRAW |
4.9A/2.4A |
| HOUSING
TYPE |
MARINE
GRADE ALUMINUM BRONZE |
| USER
CONTROL OPTIONS |
ON/OFF
SWITCH |
| Warranty |
3 Years |
What's in the Box:
- One (1) ORA THX204 Light
with Built-in Driver
