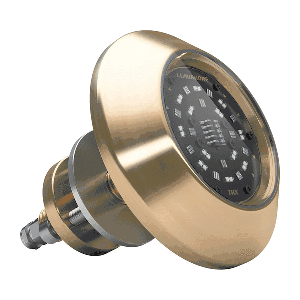

Lumishore ORA THX204 Thru-Hull Mount White LED
Model: THX204 / 010-04515-00
Lumishore's ultra-slim thru-hull THX204 has a small hull cut out requirement of
only 5/8" (16.5mm). White LED
The THX204 features 6,100 fixture lumens and an ultra-wide 110°beam angle,
allowing the light to saturate deep into the water.
With a simple 2-wire installation and no external drivers, it's one of the
easiest thru-hull lights to install and is suitable for transom, side hull or
bottom installations.
Control the THX204 by a standard on/off switch.
Specifications
|
COLOR
|
WHITE
|
|
LUMENS
|
13,725
|
|
VERIFIED
FIXTURE LUMENS (WHITE)
|
6,100
|
|
NUMBER AND
TYPE OF LED
|
White - 12
x 10W High Power LEDs
|
|
LED POWER -
HICOB ARRAY
|
YES
|
|
TYPICAL LED
LIFE
|
50,000+
HOURS
|
|
BEAM ANGLE
(DEGREES)
|
110°
|
|
DRIVER
|
MULTI-CHANNEL INTERNAL DRIVER
|
|
SUPPLY
VOLTAGE
|
12/24 V DC
|
|
MAX CURRENT
DRAW
|
4.9A/2.4A
|
|
HOUSING
TYPE
|
MARINE
GRADE ALUMINUM BRONZE
|
|
USER
CONTROL OPTIONS
|
ON/OFF
SWITCH
|
|
Warranty
|
3 Years
|
What's in the Box:
- One (1) ORA THX204 Light
with Built-in Driver
