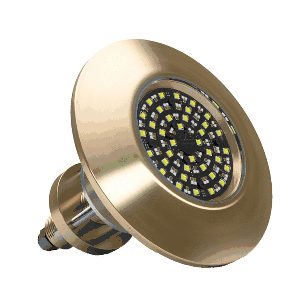

Lumishore EOS THX1604 Thru-Hull Mount and Driver
RGBW LED
Model: EOS THX1604 / 010-04522-00
Lumishore's THX1604 delivers a powerful 17,500 verified fixture lumens and an
ultra-wide 110° beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the
optional Lumishore Display.
THX models feature a standard 1" fitting and an external driver. Flush-fit in
design, with extremely low profiles.
Suitable for transom, side and bottom mounting.
Specifications
| AVAILABLE
LED COLORS |
EOS FULL
COLOR CHANGE (RGBW) |
| LUMENS |
39,375 |
| VERIFIED
FIXTURE LUMENS (WHITE) |
17,500 |
| NUMBER AND
TYPE OF LED |
White - 36
x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W |
| LED POWER -
HICOB ARRAY |
YES |
| TYPICAL LED
LIFE |
50,000+
HOURS |
| BEAM ANGLE
(DEGREES) |
110° |
| DRIVER |
Multi-Channel External Driver |
| SUPPLY
VOLTAGE |
24 V DC |
| MAX CURRENT
DRAW |
6.5A |
| HOUSING
TYPE |
MARINE
GRADE ALUMINUM BRONZE |
| USER
CONTROL OPTIONS |
From your
MFD and/or optional Lumishore Display |
| LIGHTS
SYNCHRONIZED |
YES |
| COLOR CYCLE
w/SPEED ADJUST |
YES |
| COLOR SWEEP
w/SPEED ADJUST |
YES |
|
CUSTOMIZABLE FAVORITES |
YES |
| FIXED &
RANDOM STROBES |
YES |
|
PROGRAMMABLE SCENES |
YES |
| WI-FI
CONTROL (APP) |
YES |
|
SOUND-TO-LIGHT |
YES |
| BRIGHTNESS
ADJUST |
YES |
| AUTO LIGHT
DISCOVERY & SETUP |
YES |
What's in the Box:
- One (1) EOS THX1604 Light
- One (1) External Driver
- One (1) 1M DMX cable
(60-0403)
