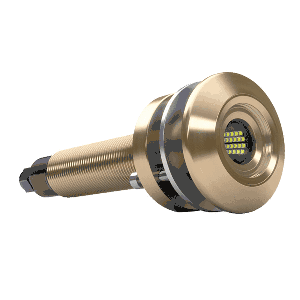

Lumishore ORA TIX204 Interchangeable Flush Fit
Mount White LED
Model: ORA TIX204 / 010-04524-00
The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile
interchangeable thru-hull.
Available in single color Blue, White or Green with a focused 60° beam angle.
TIX models feature an internal LED array and integrated driver for the ability
to service from inside the hull and to simplify installation.
Easily controlled by a standard on/off switch.
Suitable for transom, side and bottom mounting.
Specifications
| LED COLOR |
WHITE |
| LUMENS |
11,925 |
| VERIFIED
FIXTURE LUMENS (WHITE) |
5,300 |
| NUMBER AND
TYPE OF LED |
White - 11
x 10W High Power LEDs, Blue & Green — 22 x 3W High Power LED |
| LED POWER -
HICOB ARRAY |
YES |
| TYPICAL LED
LIFE |
50,000+
HOURS |
| BEAM ANGLE
(DEGREES) |
60° |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY
VOLTAGE |
12/24 V DC |
| MAX CURRENT
DRAW |
4.0A/1.9A |
| HOUSING
TYPE |
MARINE
GRADE ALUMINUM BRONZE |
| USER
CONTROL OPTIONS |
ON/OFF
SWITCH |
| Warranty |
3 YEARS |
What's in the Box:
- One (1) ORA TIX204 Light
with Built-in Driver
