Garmin Panoptix LiveScopeTM
System - Remanufactured
Model: 010-N1864-00
- See highly detailed,
easy-to-interpret live scanning sonar images of structure, bait and fish
swimming below and around your boat in real time, even when your boat is
stationary
- Easily adjust the
transducer to fit your fishing techniques; point forward to see around your
boat, or point down to see directly below your boat
- Attitude Heading
Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in
rough conditions
- See incredibly sharp
real-time scanning sonar images up to 200 feet down and away
- Simple plug-and-play
Garmin Marine Network connector makes it easy to install and seamlessly
integrate with your compatible Garmin chartplotter
Clearly, this is the most amazing sonar technology ever. You have never fished
like this before. Panoptix LiveScope is live, real-time scanning sonar. You can
actually see easy-to-interpret live scanning sonar images of fish swimming near
clearly defined structure. You can even see your lure as you retrieve it. And
your boat doesn't need to be moving. These images are so clear and precise that
with a little practice, you might be able to distinguish between species of
fish!
You get both LiveScopeTM Down and LiveScopeTM Forward modes in one transducer.
It's easy to adjust the transducer mode to fit your fishing techniques; use
LiveScope Forward to see remarkably clear images of structure and swimming fish
around your boat, and use LiveScope Down to see directly below your boat. The
view automatically updates on your compatible Garmin chartplotter. AHRS
stabilization keeps your sonar view steady, even in rough conditions.
LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar
images of structure and swimming fish in incredible detail below your boat -up
to 200 feet - even while your boat is stationary.
LiveScope Forward mode is an excellent tool for scouting and fishing out ahead
of your cast. You're looking at live, highly detailed and easy-to-interpret
scanning sonar images of structure and fish swimming all around your boat - up
to 200 feet - even while your boat is stationary.

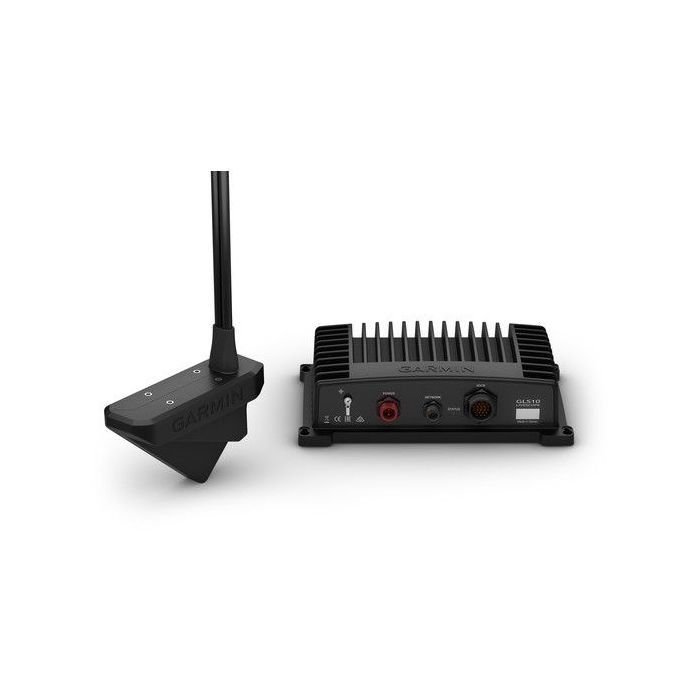

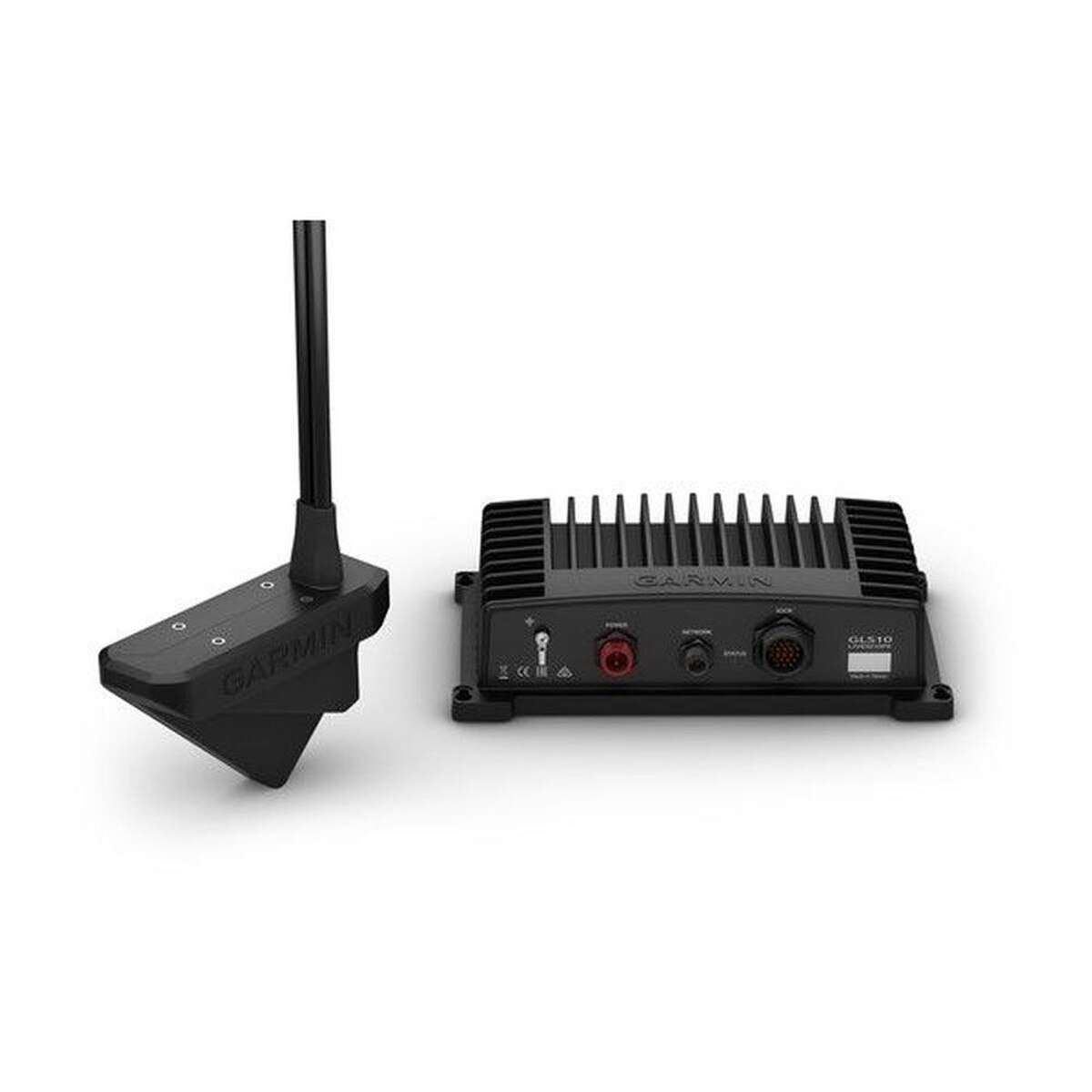

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar
black box with LVS32 transducer and simple plug-and-play Garmin Marine Network
connector, making it easy to install and seamlessly integrate with your
compatible Garmin chartplotter. Use the transducer as a supplemental traditional
and ClearVü sonar source to see a historical representation of structure and
fish below your boat.
Specifications
Water rating
|
IPX7 |
|
Garmin Marine NetworkTM ports |
1 (small connector) |
|
Temperature range |
Operating: -15 C to 70 C; Non-operating: -40 C to 85 C |
|
Sonar Features &
Specifications |
|
Frequencies supported |
530 - 1,100 kHz |
|
Transmit power |
500 W |
|
Maximum depth |
Down and Forward: 200 feet (61.0 m) |
|
Electrical |
|
Power input |
10-32 V |
|
Power usage |
21 W typical, 58 W max |
|
Fuse |
7.5 A |
|
Other |
|
Dimensions |
GLS 10 sonar black box: 9.6 in x 5.9 in x 2.6 in (24.5 x 14.9 x 6.5 cm);
LVS32 transducer: 5.4 in x 3.8 in x 1.8 in (13.7 x 9.7 x 4.6 cm) |
What's in the Box:
- LiveScope GLS 10
sonar black box - Remanufactured
- Panoptix LVS32
transducer - Remanufactured
- Trolling motor barrel
mount
- Trolling motor shaft
mount
- Transom mount
- Power cable
- 2 meter Garmin marine
network cable, small connector
- Network adapter cable
- Mounting hardware
- Documentation
