Garmin ECHOMAP UHD 74cv Combo US BlueChart G3 With GT24 Transducer - Remanufactured

Garmin ECHOMAP UHD 74CV Combo US Offshore g3 with GT24 Transducer - Remanufactured

Model: 010-N2335-01


• See below your boat in incredible detail with included transducer
• Navigate any waters with preloaded BlueChart® g3 coastal charts
• Share data with other devices on your network (7" and 9" models only)
• Manage your marine experience from nearly anywhere
• Control the most powerful trolling motor available
• Create your own maps on the fly and tailor them to fit your needs

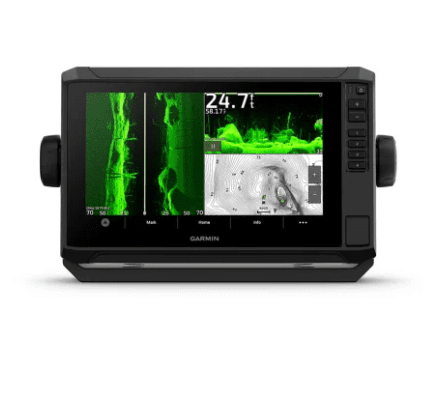

The sunlight-readable 7" touchscreen chartplotter features a quick-release bail mount and a transducer for Ultra High-Definition scanning sonar and CHIRP traditional sonar.

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts featuring integrated Navionics® data. Charts cover the coastal U.S., including the East and West coasts, Gulf of Mexico and the U.S. and Canadian sides of the Great Lakes.

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7" and 9" models only).

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.

Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.

Specifications


General
Physical dimensions	9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
Display size	6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
Display resolution	400 x 800 pixels
Display type	WVGA display
Weight	1.7 lbs.(0.77kg)
Water Rating	IPX7
Power consumption	15W
Antenna	Internal or external over NMEA 2000
Mounting options	Bail or flush
Receiver	5 Hz
Garmin Marine Network™ ports	1 Panoptix™ port
Maps & Memory
Preloaded maps	BlueChart® g3 (coastal maps)
Accepts data cards	1 microSD™ card; 32 GB maximum size
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks
Outdoor Recreation Features
Tide tables	Yes
Chartplotter Features
Garmin Sonar compatible	Yes
Supports AIS (tracks target ships position)	Yes
Supports DSC (displays position data from DSC-capable VHF radio)	Yes
GCV™ Black Box sonar support	Yes
ActiveCaptain compatible	Yes
Sailing Features	Yes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable	Yes
Dual-beam (77/200 kHz) sonar capable	Yes
Transmit power	500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology	Yes (Built-in)
ClearVü	Yes with CHIRP (built-in)
SideVü	No
Maximum depth	2,300 ft @ 77 kHz, freshwater
Bottom lock (shows return from the bottom up)	Yes
Water temperature log and graph	Yes
Sonar recording	Yes
Sonar history rewind	Yes
Connections
NMEA 2000® compatible	Yes
Transducer pin numbers	8
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports	None
Video output ports	None
Wireless connectivity	Yes

What's in the Box:

• ECHOMAP UHD 74cv with BlueChart Offshore g3 for U.S. - Remanufactured
• GT24UHD-TM transducer
• Power/data cable
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
