Simrad DD15 Linear Drive

Simrad DD15 Linear Drive




Availability: Usually ships the next business day
Simrad DD15 Linear Drive
21119896List Price: $US 2,799.00Our Price: $US 2,799.00

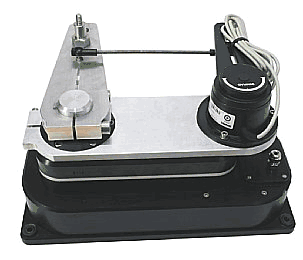

DD15 Drive Unit

The DD15 Direct Drive is a very strong and compact autopilot drive and more efficient than hydraulic and most electromechanical autopilot drive units.

It is powerful (the max. output torque of 150 Kgm is equivalent to 150 Kg force on the end of a 1 meter steering tiller) and is build for 24 hours per day continuous operation with a total weight of only 12 Kgs. The combination of the flat wound (pancake) electric motor with the efficient planetary and spur gearbox results in an extremely efficient drive unit to keep the battery charging time to the minimum.

The drive can be used on boats from 30 to 45 feet l.o.a. (or up to 150 Kgm rudder torque) equipped with a mechanical steering system that can be back driven. Due to the electro mechanical clutch, the direct drive can be back driven with the force of a finger tip leaving the mechanical steering as sensitive as without drive unit. The DD15 includes the Simrad RF300 Rudder Feedback unit with transmission link and 10 m (30 feet) of cable. It transforms the angular travel of the rudder to a digital signal read by the autopilot steering computer.

DD15 Drive Unit Key Features

  • Highly Accurate

    Minor incremental adjustments provide a smooth auto-steering experience.

  • Powerful

    The maximum power output of 150KG/M provides outstanding performance even under heavy loads.

  • Lightweight

    At just 12kgs, the DD15 won't slow you down.

  • High Sensitivity

    Due to the electromechanical clutch, the direct drive can be back driven with the force of just a fingertip, which allows the mechanical steering to remain just as sensitive as without the drive unit attached.

  • Rudder Feedback

    Includes the RF300 rudder feedback unit, which contributes towards gentle yet positive and accurate auto-steering.

  • Simrad Yachting Construction

    Brutally strong and built to withstand the environment.

AUTOPILOT / AUTOSTEERING

Max Boat Displacement
10.5 tons
Max Boat Length
45ft m
Max Torque
1370 Nm
Drive Unit Tiller Arm
250 mm \ 9.8 in

POWER

Power Supply
12V (1-4A) vDC

Getting Started

Autopilot Buyers Guide (en-us)

Installation Manual

DD15 Direct Drive Installation Manual (en-us)
