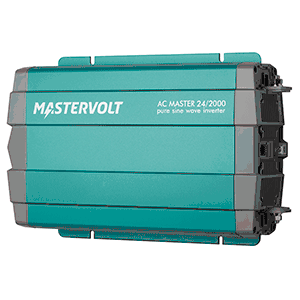

These affordable sine wave inverters convert 24V battery voltage into reliable
120 V 50/60 Hz grid power, making them ideal for recreational and
semi-professional applications. The AC Master series is easy to install and
delivers full output, even under the most demanding conditions. The pure sine
wave technology provides an outstanding power quality, ensuring the correct
functioning of sensitive equipment. The usage of high frequency switching
technology eliminates any annoying humming and buzzing sounds.
|
General specifications |
| Output
voltage |
100/110/115/120 V — 50/60 Hz (selectable) |
| Output
waveform |
true sine |
| Nominal
battery voltage |
24V |
| Recommended
battery capacity |
≥ 110 Ah |
| Continuous
power at 25 °C / 77 °F, cos phi 1 |
2000 W |
| Continuous
power at 40 °C / 104 °F, cos phi 1 |
2000 W |
| Peak load
(1 min.) |
< 2300 W |
| Peak load
(1 s) |
< 3500 W |
| AC
connection |
North
American socket with GFCI |
| Galvanic
isolation |
Yes |
| Efficiency |
93 % |
|
Display/read-out |
LED
indication: battery voltage, load level, status |
| Alarms |
potential
free alarm contact |
| Dimensions,
hxwxd |
9.8 x 17.4
x 3.3 inch |
| Weight |
11.5 lb |
|
Technical specifications |
| Technology |
high
frequency, input & output fully isolated |
| Low battery
voltage, switches off at |
21v |
| Low battery
voltage, switches on at |
25v |
| High
battery voltage, switches off at |
33v |
| High
battery voltage, switches on at |
29v |
| Input
current (nominal load) |
100A |
| No-load
power consumption (ON mode) |
< 1.0 A |
| No-load
power consumption (energy saving mode) |
< 0.05 A |
| Minimal DC
fuse (slow blow) |
125 A |
| Minimal
cable size |
35 mm2 |
| Harmonic
distortion typical |
< 5 % |
| Cos phi |
all power
factors allowed |
| Temperature
range (ambient temp.) |
-4 °F to
140 °F |
| Cooling |
temperature
and load controlled fan |
| Protection
degree |
IP21,
horizontal wall mounting |
| Protections |
over-temperature, overload, short circuit, high/low voltage, reverse
polarity (fuse) |
| MasterBus
compatible |
yes, using
a MasterBus AC Master Interface |
