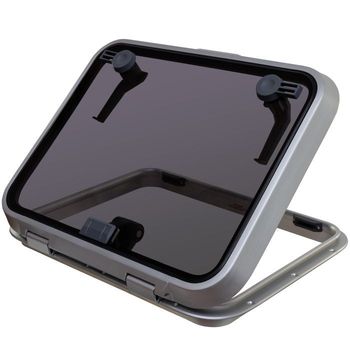

With its classic style, the Ocean Hatch is fitted to thousands of boats
around the world. Its rugged construction provides the ultimate protection
against the elements, whatever conditions you might face.
levers hold the lid open in any position up to 95°
■ Anodised aluminium frame for corrosion resistance
■ All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4").
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
|Lower Frame (mm)
||Hatch Weight (kg)
||Acrylic Window Thickness (mm)
|Lower Frame (in)
||Hatch Weight (lb)
||Acrylic Window Thickness (in)
|Length X (mm)
||Width Y (mm)
||Height Z (mm)
||Radii R (mm)
||Hinge Length HX (mm)
||Hinge Width HY (mm)
||Cut-Out Length (Flat/Flange) X1 (mm)
||Cut-Out Width (Flat/Flange) Y1 (mm)
||Cut-Out Radii (Flat/Flange) R1 (mm)
