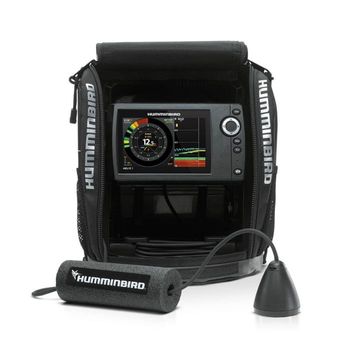

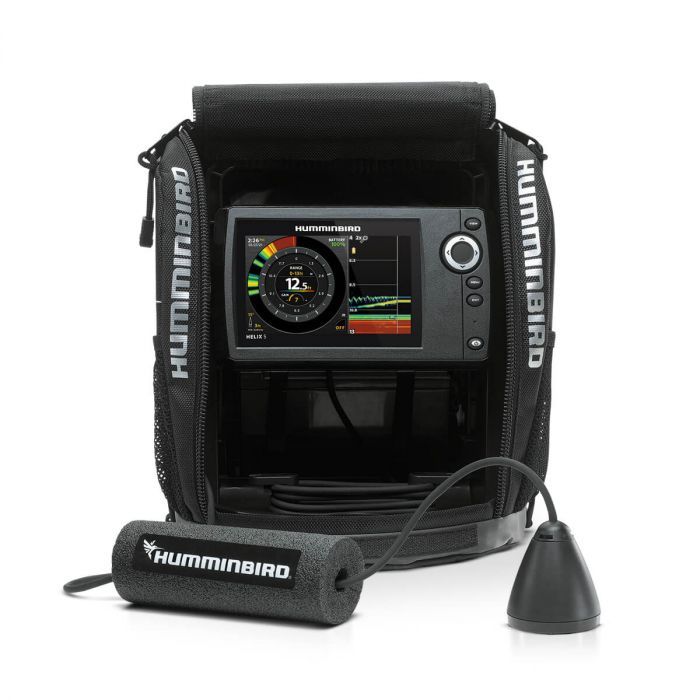

Humminbird ICE HELIX 5 CHIRP G3 - Sonar Only
ICE HELIX 5 CHIRP G3 - Sonar Only
The ICE HELIX 5 CHIRP G3 gives you a deeper understanding of what's below the
ICE, with exclusive features you won't find on any other ICE sonar unit. Utilize
crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation,
CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode, and
unprecedented viewing options specifically for the ICE angler. You'll watch it
all take shape on a full-color, 5" HD LCD display.
Features:
-
Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish,
bait, and structure on both the flasher and traditional 2D sonar views at
greater depths and range, with target separation down to 3/4".
-
CHIRP Interference Rejection: Six settings keep competing for sonar signals
from cluttering your screen, providing a clear view in both sonar and flasher
modes.
-
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom,
or suspended high in the water column. Utilize 2X zoom on the flasher screen
or up to 16X zoom on the 2D sonar view.
-
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides
everything you need to know, on a crystal-clear display with adjustable
brightness. Whether in a fish house or on open ICE, you'll easily be able to
see digital depth display, sonar returns, and more exclusive features, all
shown in real-time.
-
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and
jigs and get back down to the hot bite quickly.
-
Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle
mount protect your Humminbird ICE HELIX for safe transport and include
built-in cable and transducer management.
-
Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5
CHIRP G3 transducers. Simply install an accessory transducer, power cord, and
gimbal mount on your boat and you'll be ready to hit the water even after the
ICE melts.
-
What’s Included: ICE HELIX 5 CHIRP G3 fishfinder, Dual Spectrum CHIRP ICE
transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, and
portable bag.
-
1-Year Limited Warranty
Specifications:
-
Display Size - Diagonal: 5"
-
Display Pixel Matrix: 800H x 480V
-
Sonar-Standard: Dual Spectrum CHIRP
-
Sonar-Coverage: 15° & 21° @ -3dB
-
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
-
CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200
(75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide
Mode (140-200 kHz)
-
Sonar-Frequencies Supported: 50/80/200 kHz
-
Depth-Sonar: 400 ft
-
Interface: Keypad Control
-
Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode,
Portable
-
Memory Card Slot: None
-
Power Draw: 615 mA
-
Power Input: 10.8-20 VDC
-
Power Output Peak-to-Peak: 4000 Watts
-
Power Output RMS: 500 Watts
-
Screen Snap Shot: Not Supported
-
Sonar Recording: Not Supported
-
Mount-Standard: Portable
-
Transducer Mount Location: Portable
-
GPS Chartplotting: Not Supported
-
GPS Trackplotting: Included
-
LakeMaster Compatibility: Yes
-
Coast Master Compatibility: No
-
Navionics Gold/HotMaps Compatibility: No
-
Navionics Platinum + Compatibility: No
-
Platinum Compatibility: No
-
Heading Sensor GPS Compatibility: Yes
-
Upgradable Software: No
-
View Preset Keys: No
-
X-Press Menu System: Yes
-
Custom Digital Readout: Yes
-
Custom View Selections: Yes
-
Display Colors Grayscale: 256 Color
-
Speed: Not Supported
-
Temperature: Not Supported
-
Temperature Alarm: Yes
-
Temperature Graph: No
-
Transducer Included: XI 9 1521
-
HDMI Compatible: No
-
MEGA Live Compatibility: No
|
