Next-Gen Clarity: XPLORE
Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it
easier to find and stay on fish.
Designed for Ice: Includes
ice-specific cable lengths, inline fuses and connectors for hassle-free setup
and reliability in cold conditions.
Ice Mode: Streamlined
features and functionality, for a custom ice experience. Flip back to Open
Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
Real-Time MEGA Live 2 Sonar:
Watch fish move, react, and strike your lure with the next-gen clarity of MEGA
Live 2 in Forward or Down Mode, now with real-time zoom.
Lakemaster Mapping Included:
Ice XPLORE fish finders come with LakeMaster® mapping with features like
SmartStrike® to keep you on the fish.
Custom Bundle: Pre-matched
components streamline compatibility and installation, ready for your choice of
ice shuttle and pole for full on-ice functionality.
Warranty: Ice XPLORE
includes a 2-year limited warranty (Additional third year of warranty is
available with product registration). MEGA Live 2 is covered by a 2-year
warranty.
2D Flasher Modes: XPLORE
units now support advanced 2D flasher modes for enhanced vertical jigging and
ice fishing visibility. (Requires XI 14 transducer).
Included Components: XPLORE
fish finder; 18" Power cable with spade connectors and inline fuse; Premium
Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer;
Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors
and inline fuse.

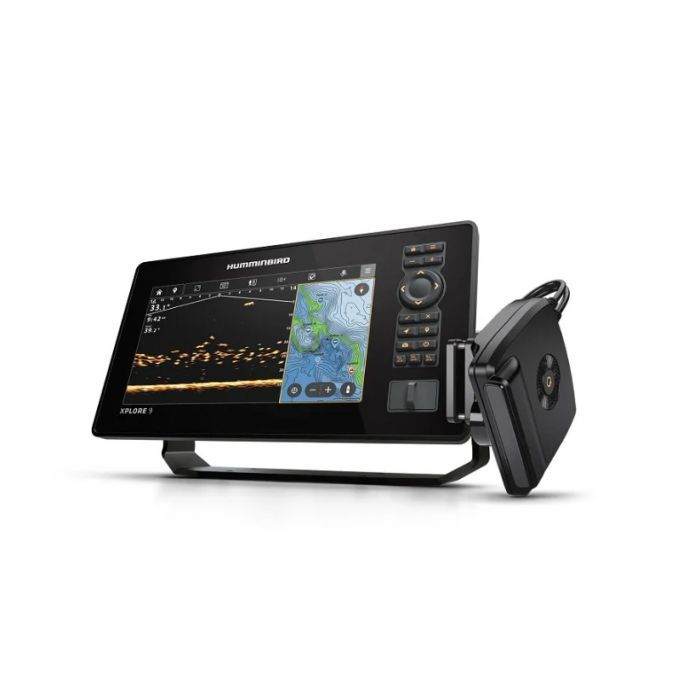

Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle
delivering next-gen clarity, helping anglers catch more fish and enjoy every
moment on the ice. Built for hardwater, this bundle delivers unmatched clarity,
precision, and control beneath the ice. The XPLORE Series fish finder combines a
vivid touchscreen display with intuitive mapping and sonar features, while the
MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and
lure action in incredible detail. Outfitted with right-sized, cold-weather-ready
cables and accessories tailored for ice fishing, this bundle is ready to hit the
ice when you are. Note: third-party ice shuttle and pole required for setup.
Easy to Use: ICE XPLORE's intuitive and streamlined interface provides quick
access to the key functions you need on the ice.
Unmatched Clarity: MEGA Live 2 provides real-time sonar imaging so you can see
fish, structure, and lure action in incredible detail.
LakeMaster VX Maps Included: Navigate over 13,000 lakes with 1-foot contours and
depth and shallow water highlights, all included with ICE XPLORE.
Designed For Ice Anglers: ICE XPLORE comes preset in Ice Mode, optimizing your
experience for hardwater use. This includes a consolidated home screen,
ice-themed waypoints, battery runtime monitoring, and flasher and 2D sonar
views.
Specifications
Display
Size - Diagonal
10.1 in
Length
6.26 in -
15.9 cm
Height
11.69 in -
29.69 cm
Width
3.3 in -
8.38 cm
Weight
4 lb 4.48
oz - 1.94138 kg
Display
Pixel Matrix
1280 x 720
Transducer
Included
MEGA Live
Imaging
Compatible
With
Minn Kota
US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2
Features
Touch
Screen, MEGA Live Imaging, Networking, Built In GPS, All Season, Bluetooth,
Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi
Memory Card
Slot
Dual Micro
SD
Sonar-Standard
MEGA Side
Imaging+, MEGA Down Imaging, MEGA Side Imaging, MEGA Down Imaging+
Sonar-Coverage
20°, 42°,
60° & (2) 86° @ -10dB
Live
Sonar-Coverage
20 degrees
x 120 degrees
Interface
Touch
Screen, Keypad Control
Power Draw
2.2 Amps
Power Input
10.8-20 VDC
Power
Output Peak-to-Peak
8000 Watts
Power
Output RMS
1000 Watts
Warranty
Three-Year
Warranty with Registration, One-Year Warranty
