100 W

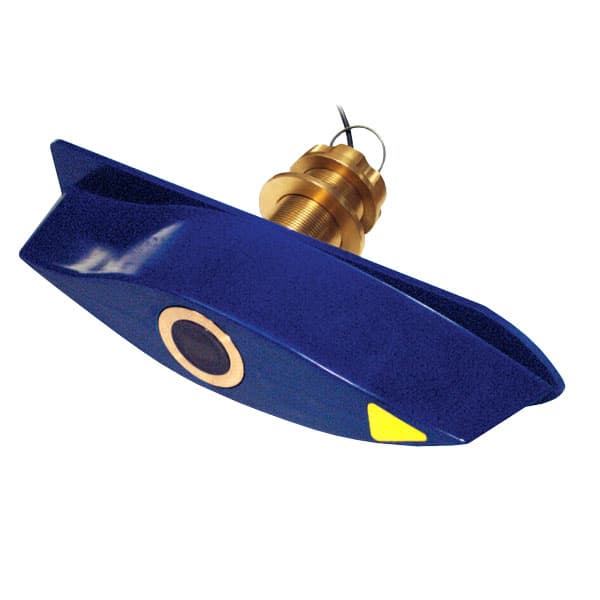

The B122 has an extra-long housing designed for use in thick-hulled, wooden
boats or vessels with a steep deadrise. The included High-performance Fairing
vertically orients the beam for strong return echoes, resulting in optimal
performance even at higher speeds. And being a retractable design, the insert
can be removed for servicing or storage.
Airmar's Smart™ Sensors have embedded
microelectronics—the transducer element and signal processor are only
millimeters apart. The signals from the depth transducer and temperature sensor
are processed right inside the housing itself. All that is needed to receive
depth and temperature data is a single cable into a compatible network or
display.
-
Depth and fast-response water-temperature sensing
-
100 W of power with a maximum depth of 180 m (590')
-
235 kHz frequency prevents mutual interference with other echo sounders on the
vessel
-
For thick-hulled or steep-deadrise vessel
-
Can install as a low-profile mount with adapter ring
-
Retractable insert in a bronze housing only
-
Available as an analog or digital Smart Sensor that outputs data in NMEA 0183
or NMEA 2000 protocol
-
NMEA 2000 certified or NMEA 0183 cable
Brand: Airmar
Technology
Acoustic Window: Urethane
Cable-Length: 6
m (20')
Comm Method: NMEA
0183
Common Use: Cruising/Racing
Sailboats, Leisure/Yachting
Conventional Beam: 14°
Country of Origin: USA
Data Rate: 1X
per second
Deadrise Range: Up
to 28° with fairing
Display Connector: 0
Frequency Band: 235
kHz
Functions: Depth,
Temperature
Hole Size: 51
mm (2"), 57 mm (2-1/4") installation with adapter ring
Hull Material: Fiberglass
or wood
Material: Bronze
Max Deadrise Angle: 28°
Max Depth: Up
to 180 m (590')—Broadband
Max Vessel LOA: Up
to 9 m (30')
Minimum Depth: 0.5
m (1.6')
Mounting Style: Thru-Hull
with Fairing
Power Rating: 100
W
Retractable housing: Yes
Single or Dual Frequency: Conventional
Single Frequency
Tilt Angle: 0°
Tilted Element: No
Weight: 3.9
kg (8.7 lb.)
