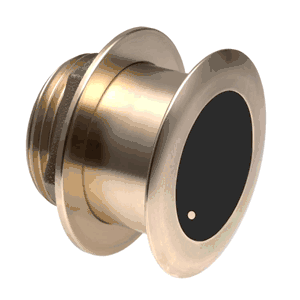

Furuno B164 Bronze Thru-Hull, Low Profile Transducer with Temp, 1Kw 50/200 KHz, 20 Deg Tilt (10-Pin) 526TID-LTD/20
Low Profile Transducer with Temp, 1kW (10-Pin), 20° Tilted Element
and 6 Degrees
Airmar B164 Housing Style Transducer
If a thru-hull flush-style transducer is called for, the Tilted Element
526TID-LTD/20 is right for hulls with a deadrise angle of between 16° and 24°.
This transducer compensates for deadrise by angling the element inside the
The transducer is labeled with an arrow on top of the housing that should point
towards the keel, whether it is installed to port or starboard. This ensures
that the tilted element within the housing is given the correct orientation.
- 50/200 kHz
- 20/6 degree Beam
- Bronze Thru Hull with
- 30 Foot Cable with
