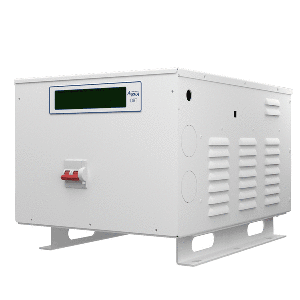

ASEA Power Systems DBT12 Dock Boost Isolation Transformer
Smart Boosting Isolation Transformer, 12 kVA, 50 Amps
DBT12 Dock Boost Transformer, 2nd Gen., MFG# 628009-000, isolation transformer
provides precision voltage regulation, delivering protection from the most
common shore power problems. 167-270, 57-63Hz, 50A input. 12kVA, 50A, 207-264
VAC output
The Dock Boost Transformer (DBT) provides precision voltage regulation to the
vessel, delivering complete protection from the most common shore power
problems, including: brownouts, spikes, sags, and low-line or high-line voltage
conditions from the dock power pedestal. The DBT also provides three levels of
boost to keep your ship powered even when input voltages sag by 35%.
The ASEA Dock Boost Transformer surpasses the Charles Iso-Boost with flying
colors; the smaller footprint, and 46% weight decrease makes the unit not only
the perfect replacement, but an undeniable upgrade.
In addition to the DBT's mechanical dominance, technical features include a CPU
board with enhanced capabilities for communications and monitoring, auto-restart
after latching, data capture of shutdown events to aid troubleshooting, and an
increased programmed trip limit.
Download Data Sheet
Features:
- Auto-Restart from shore brownout or blackout
- Auto-Restart from overload
- Fault shield for bonded, galvanic
bridged/isolated ground
- Modbus (RS-485) remote diagnostics
- kWh meter
- Advanced power monitoring (input/output
parameters)
- Microprocessor based over and under
voltage/current protection
|
Display
|
LCD Display
|
|
Input Voltage
|
167-270 VAC 50/60 Hz
|
|
Output Voltage
|
207-264 VAC 50/60 Hz
|
|
Other Functions
|
Automatically adjusts for low/high voltage, brownouts, spikes, or surges.
|
|
Dimensions
|
12.1 x 13.2 x 18.7 inches, 127 lbs.
|
|
Waterproof
|
No
|
|
Warranty
|
18 months after shipping or 12 months after commissioning
|
