PRODUCT DESCRIPTION
The RCL-100 LED searchlight continues to utilize the same rugged design as the
original RCL-100D, but incorporates a new efficient 9 LED array that produces
over 220,000 candelas of light. The strong and light aluminum housing along with
glass lens are weather-sealed for years of trouble-free operation. Other
features include a wired remote that allows continuous 360 degrees of rotation
at fast or slow speed without the hassle of a hard stop. With a 7-degree beam
angle, the light also provides elevation angles at 9 degrees up and 17 degrees
down to make lighting draw bridges, buoys, and docks a breeze.
Not all searchlights are created equal and the body is triple-primed and painted
with UV stabilizer to survive years in the harsh marine environment. The
RCL-100 LED searchlight internals a fully enclosed and provide precise pitch
control of the beam while staying protected. The efficiently designed LED array
provide over 40,000 hours. The light also includes our Exclusive XRCiZ™
feature, independently rotating every 30 days from activation to ensure all
bearing surfaces are free of corrosion and all electrical contacts functional.
The RCL-100 LED is weather-resistant and operates with 12 or 24 DC power.
The new ACR RCL-100 LED light is sold in a convenient kit configured as follows.
-
Wired Kit: RCL-100 LED Searchlight with Master Controller and Wired Point Pad
Controller (P/N 1951 or 1951.B)
Main Features of the New RCL-100 LED:
-
Ultra-bright, 9 LED array generates over 220,000 peak candela
-
Efficient, long-life LED’s – 40,000 operating hours
-
Reduced power consumption demand by up to 50% on 12V vessels
-
The controller has state-of-the-art electronics to protect the light from most
power surges
-
Internal elevation mechanism for precise pitch control of beam; protects
elevation mechanism from weather
-
Rugged triple-primed and sealed, marine-grade aluminum housing
-
Includes fingertip remote control Point Pad; up to three remote Point Pad
units may be installed on system; surface/flush mount options included
-
Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from
activation to keep all bearing surfaces free of corrosion and all electrical
contacts functional
-
The wiring harness of 15 feet (4.57 m)
-
Two-speed motor
|
Size
|
8 x 9 x 8” (20.3 x 22.9 x 20.3 cm)
|
|
Weight
|
7.2 lbs (3.2 kg)
|
|
Material
|
518 Die-cast aluminum
|
|
Color
|
White or Black
|
|
Operation
|
Remote-controlled wired Point Pad
|
|
Beam Angle
|
7° vertical, 7° horizontal
|
|
Elevation Angle
|
9° up, 17° down
|
|
Rotation
|
360° continuous
|
|
Rotation Speed
|
Fast 31° per second, slow 20° per second
|
|
Elevation Speed
|
2.8° per second
|
|
Lamp
|
9 LED Array (220,000 cd)
|
|
Accessories
|
Master Controller (URC-103) and Point Pad Installation Kit (9283.4),
Master Controller Kit (1949)
|
|
Footprint Diameter (without pedestal)
|
4.75” (120.7 mm)
|
WARRANTY LENGTH: 1 YEAR
This product is warranted against factory defect in material and workmanship for
a period of 1 (one)* year from date of purchase or receipt as a gift. During the
warranty period ACR Electronics, Inc. will repair or at its option, replace at
no cost to you for labor, materials or return transportation.
For further assistance, please contact our Technical Service Department at :
ACR Electronics, Inc.
5757 Ravenswood Road
Fort Lauderdale, FL 33312-6645.
Email: service@acrelectronics.com, Fax: +1 (954) 983-5087, Telephone: +1 (954)
981- 3333.
This warranty does not apply if the product has been damaged by accident or
misuse or as a result of service or modification by other than the
manufacturer. The COMPANY MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
OR ANY OTHER MATTER concerning THIS PRODUCT, except as otherwise expressly
stated in the previous paragraph. The Company shall not be liable for
consequential or special damages. To place the warranty in effect, choose a form
above and complete it entirely. Or you may fill out the registration card
accompanying your product (if applicable) which must be returned to ACR
Electronics, Inc. within ten days of purchase.
FAQ
How can I obtain a replacement bulb for my ACR searchlight?
Usually, you can purchase the bulb from your local ACR dealer. If your dealer is
not able to supply the bulb, you can always obtain it from ACR by emailing
service@acrelectronics.com or
using our
Contact
Us Form.
Can I switch my RCL-100D light unit with the new LED Version?
Yes, but you will also need to replace your existing master controller with a
new URC-103, which is included in P/N 1951.
Why do I need a new Master Controller if I am just switching to the LED version
of the RCL-100?
The URC-102 Master Controller (RCL-100D) has a slow turn-on voltage for the
halogen bulbs which the LEDs do not need. The voltage for the halogen bulbs,
after switch on, is continuously regulated, which induces noise in the LED
powerhead.
Is there any wiring difference between the ‘old’ and new RCL 100/LED?
The same coax cable, point pad and wire harness colors are used.
Is the RCL-100 LED light compatible with 12V or 24V systems?
It is compatible with both 12 and 24 V.
How long will the LED lights last on the RCL-100 LED?
The LED’s are rated to last over 40,000 hours each.
If one LED bulb fails, can it be repaired?
The complete LED Power Head Assembly must be replaced.
Can the URC 103 controller for the LED version be used on the RCL 100D halogen
unit?
This controller will blow the halogen bulbs at switch on.
Can I find a troubleshooting guide for the RCL-100 LED?
Yes, please review the manual. (In the
Downloads Section
below)
What is the maximum current (Amp) that the light needs to be supplied with?
The light uses a maximum of 3.5 Amp and has a 5 amp fuse installed.
Is there a 3D rendition of the light available for planning purposes?
Yes, there is a 3D SolidWorks package available. Contact
service@acrartex.com
DOWNLOAD

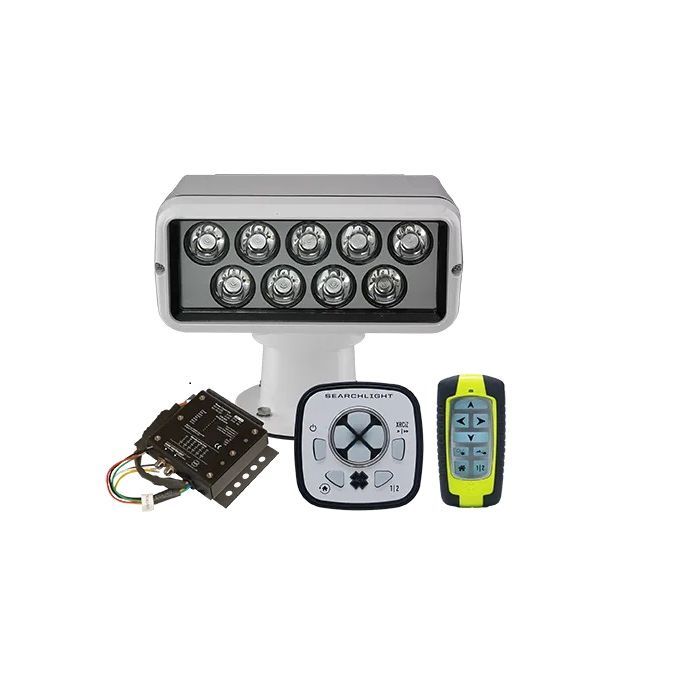

URP-103 Wired Point Pad
The URP-103 Point Pad is designed with modern boaters in mind and features updated styling and a sleek, contemporary aesthetic that blends seamlessly with today’s marine dashboards and control panels – perfect for refits or new installs. Whether you’re upgrading an existing setup or outfitting a new vessel, ACR’s next-gen searchlight point pad brings with it a new level of style, function, and flexibility.
URC-104 Master Controller
The URC-104 Master Controller may be out of sight, but it’s central to everything. Designed to be mounted discreetly behind the dash, the URC-104 is the critical hub that enables seamless remote operation of your RCL-100 LED and RCL-50 LED searchlights. It is the brains behind the operation, ensuring full functionality of both the URP-103 Point Pad Controller and the URH-103 Handheld Wireless Remote.
URH-103 Wireless Handheld Remote
Bringing unmatched convenience and control to your fingertips, the URH-103 Handheld Wireless Remote is a first-of-its-kind handheld remote option for the RCL-100 LED and RCL-50 LED searchlights. The remote features an ergonomic modern design that is built for both form and function. The embossed ACR logo adds a touch of distinction, while backlit buttons ensure seamless operation during nighttime use. Thoughtfully engineered ridges along both sides provide a secure, non-slip grip—even in wet or rough sea conditions—so you stay in control when it matters most.
