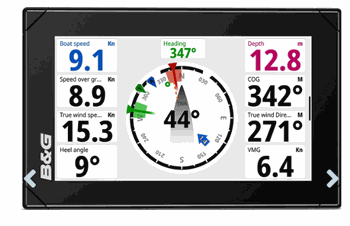

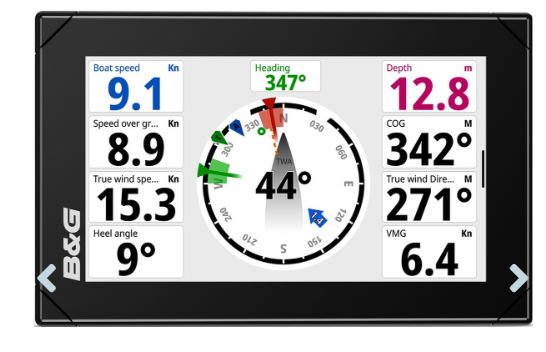

B&G Nemesis 7 Sailing Display
Details
BNG Nemesis 7 Sailing
Display
Model: 000-16518-001
- Pre-set dashboards
or easy to use drag & drop editor for full customisation
- Wide choice of
digital data displays including graphical gauges, SailSteer™, tank levels,
IP camera views, histograms and images
- Automatic Context
modes: Upwind, Reaching, Downwind, Pre-start, Motoring, Pilot Status
- Bright touch
screen, with super-wide viewing angles
- Adjustable palettes
and backlight for optimal view in all conditions
- Mount in portrait
and landscape
- Connect multiple
screens via the Nemesis Hub
- Ethernet and/or
NMEA2000
Nemesis® 7 is the perfect solution for displaying all the crucial sailing data
you need, on the mast or at the helm. The super bright touch screen provides
outstanding visibility, from anywhere on the boat, in all conditions.
Completely customisable; choose from pre-set templates, set up automatic point
of sail dashboards or entirely create your own. You can view your trusted
sailing data in precisely the way you want to, ensuring you get the most
accurate data right in front of you, all the time.
Specifications
|
Display |
|
Display Resolution |
1024 x 600 |
|
Screen Brightness |
1200 nits |
|
Viewing Angles |
80 top/bottom, +/ 80 left/right |
|
Connectivity |
|
Ethernet Ports |
1 x 100 Mbit |
|
Connectivity Wi Fi |
802.11 b/g |
|
NMEA 2000 Connectivity |
1 x NMEA 2000 Micro-C port, 1 LEN |
|
Electrical |
|
Power Consumption max |
12W |
|
Recommended Fuse Rating |
1.5 Amp |
|
Supply Voltage |
10 - 32 V DC |
|
Environment |
|
Operating Temperature Range |
-15C to +55C (-5F to 131F) |
|
Storage Temperature Range |
-20C to +60C (-4F to 140F) |
|
Waterproofrating |
IP67 |
|
Physical |
|
Compass Safe |
500mm (19.6") |
|
Dimensions W x H x D |
195 x 123 x 68mm (7.7 x 4.8 x 2.7") |
|
Mounting Type |
Flush, Panel |
|
Weight |
0.7 kg (1.5 lbs) |
|
Warranty Period |
2 years |
|
