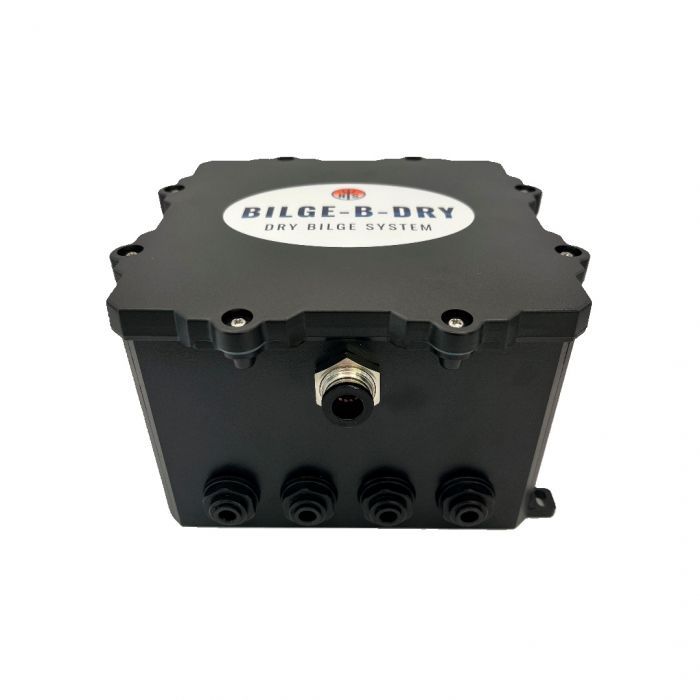

BILGE-B-DRY Quad Pump - 24VDC
Bilge-B-Dry Quad Pump 24v Dry Biilge System
Model: BBD-2025-244
- The world’s ONLY Smart
Device enabled Dry Bilge System on the market with customizable operation!
- An efficient, reliable
method to remove excess bilge water on all boats, including stepped-hull boats
where water sits forward of the "step." Use BILGE-B-DRY after washdown, heavy
rain or sea spray accumulation, rough seas, untreated leaks, etc.
- Heavy-duty pump enclosure
with improved durability, enhanced pump efficiency and streamlined internal
plumbing.
- A choice of four pump
configurations in 12vdc or 24vdc for optimal water removal.
- Pump diaphragm design can
run dry for extended periods of time without damage.
- A compact pump design for
easy installation in tight or awkward spaces in any orientation (horizontal or
vertical).
- Customized pump scheduling
with the free Mobile App for Apple and Android devices.
- Quick disconnect wiring
harness with optional "trigger" connection to a helm switch, float switch or
water sensor.
- An environmentally friendly
low-profile bilge water pickup design with a replaceable filter system.
- Configured to automatically
cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.
BILGE-B-DRY is the world’s only Smart Device enabled Dry Bilge System on the
market!
Enjoy simple installation and customized scheduling control at your fingertips
with our Mobile App for Apple or Android devices. Due to size and placement,
traditional bilge pumps cannot remove the last few inches of excess water that
accumulates in your bilge. With BILGE-B-DRY, you will finally be able to
eliminate cabin odors, reduce mold or corrosion and protect your electrical
wiring by removing every drop of water from your bilge. Your cabin will be
odor-free, and your bilge will be the driest and cleanest at the marina!
Specifications
Max current |
0.7 amps
(24 vdc) |
Idle
Current |
0.03 amps
(24 vdc) |
Pump |
Maximum
flow |
1.0 GPM |
Pump head |
10 feet |
Pump
suction |
5
(vertical) feet |
Diaphragm
design |
Able to run
dry for extended periods without damage |
Life
expectancy |
1000+ hours |
Control board |
Life
expectancy |
100,000
cycles |
Wi-Fi & RF
Grant |
FCC Rule
Part 15C |
Dimensions (in) |
Enclosure |
4.1 H x 6.8
W x 7 L |
Rectangular
Pickup |
0.98 H x
2.4 W x 3.9 L |
Weight |
2.4 LB (not
including tubing, pickup, or accessories) |
Tubing |
Input
tubing |
1/4" Outer
Diameter |
Output
tubing |
3/8" Outer
Diameter |
Input
Voltage |
24 vdc (20
— 26 vdc) |
What's in the Box:
- Four motors/diaphragm pumps
- 20 feet of input tubing
provided (PVC or PU) - ¼" OD
- 6 feet of output tubing
provided (PVC or PU)-3/8" OD
|
