Multi

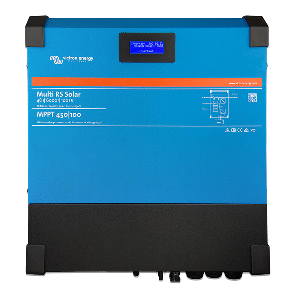

RS Solar 48/6000 Inverter/Charger
The Multi RS Solar 48/6000 is a 48V 6kVA inverter/charger with two independent
3kWp PV 450V MPPT trackers for 6kWp total panel capacity. It supports direct
grid connection without batteries—perfect for starting simple and adding storage
later.
Updated in mid-2023 to a dual tracker design, its high-frequency technology
delivers exceptional efficiency in a quiet, lightweight package with low standby
power. Monitor all parameters via the integrated display or the VictronConnect
app, which also provides historical trends, firmware updates, and configuration
tools. Connect to a Cerbo GX for advanced ESS functions, like zero-export to
block grid feed-in and backup mode to power critical loads during outages.
Operating Modes:
·
Hybrid mode – Stores excess solar energy in a battery, to be used during the
night or periods of high demand. Supplies additional power from the battery when
demand exceeds grid capacity.
·
Backup mode – Switches to backup mode during a grid outage.
·
Off-grid mode – Operates without a grid connection.
·
Generator mode – Controls the generator to minimize run hours. Supplies
additional power from the battery when demand exceeds the capacity of the
generator.
·
PV Inverter mode – Works as a PV inverter without a battery.
PowerControl & PowerAssist - Boosting the capacity of the grid or a generator
A maximum grid or generator current can be set. The Multi RS will then take
account of other AC loads and use whatever is extra for battery charging, thus
preventing the generator or grid from being overloaded (PowerControl function).
PowerAssist takes the principle of PowerControl to a further dimension. Where
peak power is so often required only for a limited period, the Multi RS will
compensate insufficient generator or grid power with power from the battery.
When the load reduces, the spare power is used to recharge the battery.
Display, Bluetooth & VictronConnect app
The display reads battery, inverter and solar parameters. The same parameters
can be accessed with a smartphone or other Bluetooth enabled device , using the
VictronConnect app.
Extendable PV capacity, both AC -coupled & DC -coupled
The integrated 6 kWp PV capacity can be extended by adding solar chargers to the
system. Alternatively, the PV capacity can be extended by installing PV
Inverters, of which the output power will be automatically controlled by the
integrated frequency shift power control.
Communication Ports
VE.Can connection to a GX device for system monitoring, energy meter (11), data
logging, and remote firmware updates.
VE.Direct connection to a GlobalLink 520 for remote data monitoring.
I/O
Connections
Programmable relay, temperature sensor and voltage sensor connections
