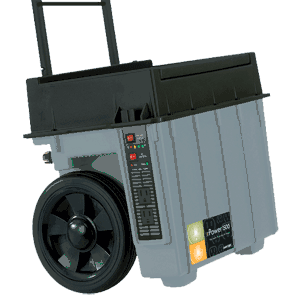

Xantrex x Powerpack 1500 802-1500
| XPower Powerpack 1500 - 120 VAC/60 Hz
XPower Powerpack 1500 produces household electricity for products
rated at 1500 watts or less. A clean and quiet alternative to a
generator, XPower Powerpack 1500 integrates a 60 amp-hour AGM
battery with a 1500-watt inverter and produces a 3000-watt surge.
This system is built to run a range of appliances such as a standard
size refrigerator and microwave oven, and office equipment such as a
computer, monitor and fax machine. |
|
|
Description
Portable Powerpack
XPower Powerpack 1500 is a portable power system that can supply up to 1500
watts of household electricity – enough to run almost any electronic product or
appliance you might connect to your wall outlet at home. XPower Powerpack 1500
consists of a battery pack that stores electrical energy, state-of-the-art
electronics that convert 12 volts from the battery pack to household power, an
AC power panel that contains two standard outlets, and a DC power panel that is
used to run 12 volt products. These components are packaged into a rugged “cart”
with a removable waist handle that allows XPower Powerpack 1500 to be wheeled
from room-to-room or outdoors over rough terrain.
XPower Powerpack 1500 is an excellent alternative to a generator – no noise,
no fumes, no fuel, and no moving parts. With the accessories provided, recharge
XPower Powerpack 1500 using utility power from your wall outlet, from your
vehicle, or from a solar panel.
Features
- Powers AC products up to 1500 watts
- Easy to monitor, dual-outlet, AC panel
- Built-in 1500 watt inverter with protection features
- Industrial design
- Quick and easy to recharge
- One year warranty
Accessories
- AC Charger – recharge XPower from a standard wall outlet
- DC Charging Cable – recharge from your car, truck or RV
Specifications
|
|
Electrical Specifications |
|
|
115 volt AC section |
|
|
|
|
AC output power (10 minutes) |
|
1500 watts |
|
|
AC output power (continuous) |
|
1350 watts |
|
|
AC surge power (max) |
|
3000 watts |
|
|
AC output voltage (nominal) |
|
115 volts |
|
|
AC output frequency |
|
60 Hz +/- 4 Hz |
|
|
AC output waveform |
|
Modified sine wave |
|
|
Inverter no-load current |
|
0.3 amps (battery drain with no load
on inverter) |
|
|
|
|
|
|
|
12 volt DC section |
|
|
|
|
Internal battery type |
|
Sealed lead acid, AGM |
|
|
Internal battery capacity |
|
60 amp-hours, 600 CCA |
|
|
Internal battery voltage (nominal) |
|
12 VDC |
|
|
DC power socket (circuit breaker) |
|
12 amps (automatic reset) |
|
|
|
|
|
|
|
Charging System |
|
|
|
|
AC charger bulk charging current (max) |
|
5 amps |
|
|
Peak charging voltage (nominal) |
|
14.4 volts |
|
|
Float charge voltage (nominal) |
|
13.6 volts |
|
|
General Specifications |
|
|
Operating/Storage temperature |
|
32°F - 104°F (O°C - 40°C) |
|
|
Inverter low battery alarm (nominal) |
|
10.7 volts |
|
|
Inverter low battery shutdown
(nominal) |
|
10.0 volts |
|
|
Dimensions (H x W x D) with no handle |
|
14.8 x 15.6 x 12.3" (37.6 x 39.6 x
31.2cm) |
|
|
Dimensions (height with handle) |
|
38.0" (96.5 cm) |
|
|
Weight |
|
60 lb (27.3 kg) |
|
|
Warranty |
|
One year |
|
|
Part number |
|
802-1500 |
|
|
|
Note: Specifications subject to change
without notice. |
|
|
Applications
For power emergencies
Run essential appliances like refridgerators, cordless/mobile phones, radios,
fireplace fans, table lamps, microwaves etc. when the power goes out
For work and productivity
Operate power drills, belt sanders, circular saws, hedge trimmers, leaf
blowers, vacuums, computers, large monitors, fax machines, and inkjet printers
For recreation
Run blenders, video games, TV and VCRs, satellite equipment, coffee makers,
portable coolers and more
| Operating Times
How Long Will it Provide
Power?
|
AC Powered Products |
Watts(1) |
Hours(2) |
|
Radio |
8 |
60 |
|
Portable Stereo |
20 |
23 |
|
13” TV/VCR |
100 |
4 |
|
Refrigerator – 18
cu. Ft.(3) |
150 |
4 |
|
Fax Machine (4) |
120 |
3 |
|
Computer with 15”
Monitor |
200 |
2 |
|
Hedge Trimmer |
230 |
1.2 |
|
Circular Saw (12 A)
(5) |
900 |
.25 |
|
Microwave Oven |
1000 |
.2 |
DC Powered Products
|
Watts(1) |
Hours(2) |
|
Cellular Telephone
(6) |
6 |
100 |
|
Fluorescent Light |
8 |
75 |
|
Portable Cooler |
30 |
14 |
|
Tire Inflator |
100 |
3 |
(1) Represents actual
power consumption as measured on sample products
(2) Operating times
assume a fully charged battery and may vary based on model/brand used
(3) Assumes 40% duty
cycle
(4) Assumes continuous
operation (send or receive)
(5) Assumes continuous
operation (blade engaged, but not cutting)
(6) Represents talk time
available from 34 recharge cycles |
 |
| |
| Document Type |
Document Name |
Last Updated |
File Type |
Size |
Download |
| User Guide |
XPower PowerPack 1500 User Guide |
10/4/2002 |
 |
1113 KB |
 |
| Data Sheet |
XPower 1500 Powerpack Data Sheet |
8/12/2003 |
|
68 KB |
|
|
|
| |
|
