Furuno 1st Watch Wireless Radar, 24 nm, 4 kw DRS4W (No cable included)
1st Watch Wireless Radar
The world's first wireless Radar that you can access directly from your iOS
devices.

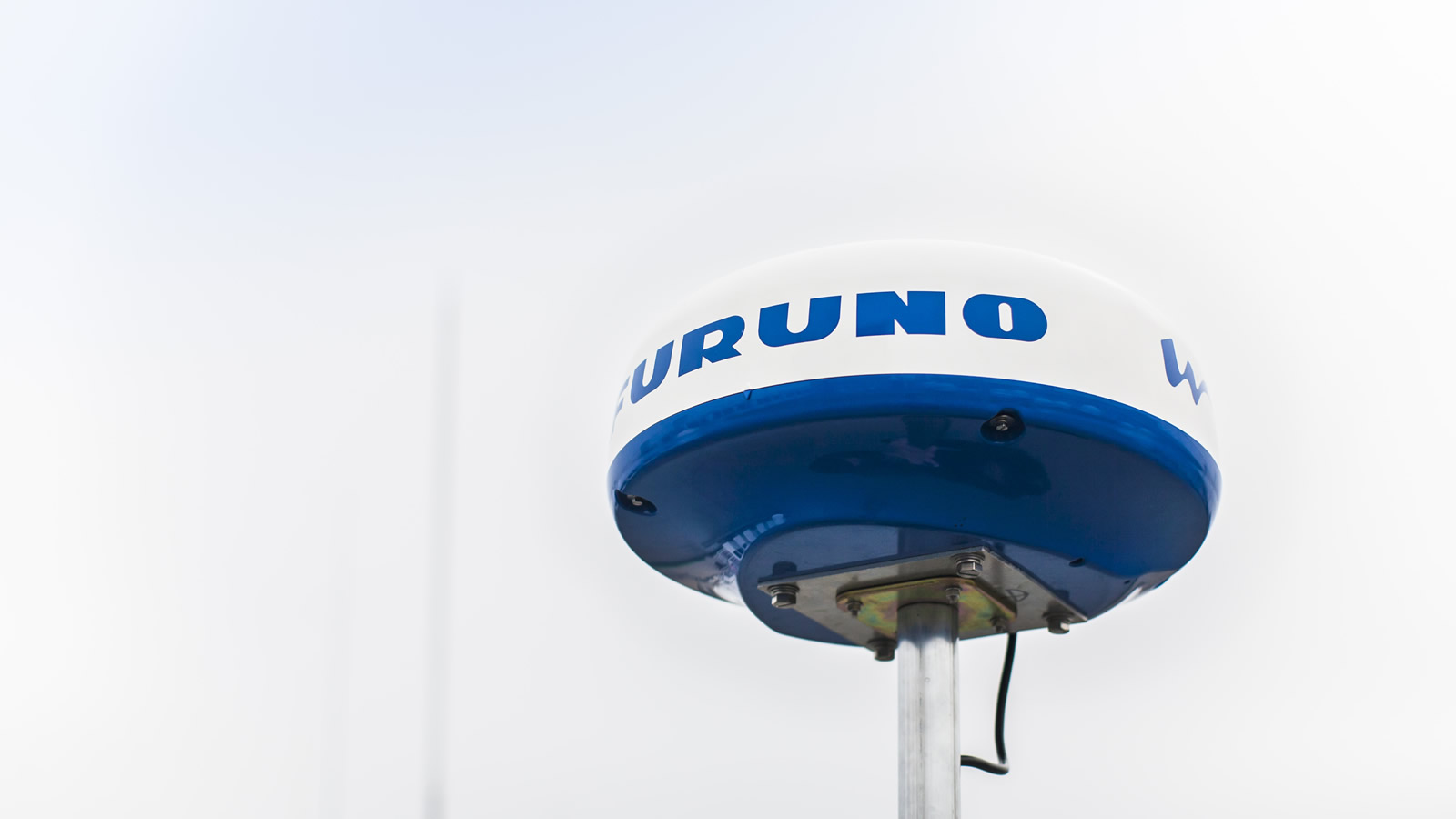

The FURUNO DRS4W is the first radar antenna in the world that allows you to
wirelessly access radar images on your iOS devices, combining ease of use with
great flexibility. After installing and setting up the application available
from the Apple store for free, you can watch radar images directly on your iPad
or iPhone. You are free to move around on your boat whilst still having complete
information of your surroundings.
Specification:
ANTENNA
Peak Output Power |
4 kW |
Type |
?488 mm Radome (19 inch) |
Frequency |
9410MHz?30MHz, P0N |
Beam Width (Horizontal) |
7.2?(3 dB) |
Beam Width (Vertical) |
25?(3 dB) |
Range Scales |
0.125 to 24 nm |
Antenna Rotation Speed |
24 rpm |
Weight |
5.7 kg |
DISPLAY
Display Unit |
iPad/iPad mini/iPhone (Customer supply) |
Display Mode |

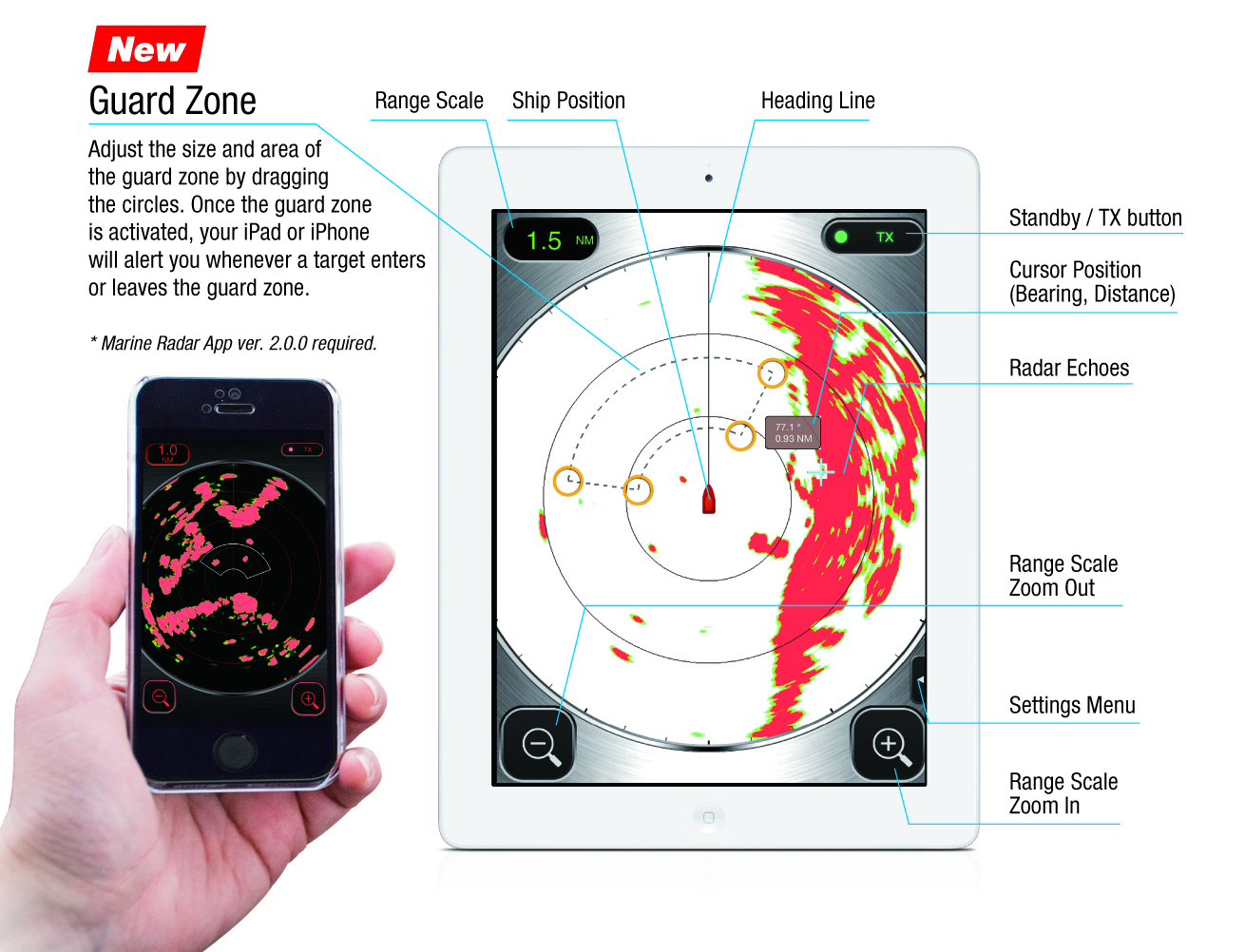

Auto Gain, Auto STC, Rain, Auto Noise rejector, Sector blank, Off
center, Cursor (measure target), Guard Zone alarm |
ENVIRONMENT
Temperature |
Temperature: -25?C to + 55?C |
Waterproofing |
IPX6 |
POWER SUPPLY
Power Supply / Consumption Current |
12-24 VDC: 2.1/1.0 A |
Technical Info
Interfacing and Installation
|
