Furuno 1815 8.4" Color LCD 19" 4kW 36 Nm Radar with 10M Cable
Fully Automatic Gain for Simplified Use
MODEL1815 is an 8.4” color LCD radar designed for pleasure craft and small
fishing boats. The Radar has easy-to-use, intuitive controls, while maintaining
the high performance you expect from FURUNO products. Even in poor visibility
such as fog or storms, the radar produces detailed pictures of coastline and
targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The
waterproof display makes it ideal for exposed installations, such as fly
bridges.
MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode
technologies to ensure optimum performance in detecting and ranging targets of
interest.
Features
-
Compact Radome antenna with 4 kW transmitter output power
-
Low power consumption of 38 W at the most
-
Easy installation and intuitive operation
-
Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter
To display targets clearly and accurately, the gain must adjusted. The
MODEL1815 can do this automatically for you. By automatically adjusting the
gain, the Radar eliminates unnecessary echoes and display a clear image.
-
Fast Target Tracking™ (TT) function
Fast Target Tracking TM (TT) function manually or automatically
acquires and tracks 10 targets. After selecting a target, it only takes a
few seconds for a speed and course vector to be displaed. With accurate
tracking information, estimation of other vessel's course and speed is made
easier.
-
AIS display
-
True Trail mode
When using the True Trail mode, moving objects will show up on the main
screen with a gradational trail. These trails make it possible to see the
movement of nearby vessels in the blink of an eye.
* Heading data and positional data are
required.
-
True view mode
-
User-programmable function key
-

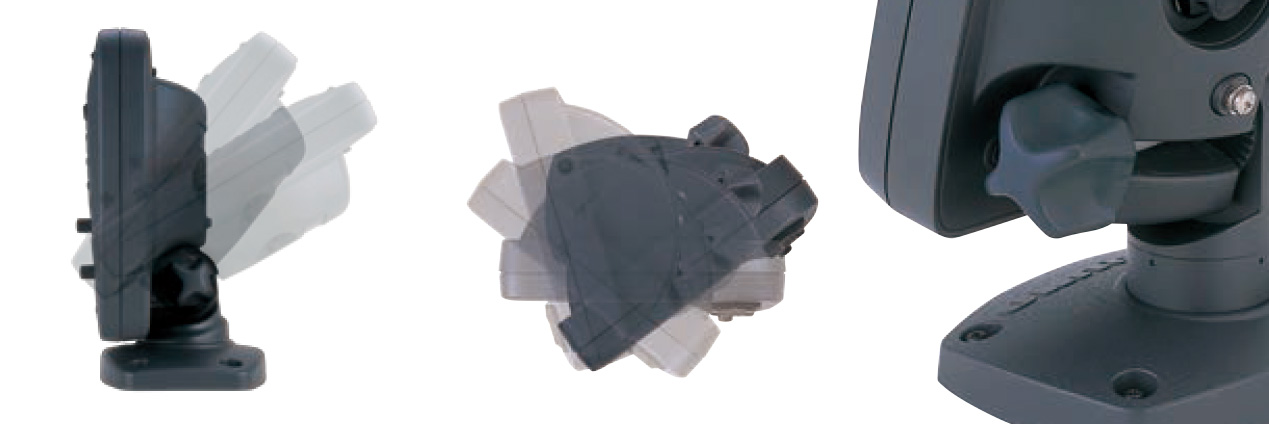

Swivel mounting bracket to adjust the angle of the display unit
Specifications
ANTENNA
| Peak Output Power |
4 kW |
| Type |
488 mm (19") radome |
| Frequency |
9410 MHz ± 30 MHz |
| Beam Width (Horizontal) |
5.2° |
| Beam Width (Vertical) |
25° |
| Range Scales |
0.0625 - 36 NM |
| Minimum Range |
25 m |
| Antenna Rotation Speed |
24 rpm |
| Weight |
6.5 kg 14.3 lb |
DISPLAY
| Display Unit |
8.4" color LCD |
| Display Mode |
Head-up, Course-up*, North-up*, True view, True motion**
* Heading data required
** Heading data and position data required |
| Other Mode / Functions |
Fast Target Tracking™ (TT), AIS, Echo Trails |
| Weight |
Bracket mount: 2.2 kg 4.9 lb
Flush mount: 1.6 kg 3.5 lb |
ENVIRONMENT
| Temperature |
Antenna unit: -25°C to +55°C
Display unit: -15°C to +55°C |
| Waterproofing |
Antenna unit: IPX6
Display unit: IP56 |
POWER SUPPLY
| Power Supply / Consumption Current |
12-24 VDC, 3.2-1.6 A |
Screenshots
Equipment List
Standard
-
Display Unit
RDP-157
-
Antenna Unit
RSB-127-120
-
Antenna Cable
10/15/20/30 m specify when ordering
-
Power Cable
3.3 m
-
Spare Parts & Installation Materials
Interconnection Diagram
Technical Info
Interfacing and Installation
|
