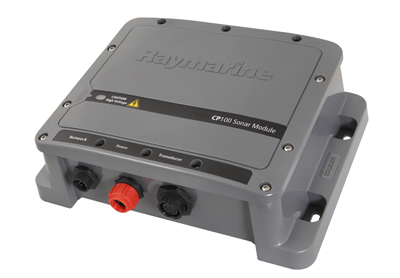

Raymarine CP100 CHIRP DownVision Sonar Module E70204

Raymarine CP100 CHIRP DownVision Sonar Module E70204




Availability: Usually ships the next business day
Raymarine CP100 CHIRP DownVision Sonar Module E70204
e70204List Price: $US 579.99Our Price: $US 539.00
Extended Warranty:

Visionality – See the real world below your boat using Raymarine CHIRP DownVision™ technology.



Following up on Raymarine’s award winning Dragonfly DownVision™ CHIRP sonar, the CP100 now brings this technology to Raymarine multifunction displays. Coupled with the intuitive LightHouse user interface, the CP100 can network with a, c, e, and gS series multifunction displays (v7.35 LightHouse software or higher required.




  • Photo-like imagery of bottom structure using Raymarine's CHIRP DownVision technology



  • DownVision™ depth performance to 600ft



  • Dual Channel CHIRP sonar; view high resolution CHIRP DownVision structure imagery and target fish with CHIRP sonar simultaneously.



  • Network the CP100 with Raymarine's latest generation multifunction displays. From the compact a Series to the flagship gS Series the CP100 brings underwater vision in resolutions up to 1280 x 800 pixels.

Underwater vision and amazing CHIRP technology



The CP100 network sonar module brings CHIRP DownVision technology to Raymarine's multifunction displays. CP100's CHIRP DownVision delivers a photo like view of the world beneath your boat, allowing you to image bottom structure with amazing detail and target fish simultaneously.

Unlike conventional imaging sonars that transmit a single frequency with each pulse, the CP100 uses CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse - the result is much higher resolution, photo-like sonar images.



April Screen Capture Winner   Nevada   Submarine wreck

Turtles seen swimming off Australia



Nevada wreck, Italy



Submarine Wreck



CP100 Applications



Freshwater Fishing

The CP100 is the ideal sonar solution for freshwater anglers. Combined with Raymarine e Series HybridTouch displays, the CP100 lets fresh anglers create a multi display network with HybridTouch control. Photo realistic CHIRP DownVision easily identifies the habitat of bass and other fresh water species.

Coastal Fishing

With depth performance up to 600ft, the CP100 is the perfect choice for coastal and bay fishing. Image wrecks with unmatched fidelity and use the second CHIRP channel to target bait and predators.

Raymarine CP100 Sonar Module Specifications



Product Number
E70204
Compatible with

New a Series, New e Series, new c Series and gS Series



Note: Ensure you have the latest software

Sonar type

CHIRP

Nominal supply voltage
12/24V DC Systems
Operating voltage range
10.2 - 32 V DC
Power consumption at full power
3 watts
Operating temperature range
0ºC to +55ºC
Storage temperature range
-30ºC to +70ºC
Waterproofing standard
IPX6 and IPX7
Connections
Power (power cable), transducer (9 pin connector), and Raynet network connector
Transducer info Max depth DownVision - 600ft, Traditional - 600ft.
Centre frequency DownVision 350 kHz, Traditional 200 kHz


CP100 DownVision sonar module Installation instructions 87194-1.EN Sonar\CP100 Installation Guides English
CP100 DownVision sonar module Mounting template 87193-1 Sonar\CP100 Templates Multi-lingual
CPT-100 DownVision transom transducer Installation instructions 88024-1.EN Sonar\CP100 Installation Guides English
CPT-70, CPT-80, CPT-110, CPT-120 DownVision transom transducer Installation instructions 88025-2.EN Sonar\CP100 Installation Guides English
CP100 Installation instruktioner 87194-1.DA Sonar\CP100 Installation Guides Danish
CP100 Installation 87194-1.DE Sonar\CP100 Installation Guides German
CP100 Installation instructions 87194-1.EL Sonar\CP100 Installation Guides Greek
CP100 Instrucciones de Instalación 87194-1.ES Sonar\CP100 Installation Guides Spanish
CP100 Asennusoh 87194-1.FI Sonar\CP100 Installation Guides Finnish
CP100 Notice d'installation 87194-1.FR Sonar\CP100 Installation Guides French
CP100 Istruzioni di installazione 87194-1.IT Sonar\CP100 Installation Guides Italian
CP100 Installation instructions 87194-1.JA Sonar\CP100 Installation Guides Japanese
CP100 Installatievoorschriften 87194-1.NL Sonar\CP100 Installation Guides Dutch
CP100 Installasjonsveiledning 87194-1.NO Sonar\CP100 Installation Guides Norwegian
CP100 Instruções de instalação 87194-1.pt-BR Sonar\CP100 Installation Guides Portuguese
CP100 Installation instruktion 87194-1.SV Sonar\CP100 Installation Guides Swedish
