Fish Smarter - Above
and Below the Waterline
Knowledge is power—and the Element™ CHIRP Sonar / GPS series from Raymarine
gives you the upper hand when hunting for fish and their habitat. Delivering the
sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz
sonar technology, turns up the resolution of DownVision, SideVision, and
RealVision 3D to a new level of precision imaging and fish identification,
letting you see structures, vegetation, and fish with amazing life-like clarity.
Bright and Rugged
Sunlight viewable displays with integrated GPS/GNSS receiver.
Superior HyperVision™
1.2 megahertz CHIRP sonar technology delivers much higher
resolution imaging compared to conventional side and down scanning sonars.
RealVision™ 3D Built-In
Accurately identify the location of ledges, channel beds, and
other contour changes.
Fast Quad-Core Processor
For instantaneous chart re-draw and sharp 3D imaging.
All-in-one Transducer - Select Model
Combines HyperVision, DownVision, SideVision, RealVision, and
conventional CHIRP sonar channels into one simple installation.
Intuitive Controls
An oversized waypoint key for marking your favorite
spots and three user-programmable keys.
Turn Up the Resolution with HyperVision™
- HyperVision uses super high frequencies (1.2 megahertz) and CHIRP
technology to bring a new level of precision imaging to DownVision,
SideVision and RealVision 3D
- 1.2 megahertz HyperVision mode is optimized for super high-resolution
imagery up to 100’ (30 meters)
- Switch to standard 350 kHz CHIRP sonar for longer range,
high-resolution imaging, and ranges up to 600’ (180 meters)
- Element’s advanced CHIRP sonar also operates in the high-frequency
200kHz range for fish targeting, high-speed bottom

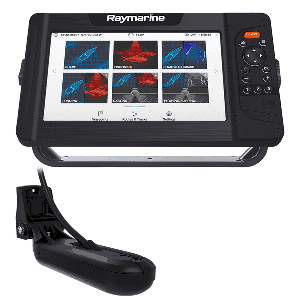

HyperVision™ CHIRP Transducers
The all-in-one design of Element's HyperVision transducers make them compact
and easy to install. Raymarine offers convenient transom mount and thru-hull
options to fit any boat.
New transducers:
- HV-100 All-in-one transom mount transducer
- HV-300TH All-in-one plastic thru-hull transducer
- HV-300THP All-in-one thru-hull transducer pair for deep v hulls
Connections
- Power and NMEA2000
- Transducer
-
Element HV Display Installation instructions 87360-1-EN.pdf
LightHouse Sport (Element) Basic Operation instructions
81384-1-EN.pdf
| MODEL |
Element 7 HV |
Element 9 HV |
Element 12 HV |
|
GENERAL SPECIFICATIONS
| Display Size |
7.0" Optically Bonded
LCD |
9.0" Optically Bonded
LCD |
12.0" Optically Bonded
LCD |
| Display Resolution |
800 x 480 WVGA |
1280 x 800 WXGA |
| Display Type |
Non-Touch |
| Brightness |
1,500 nits |
| Viewing Angle |
Top 50° / Bottom 60° /
Left 70° / Right 70° |
Top 89° / Bottom 89° / Left 89° /
Right 89° |
PHYSICAL
Overall Dimensions
W x H x D |
240 x 135 62mm
(9.5 x 5.3 x 2.4 inches) |
287 x 161 x 62mm
(11.3 x 6.3 x 2.4 inches) |
357 x 215 x 62mm
(14.1 x 8.5 x 2.4 inches) |
|
| Product Weight (lbs) |
3.0 |
5.0 |
6.5 |
|
| Water Ingress Protection |
IPx6 and IPx7 |
|
| Operating Temperature Range |
-25°C to + 55°C (-13°F
to 131°F) |
| Storage temperature range |
-30°C to +70°C (-22°F to
158°F) |
POWER
| Voltage |
12V DC (8V
to 16V DC) |
Power Consumption
(max 12V DC) |
15 Watts |
20 Watts |
25 Watts |
SENSORS
| GNSS / GPS |
Built-in
GNSS Receiver: GPS/GLONASS |
| Sonar Type (Built-in) |
Built-in CHIRP Sonar,
DownVision (Standard and Hyper), SideVision (Standard and Hyper),
RealVision™ 3D (Standard and Hyper) |
| Sonar Connection |
15 pin HyperVision™ type
connector |
| Sonar Depth |
CHIRP Sonar = 274m (900
feet)
DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m
(100 feet)
SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100
feet)
RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper =
30m (100 feet) |
NETWORKING
| Ethernet |
N/A |
| NMEA0183 |
N/A |
| NMEA2000 |
1 x NMEA2000 port (DeviceNet
microC) |
| Supported NMEA2000 Networking |
INPUT: NMEA2000
Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max
4) | Heading Sensor (for Chart Stabilization)
OUTPUT: GPS (for VHF Distress and DSC) |
| SeaTalkng |
Requires A06045
DeviceNet female (F) adapter cable - 400mm |
| USB |
N/A |
| Wi-Fi |
WiFi - 802.11 b / g / n |
| BlueTooth |
Bluetooth 4.0 + Low
Energy + Power Class 1.5 |
OTHER SPECIFICATIONS
| Cartography |
Raymarine LightHouse
NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with
all charts listed on Raymarine Chart Store. |
| Tides & Currents |
Requires LightHouse LNC2, Navionics
or C-MAP |
| Waypoint / Routes / Tracks |
10,000 wpts / 200 wpt groups / 150
rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Internal Memory |
8GB Solid State |
| External Memory |
1 x microSD slots - microSDHC max
32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD
native format of exFAT must be reformatted to NTFS or FAT32) |
ELEMENT WHAT'S IN THE BOX
|
ELEMENT SONAR / GPS |
| 1 |
Trunnion bracket with mounting hardware |
|
|
| 2 |
Surface mount kit with mounting hardware |
|
|
| 3 |
Sun cover |
|
|
| 4 |
Power / NMEA2000 1.5m cable |
|
|
| 5 |
Documentation pack |
|
|
| 6 |
Cartography (optional) |
|
|
|
ELEMENT SONAR / GPS WITH TRANSDUCER |
| 1 |
Trunnion bracket with mounting hardware |
|
|
| 2 |
Surface mount kit with mounting hardware |
|
|
| 3 |
Sun cover |
|
|
| 4 |
Power / NMEA2000 1.5m cable |
|
|
| 5 |
Documentation pack |
|
|
| 6 |
Cartography (optional) |
|
|
| 7 |
HV-100 Transucer with 6m cable |
|
|
| 8 |
Transom bracket with mounting hardware |
|
|
| 9 |
P-clips with mounting hardware (x5) |
|
|
| 10 |
Escutcheon plate with mounting hardware |
